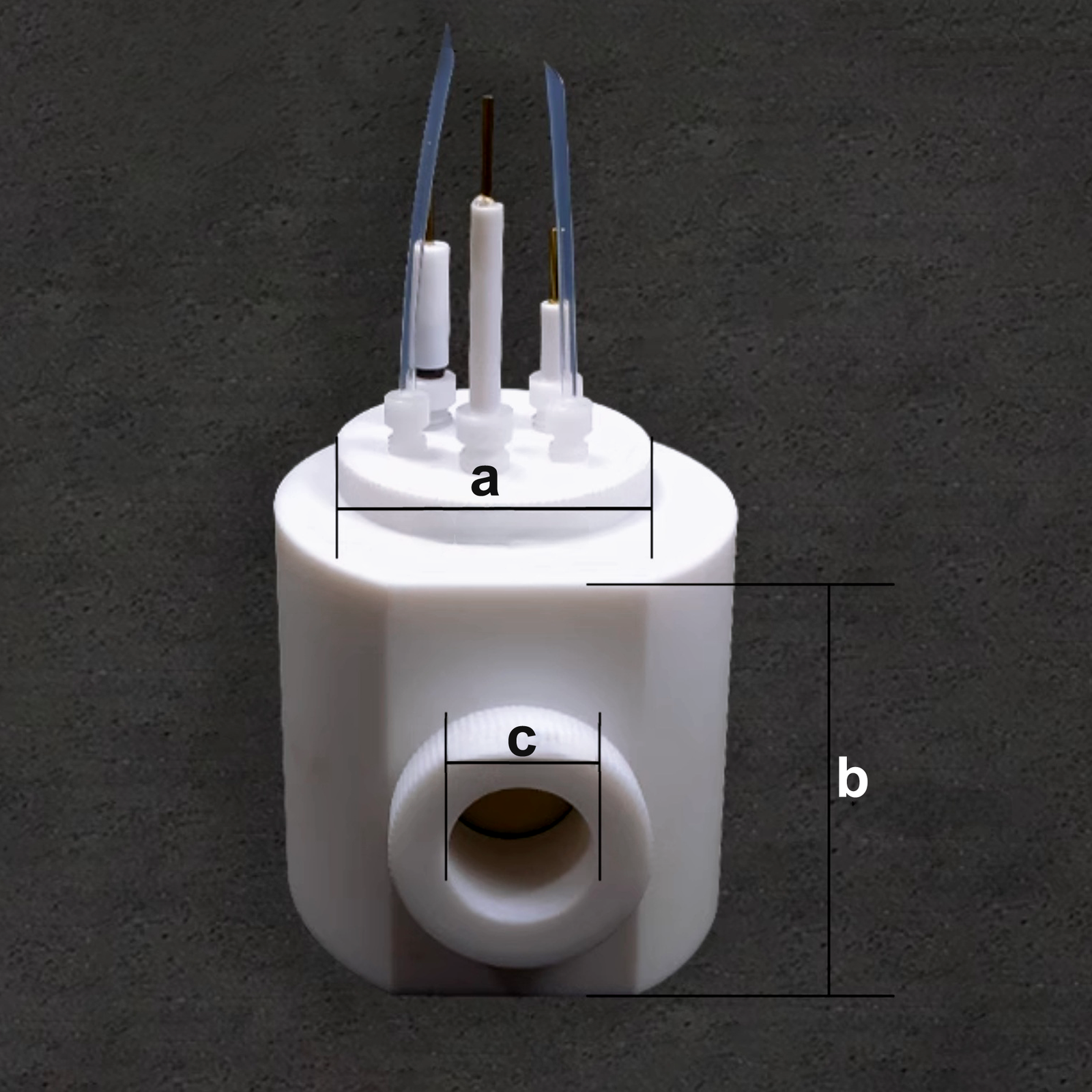

PTFE Optical Electrochemical Cell, Sealed/Unsealed

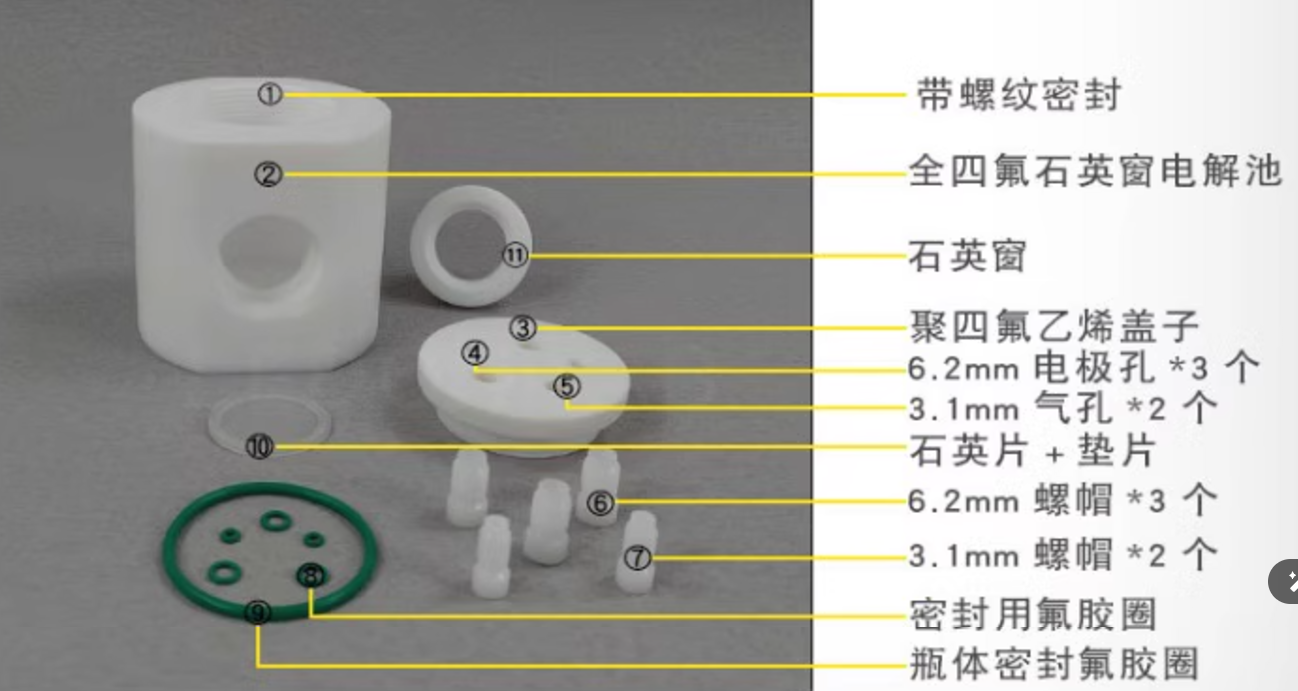

PTFE Optical Electrochemical Cell, Sealed/Unsealed – view 2

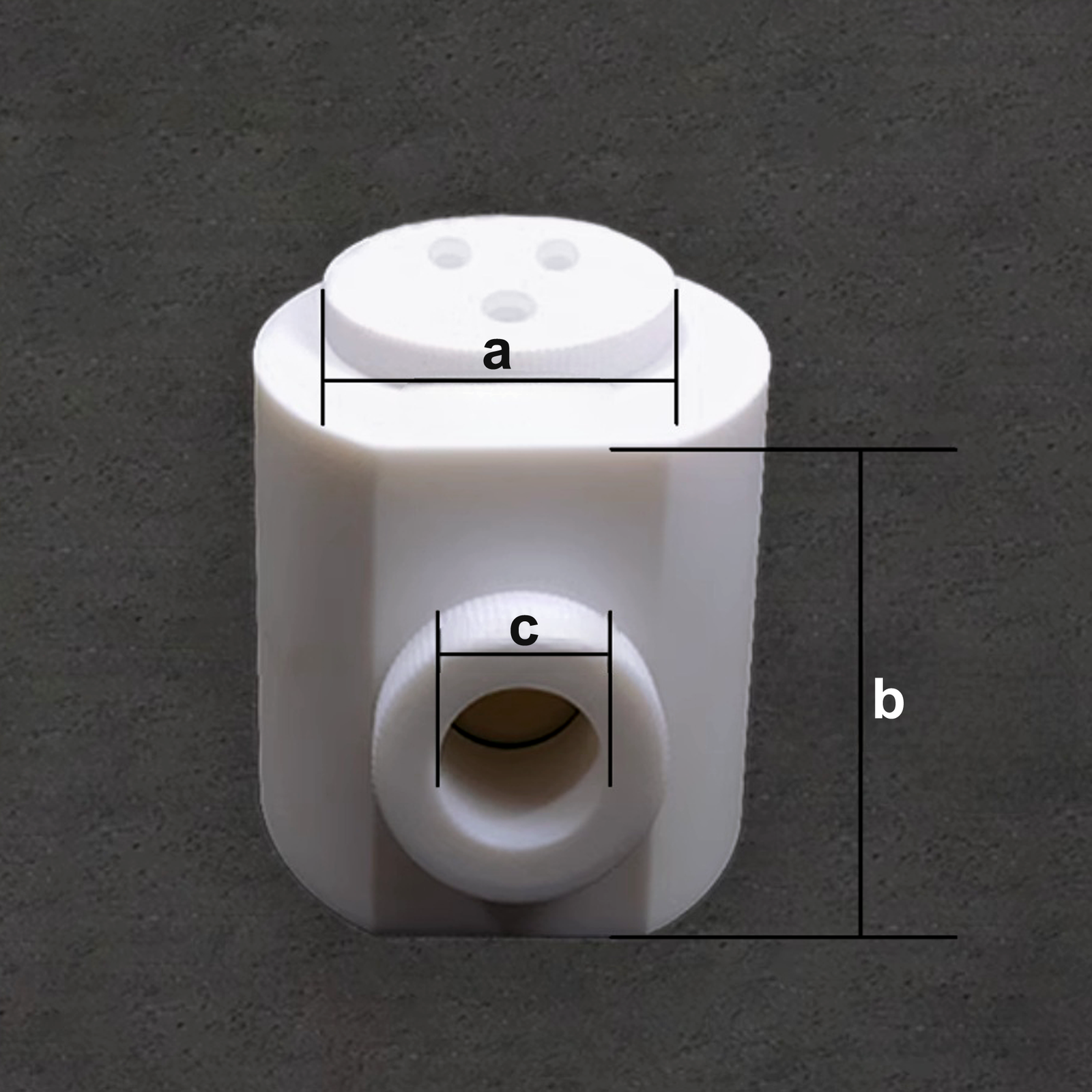

PTFE Optical Electrochemical Cell, Sealed/Unsealed – view 3
Optical Electrochemical Cell

PTFE Optical Electrochemical Cell, Sealed/Unsealed

Price range: £425.00 through £950.00

Select an option to request a quote

Flat rate shipping £15

    A one-piece PTFE optical electrochemical cell for coupled optical and electrochemical measurements, offered in sealed and unsealed configurations. The inert PTFE body resists aggressive electrolytes and organic solvents while presenting defined ports for the working, counter and reference electrodes.

    Key Features

    • Solid PTFE construction for broad chemical compatibility
    • Sealed build adds two smaller ports for controlled-atmosphere work
    • Rated from room temperature to 60°C

    Specifications

    Material PTFE
    Temperature Room temperature to 60°C
    Sealed ports Ф6.2mm hole x3; Ф3.1mm hole x 2
    Unsealed ports Ф6.2mm hole x3
    Volumes 50mL, 100mL, 150mL, 200mL, 250mL, 300mL, 500mL

    Suited to optical monitoring of electrode reactions where a solvent-resistant cell body is preferred over glass.
