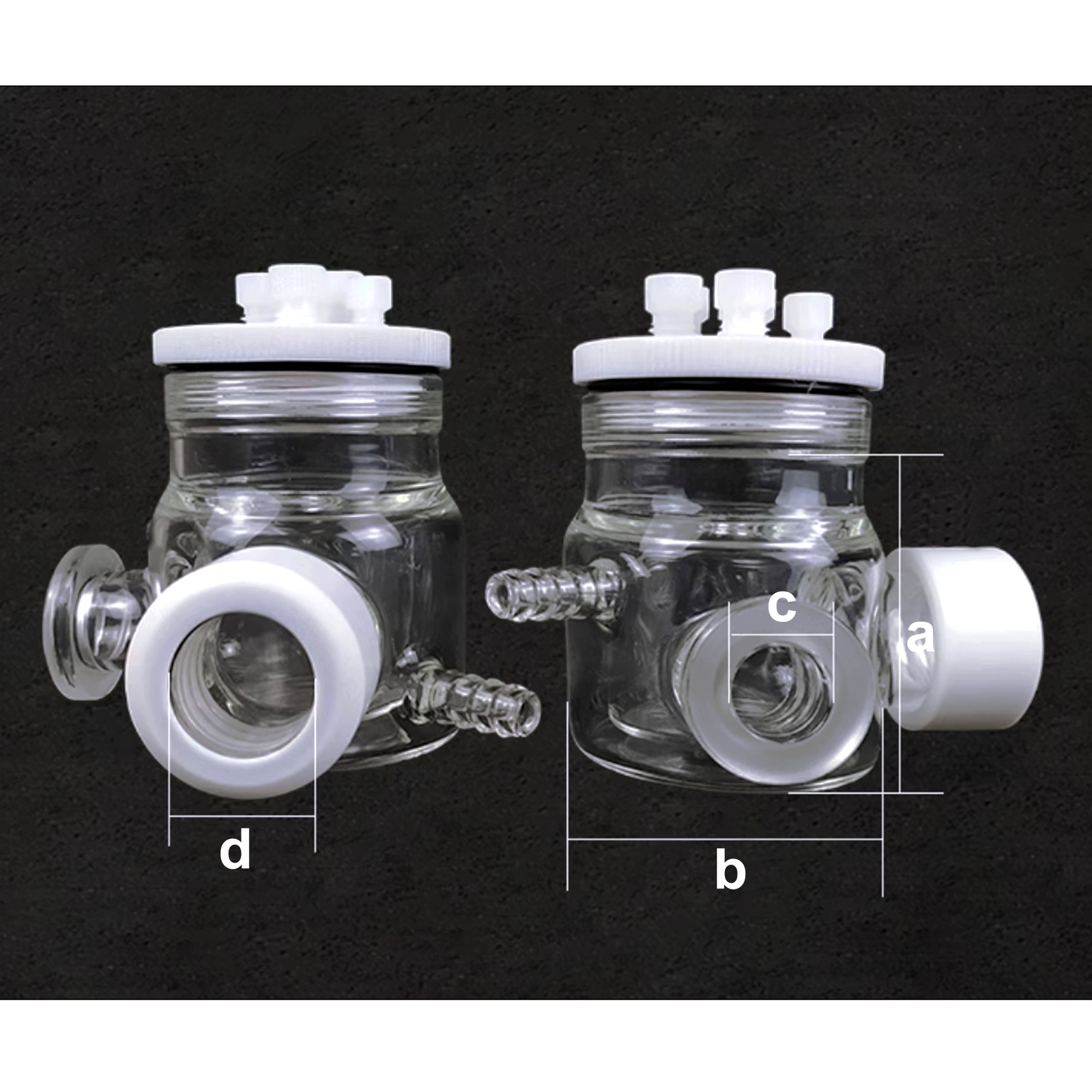

H Type Optical Electrochemical Cell with Water Bath, Sealed/Unsealed
Optical Electrochemical Cell

H Type Optical Electrochemical Cell with Water Bath, Sealed/Unsealed

Price range: £575.00 through £1,050.00

Select an option to request a quote

Flat rate shipping £15

    An H-type optical electrochemical cell with an integral water bath, joining two borosilicate glass compartments across a membrane for divided spectroelectrochemical work under temperature control. Offered in sealed and unsealed configurations.

    Key Features

    • Two-compartment H geometry separated by a membrane
    • Integral water bath for temperature regulation
    • Sealed build adds two smaller ports for controlled-atmosphere work
    • Rated from room temperature to 60°C

    Specifications

    Materials Borosilicate glass and PTFE
    Temperature Room temperature to 60°C
    Sealed ports Ф6.2mm hole x3; Ф3.1mm hole x 2
    Unsealed ports Ф6.2mm hole x3
    Membrane area Ф15mm
    Volumes 50mL, 100mL, 150mL, 200mL, 250mL, 300mL, 500mL

    Used where working and counter compartments must be separated while optical access is maintained.
