Optical Electrochemical Cell, Sealed/Unsealed
Optical Electrochemical Cell

Optical Electrochemical Cell, Sealed/Unsealed

Price range: £361.00 through £800.00

Select an option to request a quote

Flat rate shipping £15

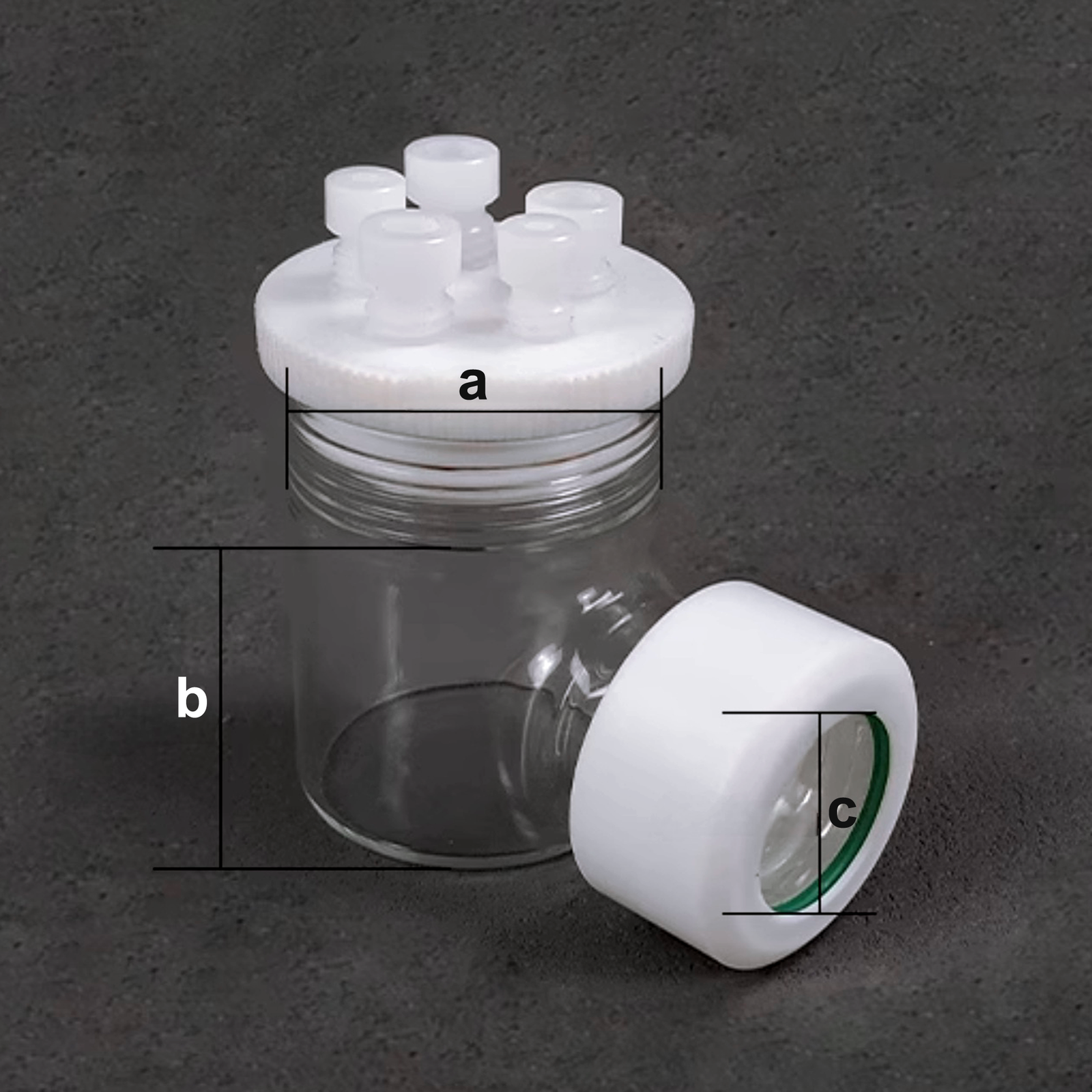

    An optical electrochemical cell in borosilicate glass with a PTFE lid, built for spectroelectrochemical work in sealed and unsealed configurations. The glass body provides optical access for in situ measurement while the PTFE closure carries the electrode ports.

    Key Features

    • Borosilicate glass body with PTFE closure
    • Sealed build adds two smaller ports for controlled-atmosphere work
    • Rated from room temperature to 60°C

    Specifications

    Materials Borosilicate glass and PTFE
    Temperature Room temperature to 60°C
    Sealed ports Ф6.2mm hole x3; Ф3.1mm hole x 2
    Unsealed ports Ф6.2mm hole x3
    Volumes 50mL, 100mL, 150mL, 200mL, 250mL, 300mL, 500mL

    Used for UV-Vis and other optical monitoring of electrode processes in three-electrode configurations.
