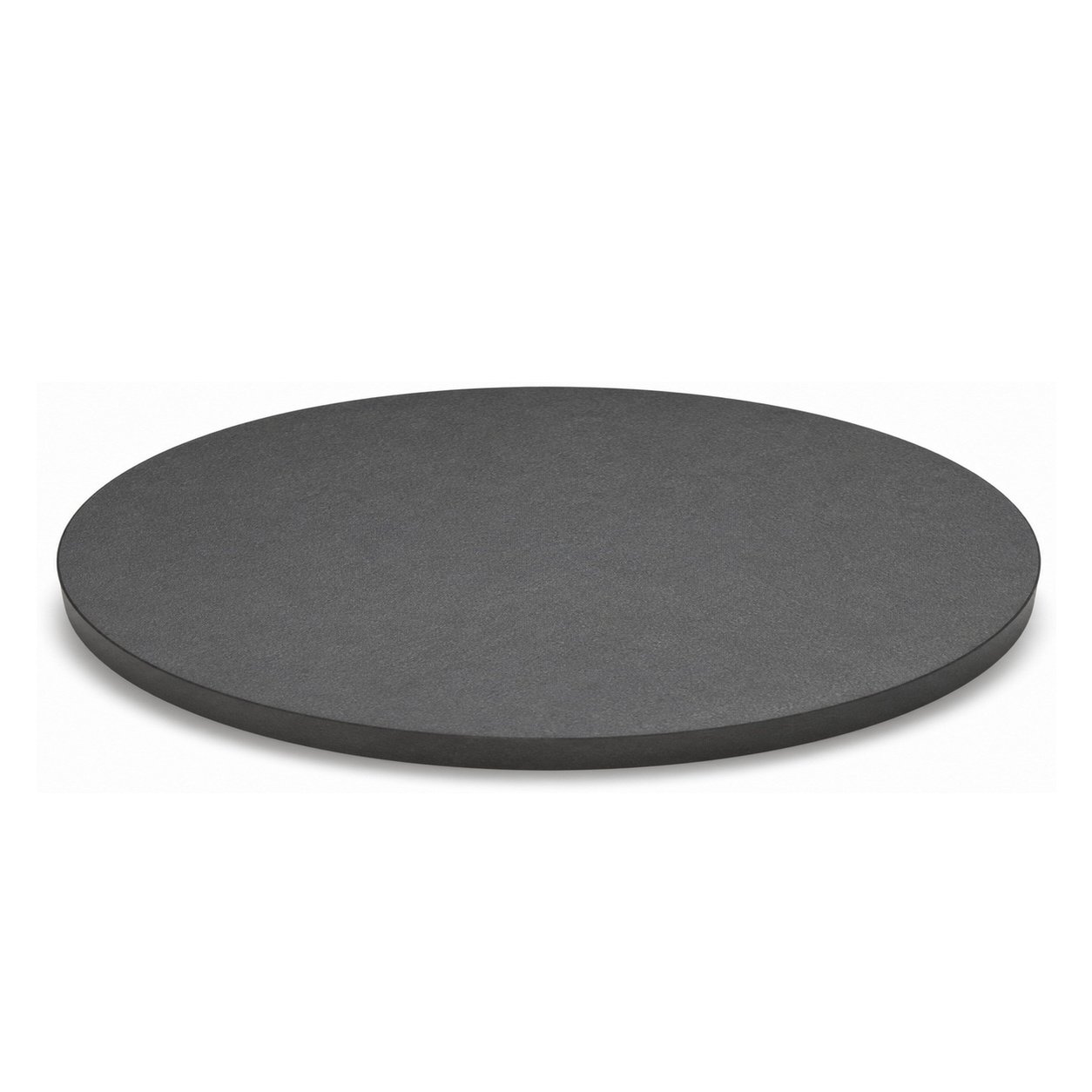

Niobium Nitride (NbN) Sputtering Target, 99.9% (3N) Purity, Circular

SKU: NBN-TAR-3N-CIRC

Price range: £770.99 through £1,713.99

Dispatch normally within 1 business day; carrier transit normally 6–8 business days (7–9 business days in total). See Shipping Policy and Returns Policy.

For research and laboratory use only. Not for medical, diagnostic or household use.

Select an option to request a quote

Niobium Nitride (NbN) Sputtering Target, 99.9% (3N) Purity, Circular

Niobium Nitride (NbN) sputtering target is a nitride ceramic PVD source material for magnetron sputtering, ion sputtering, and laboratory thin-film deposition. It is supplied in circular target formats for research, development, and small-batch process work where controlled handling, stated dimensions, and material identity are specified.

Features

Source Material
Supplied at 99.9% (3N) purity for thin-film workflows that require controlled source composition for deposition work.

Circular Target Formats
Available in circular diameters including 1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm), 4 inch diameter (101.6 mm), 3.15 inch diameter (80 mm), 3.94 inch diameter (100 mm). Thickness options include 3 mm thick, depending on the selected diameter and target configuration.

Controlled Processing and Inspection
Target preparation may include material selection, forming, heat treatment, precision machining, dimensional inspection, surface finishing, cleaning, and final inspection. Composition and impurity control may be supported by analytical methods such as ICP, GDMS, carbon/sulfur analysis, oxygen/nitrogen analysis, and metallographic inspection where appropriate.

Controlled Handling and Packaging
Targets are prepared for deposition use with controlled surface handling and protective packaging. Store sealed in a dry environment, handle with gloves, and avoid direct contact with oil, dust, moisture, or other surface contamination before installation.

Mounting Configuration Note
Selected configurations for this product include mounting options such as 3 mm + 2 mm Cu backing; 3 mm + 2 mm Cu backing + magnetic shim; 3 mm + 3 mm Cu backing; 3 mm + 3 mm Cu backing + magnetic shim. Choose the plain target, Cu-backed target, and/or magnetic-shim configuration according to the sputtering source geometry and cathode requirements.

Technical Specifications

Material: Niobium Nitride (NbN)
Purity: 99.9% (3N)
Form: Circular sputtering target
Available Diameters: 1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm), 4 inch diameter (101.6 mm), 3.15 inch diameter (80 mm), 3.94 inch diameter (100 mm)
Available Thicknesses: 3 mm thick
Compatible Equipment: Single-target sputtering systems, multi-target sputtering systems, ion sputtering systems, and magnetron sputtering equipment
Packaging: Protective target packaging for laboratory shipment and storage

Common Applications

– superconducting thin-film research; SNSPD and Josephson junction studies; hard nitride coating development; microfabrication process development
– Academic, industrial, and pilot-scale thin-film process development

Specifications

MaterialNiobium Nitride (NbN)
Chemical formulaNbN
Purity99.9% (3N)
FormCircular sputtering target
Available diameters1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm), 4 inch diameter (101.6 mm), 3.15 inch diameter (80 mm), 3.94 inch diameter (100 mm)
Available thicknesses3 mm thick

Typical properties of the bulk material (literature values)

CAS number24621-21-4
Molar mass106.913 g/mol
Density8.4 g/cm³

Sources: PubChem (U.S. National Library of Medicine), NIST (National Institute of Standards and Technology) and published reference data (handbooks and supplier data sheets). Reference values for the bulk substance, not test results of a specific lot.

Option 1

99.9% (3N)

Option 2

1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm), 3.15 inch diameter (80 mm), 3.94 inch diameter (100 mm), 4 inch diameter (101.6 mm)

Option 3

3 mm + 2 mm Cu backing, 3 mm + 2 mm Cu backing + magnetic shim, 3 mm + 3 mm Cu backing, 3 mm + 3 mm Cu backing + magnetic shim, 3 mm thick
