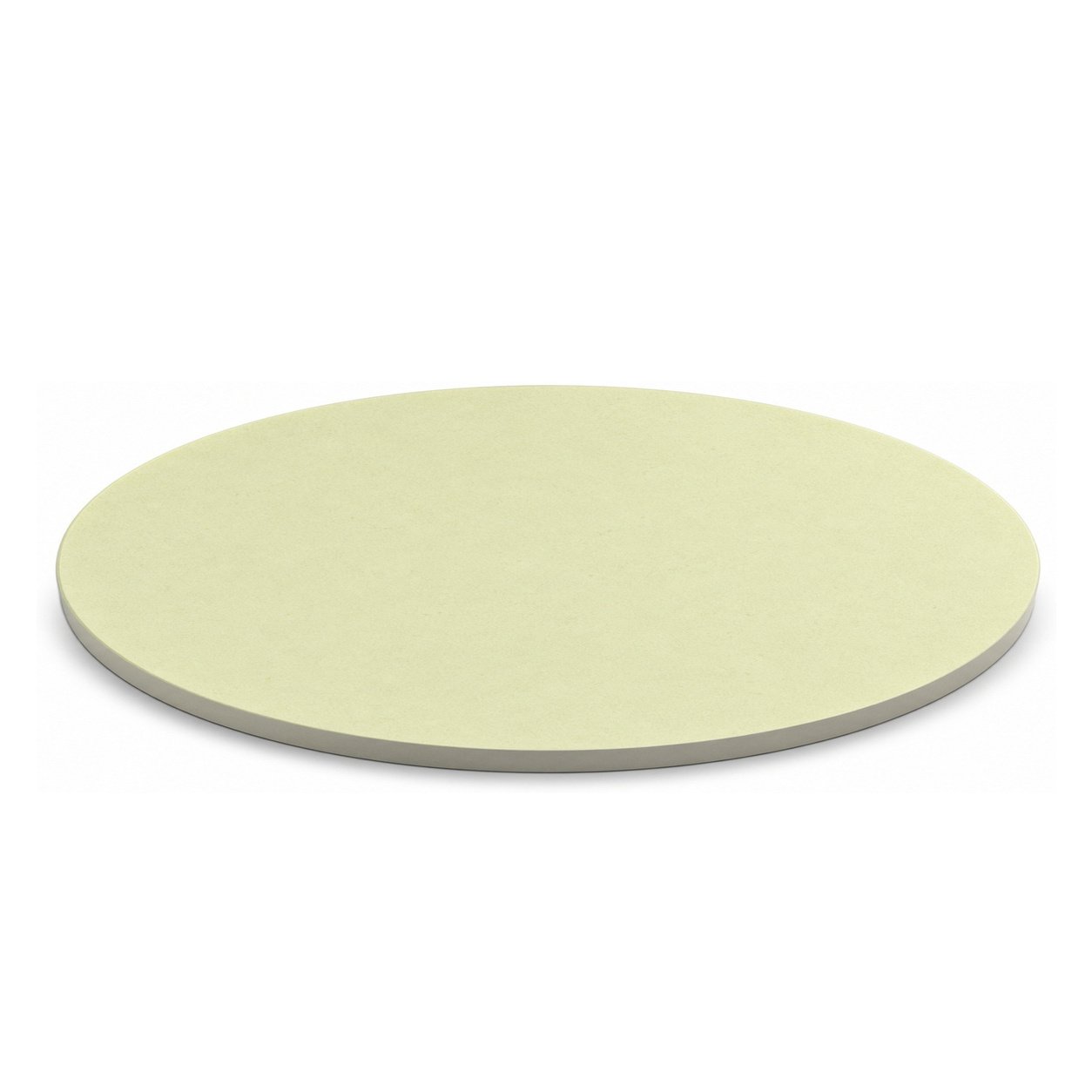

Gallium Nitride (GaN) Sputtering Target, 99.99% (4N) Purity, Circular

SKU: GAN-TAR-4N-CIRC

Price upon request

Select an option to request a quote

Gallium Nitride (GaN) Sputtering Target, 99.99% (4N) Purity, Circular

Gallium Nitride (GaN) sputtering target is a compound semiconductor PVD source material for magnetron sputtering, ion sputtering, and laboratory thin-film deposition. It is supplied in circular target formats for research, development, and small-batch process work where controlled handling, stated dimensions, and material identity are specified.

Features

Source Material
Supplied at 99.99% (4N) purity for thin-film workflows that require controlled source composition for deposition work.

Circular Target Formats
Available in circular diameters including 1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm). Thickness options include 3 mm thick, depending on the selected diameter and target configuration.

Controlled Processing and Inspection
Target preparation may include material selection, forming, heat treatment, precision machining, dimensional inspection, surface finishing, cleaning, and final inspection. Composition and impurity control may be supported by analytical methods such as ICP, GDMS, carbon/sulfur analysis, oxygen/nitrogen analysis, and metallographic inspection where appropriate.

Controlled Handling and Packaging
Targets are prepared for deposition use with controlled surface handling and protective packaging. Store sealed in a dry environment, handle with gloves, and avoid direct contact with oil, dust, moisture, or other surface contamination before installation.

Mounting Configuration Note
Selected configurations for this product include mounting options such as 3 mm + 2 mm Cu backing; 3 mm + 2 mm Cu backing + magnetic shim; 3 mm + 3 mm Cu backing; 3 mm + 3 mm Cu backing + magnetic shim. Choose the plain target, Cu-backed target, and/or magnetic-shim configuration according to the sputtering source geometry and cathode requirements.

Technical Specifications

Material: Gallium Nitride (GaN)
Purity: 99.99% (4N)
Form: Circular sputtering target
Available Diameters: 1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm)
Available Thicknesses: 3 mm thick
Compatible Equipment: Single-target sputtering systems, multi-target sputtering systems, ion sputtering systems, and magnetron sputtering equipment
Packaging: Protective target packaging for laboratory shipment and storage

Common Applications

– III-nitride semiconductor research; optoelectronic and LED material studies; RF and power-device thin-film development; wide-bandgap semiconductor coatings
– Academic, industrial, and pilot-scale thin-film process development

Specifications

MaterialGallium Nitride (GaN)
Chemical formulaGaN
Purity99.99% (4N)
FormCircular sputtering target
Available diameters1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm)
Available thicknesses3 mm thick

Typical properties of the bulk material (literature values)

CAS number25617-97-4
Molar mass83.730 g/mol
Density6.095 g/cm³

Sources: PubChem (U.S. National Library of Medicine) and NIST (National Institute of Standards and Technology). Reference values for the bulk substance, not test results of a specific lot.

Option 1

99.99% (4N)

Option 2

1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm)

Option 3

3 mm + 2 mm Cu backing, 3 mm + 2 mm Cu backing + magnetic shim, 3 mm + 3 mm Cu backing, 3 mm + 3 mm Cu backing + magnetic shim, 3 mm thick
