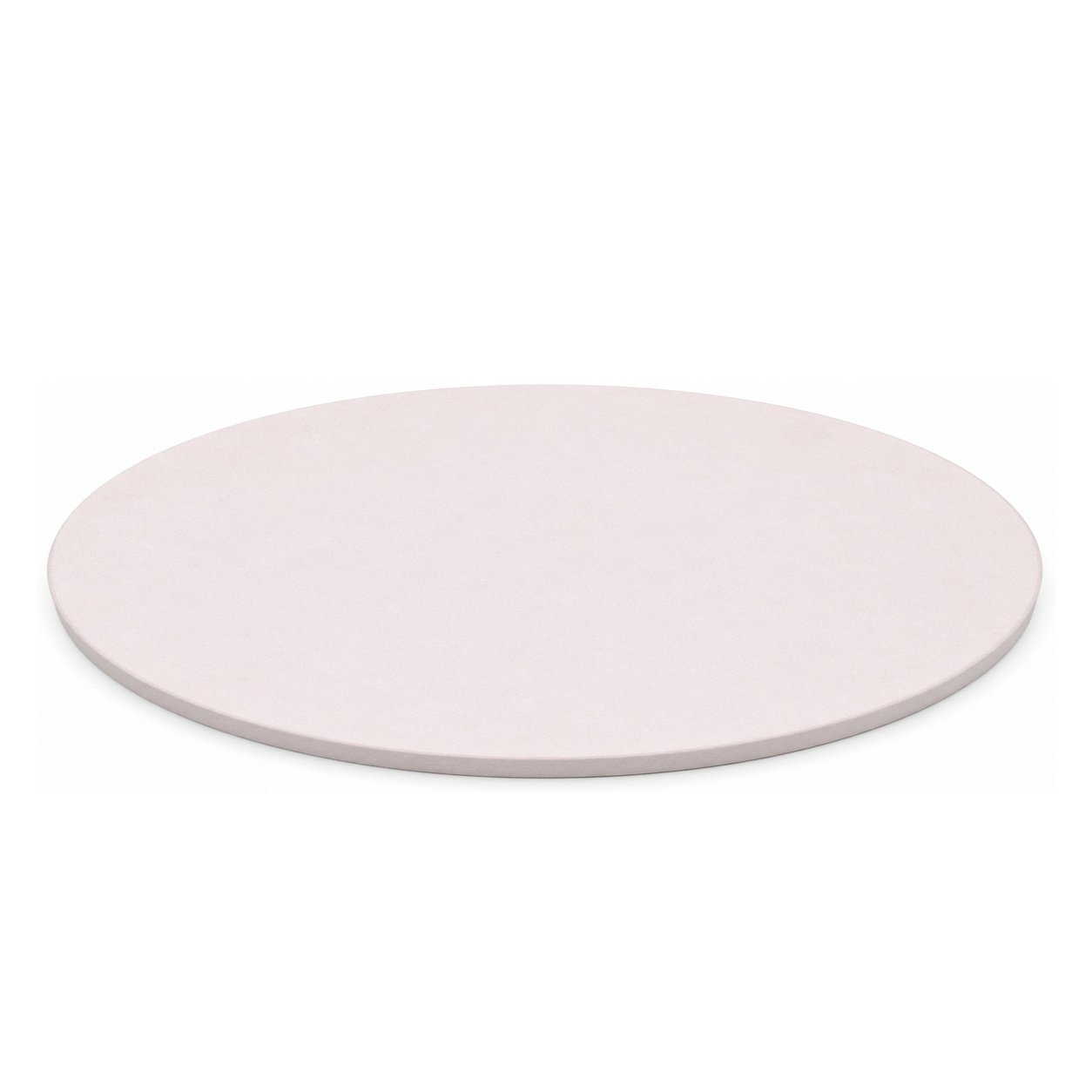

Erbium Oxide (Er₂O₃) Sputtering Target, 99.99% Purity, Circular (Price Upon Request)

SKU: ER2O3-TAR-4N-CIRC

This product is temporarily unavailable for sale.

This product is temporarily unavailable for sale.

Erbium Oxide (Er₂O₃) Sputtering Target, 99.99% Purity, Circular (Price Upon Request)

Nanostore’s Erbium Oxide (Er₂O₃) sputtering target is a 99.99% purity rare-earth oxide ceramic PVD source material for magnetron sputtering, ion sputtering, and laboratory thin-film deposition. It is supplied in circular target formats for research, development, and small-batch process work. Pricing for this material is provided upon request because final cost depends on current material market conditions and selected dimensions.

Key Features

Source Material
Supplied as 99.99% Purity for thin-film workflows.

Circular Target Formats
Available in circular diameters including 1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm), 3.15 inch diameter (80 mm), 4 inch diameter (101.6 mm), 3.94 inch diameter (100 mm). Thickness and mounting options include 3 mm thick, 3 mm + 2 mm Cu backing, 3 mm + 3 mm Cu backing, depending on selected configuration.

Controlled Processing and Inspection
Target preparation may include material selection, forming, heat treatment, machining, dimensional inspection, surface finishing, cleaning, and final quality review. Composition and impurity control may be supported by analytical methods such as ICP, GDMS, carbon/sulfur analysis, oxygen/nitrogen analysis, and metallographic inspection where appropriate.

Clean Handling and Packaging
Targets are prepared for deposition use with clean surface handling and protective packaging. Store sealed in a dry environment, handle with clean gloves, and avoid direct contact with oil, dust, moisture, or other surface contamination before installation.

Mounting Configuration Note
Selected configurations for this product include mounting options such as 3 mm + 2 mm Cu backing; 3 mm + 3 mm Cu backing. Choose the plain target, Cu-backed target, and/or magnetic-shim configuration according to the sputtering source geometry and cathode requirements.

Technical Specifications

Material: Erbium Oxide (Er₂O₃)
Purity / Composition: 99.99% Purity
Form: Circular sputtering target
Available Diameters: 1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm), 3.15 inch diameter (80 mm), 4 inch diameter (101.6 mm), 3.94 inch diameter (100 mm)
Available Thickness / Backing Options: 3 mm thick, 3 mm + 2 mm Cu backing, 3 mm + 3 mm Cu backing
Equipment: Single-target sputtering systems, multi-target sputtering systems, ion sputtering systems, and magnetron sputtering equipment
Packaging: Protective target packaging for laboratory shipment and storage

Common Applications

– rare-earth oxide thin-film research; optical coating and phosphor material studies; dielectric and functional oxide films; photonic material development
– Academic, industrial, and pilot-scale thin-film process development

Specifications

MaterialErbium Oxide (Er₂O₃)
Chemical formulaEr₂O₃
Purity99.99%
Available diameters1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm), 3.15 inch diameter (80 mm), 4 inch diameter (101.6 mm), 3.94 inch diameter (100 mm)
Available thickness / backing3 mm thick, 3 mm + 2 mm Cu backing, 3 mm + 3 mm Cu backing

Typical properties of the bulk material (literature values)

Molar mass382.52 g/mol
Density8.64 g/cm³

Sources: PubChem (U.S. National Library of Medicine), NIST (National Institute of Standards and Technology) and published reference data (handbooks and supplier data sheets). Reference values for the bulk substance, not test results of a specific lot.

Option 1

99.99% (4N)

Option 2

1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm), 3.15 inch diameter (80 mm), 3.94 inch diameter (100 mm), 4 inch diameter (101.6 mm)

Option 3

3 mm + 2 mm Cu backing, 3 mm + 3 mm Cu backing, 3 mm thick
