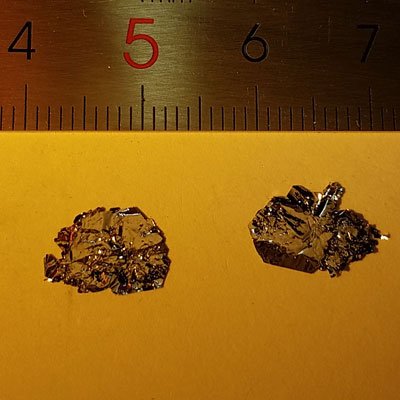

Mo-Doped WSe₂ Crystals (25% Molybdenum Doping)

Price range: £499.99 through £899.99

Select an option to request a quote

Flat rate shipping £15

    Mo-Doped WSe₂ Crystals (25% Molybdenum Doping)

    Mo-doped WSe₂ is a layered transition metal dichalcogenide (TMDC) with a van der Waals structure, combining the intrinsic properties of WSe₂ with enhanced functionality from molybdenum doping. The 25% Mo doping introduces bandgap tunability, improved charge carrier dynamics, and unique optical and electronic properties, making it ideal for applications in optoelectronics, quantum materials research, and energy technologies.

    Sample Size Options:
    Crystals larger than 10 mm²
    Crystals larger than 25 mm²
    Crystals larger than 100 mm²

    Material Properties:
    Layered van der Waals Structure: Facilitates exfoliation into thin layers for advanced research and device fabrication.
    Bandgap Tunability: Molybdenum doping adjusts electronic and optical properties for specific applications.
    High Optical Absorption: Strong absorption in the visible-to-infrared range.
    Enhanced Carrier Mobility: Improved charge transport dynamics due to Mo doping.

    Crystal Structure:
    Type: Hexagonal layered structure
    Features: Cleavable layers ideal for thin-film fabrication and nanoscale research.

    Degree of Exfoliation:
    Ease of Use: Readily exfoliates into monolayers or few-layer sheets for advanced 2D material studies.

    Other Characteristics:
    Optoelectronic Potential: Enhanced photoluminescence and carrier mobility for high-performance devices. Quantum

    Applications: Suitable for studying doping effects on topological states and quantum transport. Energy

    Applications: Promising for hydrogen evolution reactions (HER) and other catalytic processes.

    Applications:
    Optoelectronics:
    Ideal for photodetectors, light-emitting diodes, and photovoltaic devices. Quantum Materials Research:
    Enables exploration of doping-induced quantum phenomena and electronic behavior.
    2D Material Studies:
    Perfect for integration into van der Waals heterostructures and thin-film devices. Energy

    Applications:
    Promising for catalysis, thermoelectric devices, and hydrogen evolution reactions (HER).
    Sensors: High sensitivity to environmental and chemical changes, making it ideal for advanced sensing technologies.

    Option 1

    > 10 mm², > 100 mm², > 25 mm²
