Aluminum Laminated Film

Price range: £83.99 through £191.99

Select an option to request a quote

Flat rate shipping £15

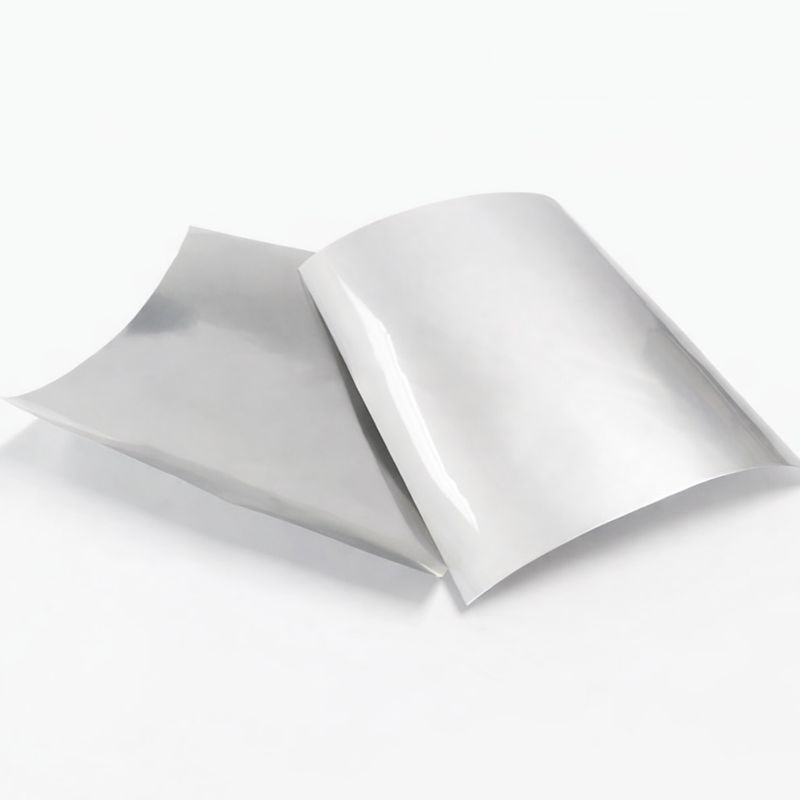

    High-Performance Aluminum Laminated Film (Shodex Material)

    Overview:
    This aluminum laminated film is specifically designed for pouch cell case applications, offering excellent electrical insulation and chemical resistance.
    – Material: Shodex Aluminum Laminated Film.
    – Surface Quality: Features a mat finish.
    – Quality Standards: Strict inspection for pinholes (applicable aluminum foil standards), impurities (<=1 mm diameter), and fish eyes (<=2 mm clear, <=1 mm coloured). Key Specifications (Single-Sided Reference): Product Dimensions & Composition: – Thickness: 113 µm – Width: 400 mm – Length: 7.5 m – Layer Structure: – Polyamide (JIS Z1714): 0.025 mm (+-0.0025 mm) – Adhesive (Polyester-polyurethane): 4-5 g/m² – Aluminum foil (JIS A8079, A8021): 0.040 mm (+-0.004 mm) – Adhesive (Urethane-free Adhesive): 2-3 g/m² – Polypropylene: 0.040 mm (+-0.004 mm) Technical Performance: – Molding Depth: >=5.0 mm
    – Electrical Insulating: Good
    – Hot Sealing Condition: 180-190°C
    – Moisture Vapor / O2 Transmission Rate: 200ppm / 5 years
    – Laminate Strength:
    – Nylon/Al: >2N/15 mm
    – Al/CPP: >5N/15 mm
    – Heat Seal Strength: >29.4N/15 mm (at 200°C x 0.2Mpa x 2 sec)
    – Solvent Retention: <5mg/m²
    – Slip Factor (CPP/CPP): <1.0

    Option 1

    100 mm width x 160 mm length x 113 um thickness, 10 sheets per pack, 115 mm width x 100 mm length x 113 um thickness, 100 sheets per pack, 200 mm width x 120 mm length x 113 um thickness, 10 sheets per pack, 210 mm width x 100 mm length x 113 um thickness, 50 sheets per pack, 240 mm width x 200 mm length x 113 um thickness, 10 sheets per pack, 400 mm width x 300 mm length x 113 um thickness, 10 sheets per pack, 400 mm width x 500 mm length x 113 um thickness, 10 sheets per pack
