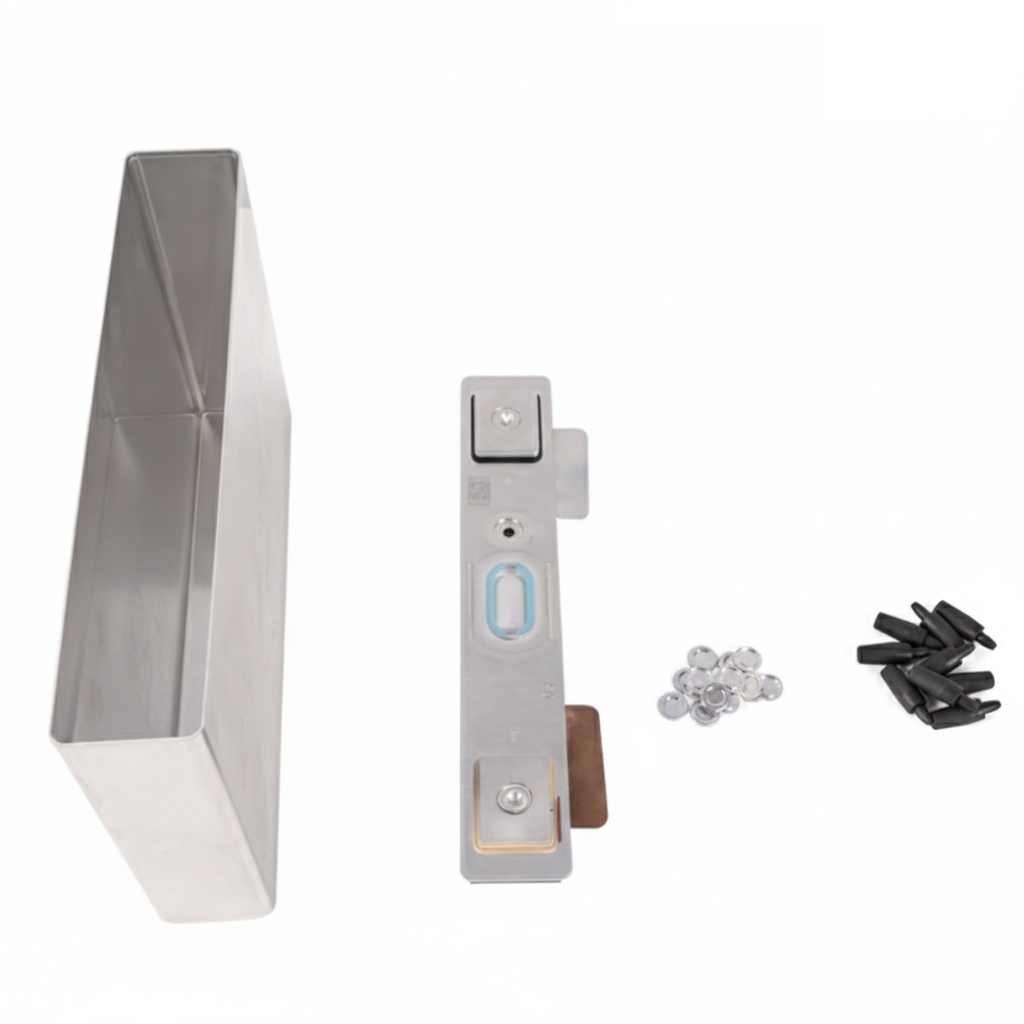

26148 Prismatic Aluminum Battery Case Set
Overview:
Finished Battery Dimensions: 148 mm Length x 101 mm Height x 27 mm Width x 0.7 mm Thickness.
Key Specifications – Case Dimensions:
* Length: 148 ± 0.5 mm
* Width: 27 ± 0.5 mm
* Height: 101 ± 0.5 mm
* Thickness: 0.7 ± 0.1 mm
Key Specifications – Lid Dimensions:
* Positive Tab: 30 mm x 10 mm
* Negative Tab: 31 mm x 10 mm
* Pole Spacing (Terminal Distance): 115 ± 0.5 mm
* Sealing Nail Diameter: 8 ± 0.5 mm
Packaging Content:
* Includes: 26148 Aluminum Case / 26148 Lid / 26148 Case Set
