D-EL35H DNP Aluminum Laminated Film
Battery Case

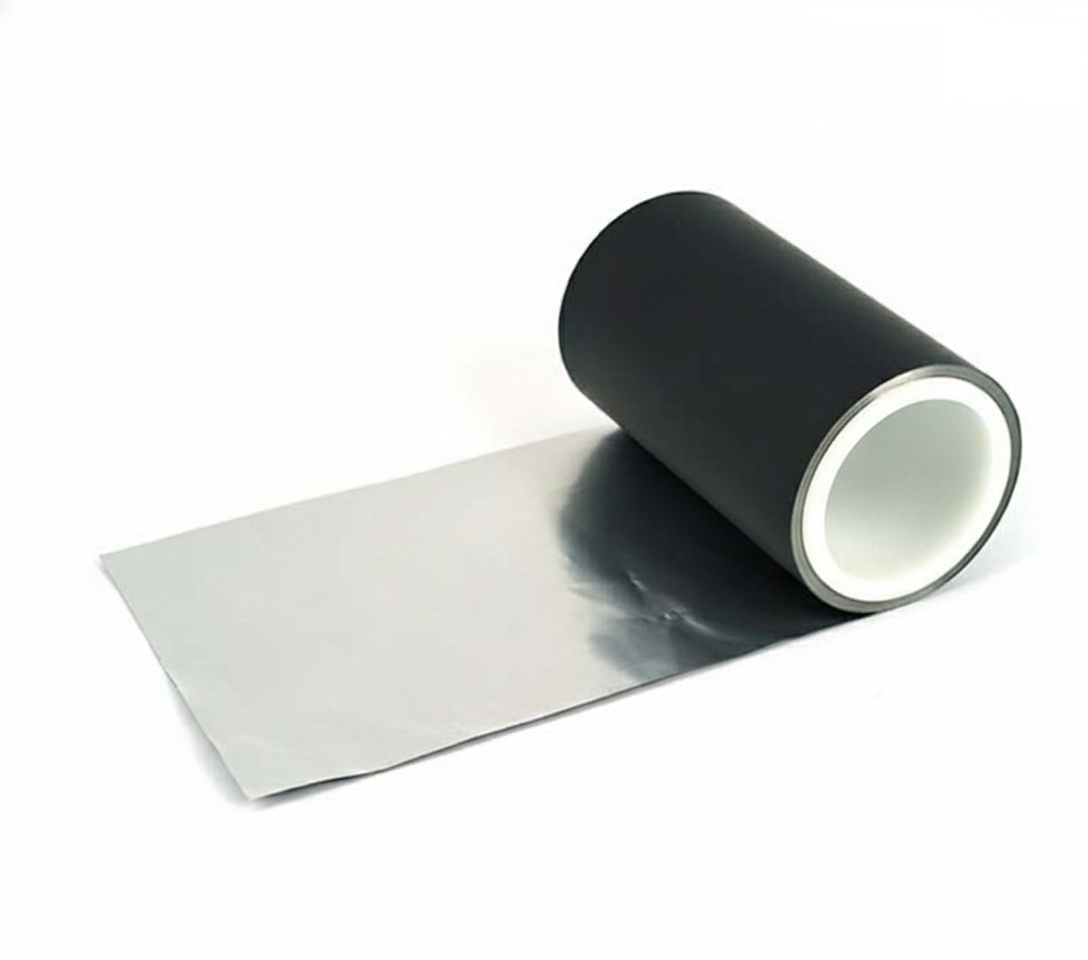

D-EL35H DNP Aluminum Laminated Film

Price range: £203.99 through £755.99

Select an option to request a quote

Flat rate shipping £15

    Product Description:
    Application: Suitable for pouch cell (polymer lithium-ion battery) packaging.

    Key Specifications (Single-Sided Reference):
    [D-EL35H Multi-layer structure]

    Overview:
    1. High-purity CPP: Excellent electrolyte corrosion resistance and thermal sealing performance.
    2. High Barrier Properties: High stability and consistency with excellent stamping moldability and puncture resistance.
    3. High Stability: Stable melt with no residual glue; resistant to delamination and breakage.

    Detailed Technical Structure:
    – Matte Ink Layer: Matte Ink (3.0 ± 0.5 g/m²)
    – Nylon Layer: Biaxially Oriented Nylon 6 (15 µm ± 10%)
    – Adhesive Layer: Carbon Black Mixture (3.8 g/m² -0, +1.5 g/m²)
    – Surface Treatment: Matte Surface
    – Aluminum Foil: Soft Aluminum 8079 JIS H4160 (35 µm ± 10%)
    – Surface Treatment: Glossy Surface
    – Adhesive Resin Layer: Modified Polypropylene (20 µm ± 10%)
    – Inner Layer: Polypropylene CPP (15 µm ± 10%)

    Option 1

    120 mm width x 30 m length x 91 um thickness, 3.6 m^2 per roll, 120 mm width x 300 m length x 91 um thickness, 36 m^2 per roll
