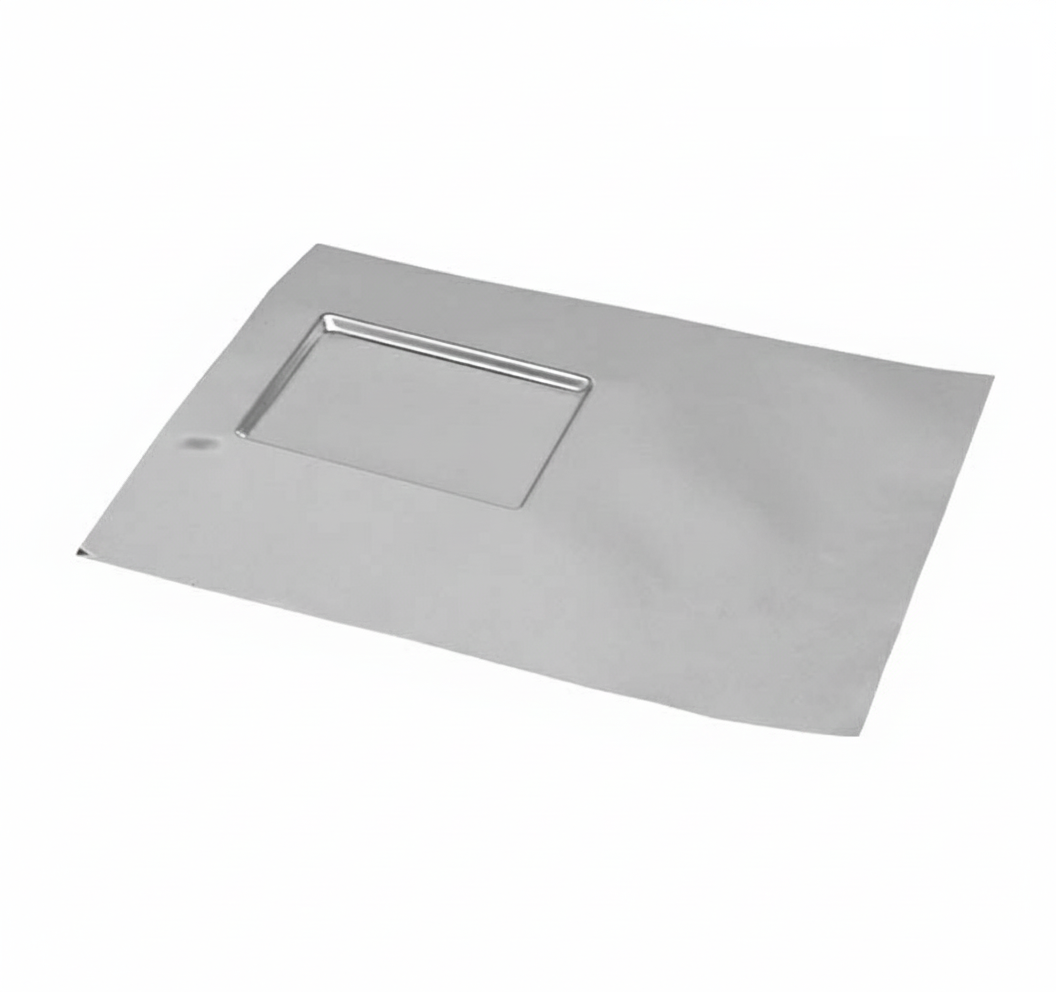

Embossed Aluminum Laminated Film for Pouch Cell Case
Battery Case

Embossed Aluminum Laminated Film for Pouch Cell Case

£215.99

Select an option to request a quote

Flat rate shipping £15

    Embossed Aluminum Laminated Film for Pouch Cell Case

    Detailed Specifications
    – Material Composition:
    * Outer Layer (Polyamide): 0.025 mm (+-0.0025 mm) (JIS Z1714)
    * Adhesive (Polyester-polyurethane): 4-5 g/m²
    * Barrier Layer (Aluminum foil): 0.040 mm (+-0.004 mm) (JIS A8079, A8021)
    * Adhesive (Urethane-free): 2-3 g/m²
    * Inner Layer (Polypropylene): 0.040 mm (+-0.004 mm)
    – Performance Metrics:
    * Molding Depth: >= 5.0 mm
    * Laminate Strength: Nylon/Al > 2N/15 mm, Al/CPP > 5N/15 mm
    * Heat Seal Strength: >= 29.4N/15 mm (at 200°C x 0.2Mpa x 2 sec)
    * Moisture/O2 Transmission Rate: 200ppm / 5 years
    – Quality Standards:
    * Impurity: Diameter <= 1 mm
    * Fish Eye: Diameter <= 2 mm (clear), <= 1 mm (coloured)
    * Electrical Insulating: Good
    * Solvent Retention: Less than 5mg/m²

    Option 1

    62 mm length x 46 mm width x 1 mm thickness, 50 pieces per pack, 62 mm length x 46 mm width x 2 mm thickness, 50 pieces per pack, 62 mm length x 46 mm width x 3 mm thickness, 50 pieces per pack, 62 mm length x 46 mm width x 4 mm thickness, 50 pieces per pack, 62 mm length x 46 mm width x 5 mm thickness, 50 pieces per pack, 62 mm length x 46 mm width x 6 mm thickness, 50 pieces per pack, 85120 air-pocket type, 105 mm length x 84 mm width x 3 mm thickness, embossed using 280 mm x 200 mm aluminum-plastic laminate, 50 pieces per pack, 85120 air-pocket type, 105 mm length x 84 mm width x 4 mm thickness, embossed using 280 mm x 200 mm aluminum-plastic laminate, 50 pieces per pack, 85120 air-pocket type, 105 mm length x 84 mm width x 5 mm thickness, embossed using 280 mm x 200 mm aluminum-plastic laminate, 50 pieces per pack, 85120 air-pocket type, 105 mm length x 84 mm width x 6 mm thickness, embossed using 280 mm x 200 mm aluminum-plastic laminate, 50 pieces per pack
