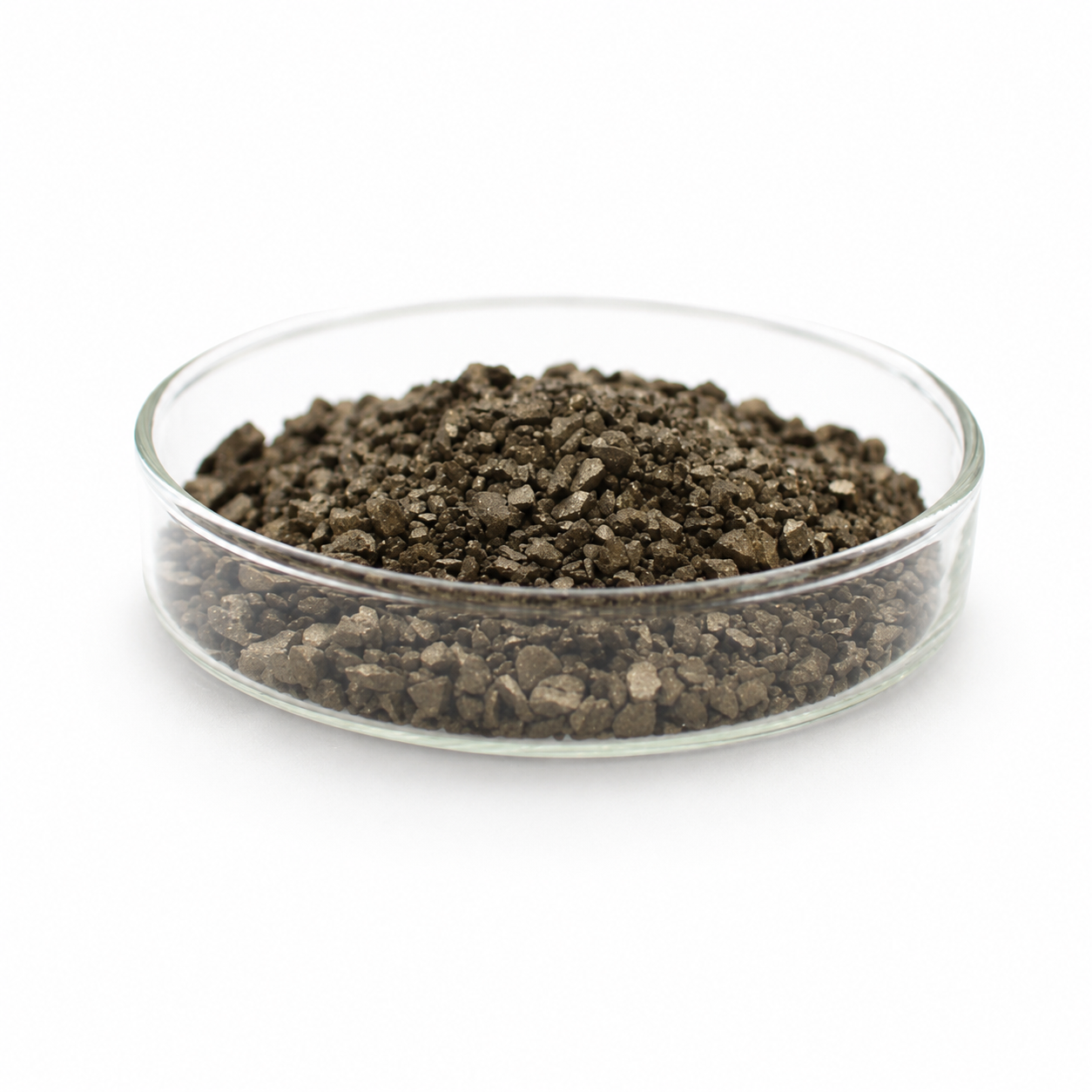

Titanium(II) Oxide (TiO) Evaporation Pellets, 99.99% Purity (Request Current Price)

Nanostore Titanium(II) Oxide (TiO) evaporation pellets are compound source materials supplied for evaporation coating, thin-film deposition research, optical and functional films, and laboratory PVD process development. The pellet format is convenient for weighing, source loading, and small-batch experimental workflows where clean handling and controlled material identity are important. Pricing requires a current quote because compound evaporation materials can vary with purity, package size, and current material availability.

Key Features

Compound Evaporation Material
Available purity options include 99.99% (4N) for research workflows that require controlled compound composition.

Pellet Format for Source Loading
Available particle-size options include 0.0394 in-0.118 in (1-3 mm) pieces. Package options include 1 kg, 100 g, 500 g, 50 g, 25 g, 250 g depending on selected purity and configuration.

Compound Material Selection
This material is a titanium oxide ceramic supplied as evaporation pellets for thin-film deposition and coating research.

Technical Specifications

Material: Titanium(II) Oxide (TiO)
Form: Evaporation Pellets
Purity Options: 99.99% (4N)
Available Size Options: 0.0394 in-0.118 in (1-3 mm) pieces
Package Options: 1 kg, 100 g, 500 g, 50 g, 25 g, 250 g
Category: Evaporation Materials
Typical Use: Evaporation source material, PVD research, optical coating, and laboratory materials science

Material Handling and Quality Notes

– Packaging and storage: keep sealed, dry, and protected from contamination; handle with clean gloves or tools before loading.

Quality-Control and Handling Indicators

– Analytical checks: ICP-MS trace-element analysis; ICP impurity/composition analysis; GDMS trace-metal analysis; carbon/sulfur impurity analysis; nitrogen/oxygen impurity analysis; chemical composition analysis.
– Inspection focus: particle-size screening; appearance inspection; dimensional verification.
– Handling and storage: sealed dry storage and protective packaging; clean-glove handling to avoid oil, dust, moisture, and surface contamination; careful handling to avoid compression, impact, or chipping.
– Deposition-use context: magnetron sputtering systems; ion sputtering systems; micro/nano fabrication research; semiconductor thin-film development; photovoltaic materials research; flat-panel display coating research.

Common Applications

– titanium monoxide evaporation source loading
– conductive ceramic and oxide coating research
– compound titanium oxide film development
– laboratory thin-film materials studies
– Academic, industrial, and pilot-scale thin-film materials research

Specifications

MaterialTitanium(II) Oxide (TiO)
Chemical formulaTiO
Purity options99.99% (4N)
FormEvaporation Pellets
Available sizes0.0394 in-0.118 in (1-3 mm) pieces

Typical properties of the bulk material (literature values)

CAS number12137-20-1
Molar mass63.866 g/mol
Density4.95 g/cm³

Sources: PubChem (U.S. National Library of Medicine), NIST (National Institute of Standards and Technology) and published reference data (handbooks and supplier data sheets). Reference values for the bulk substance, not test results of a specific lot.
