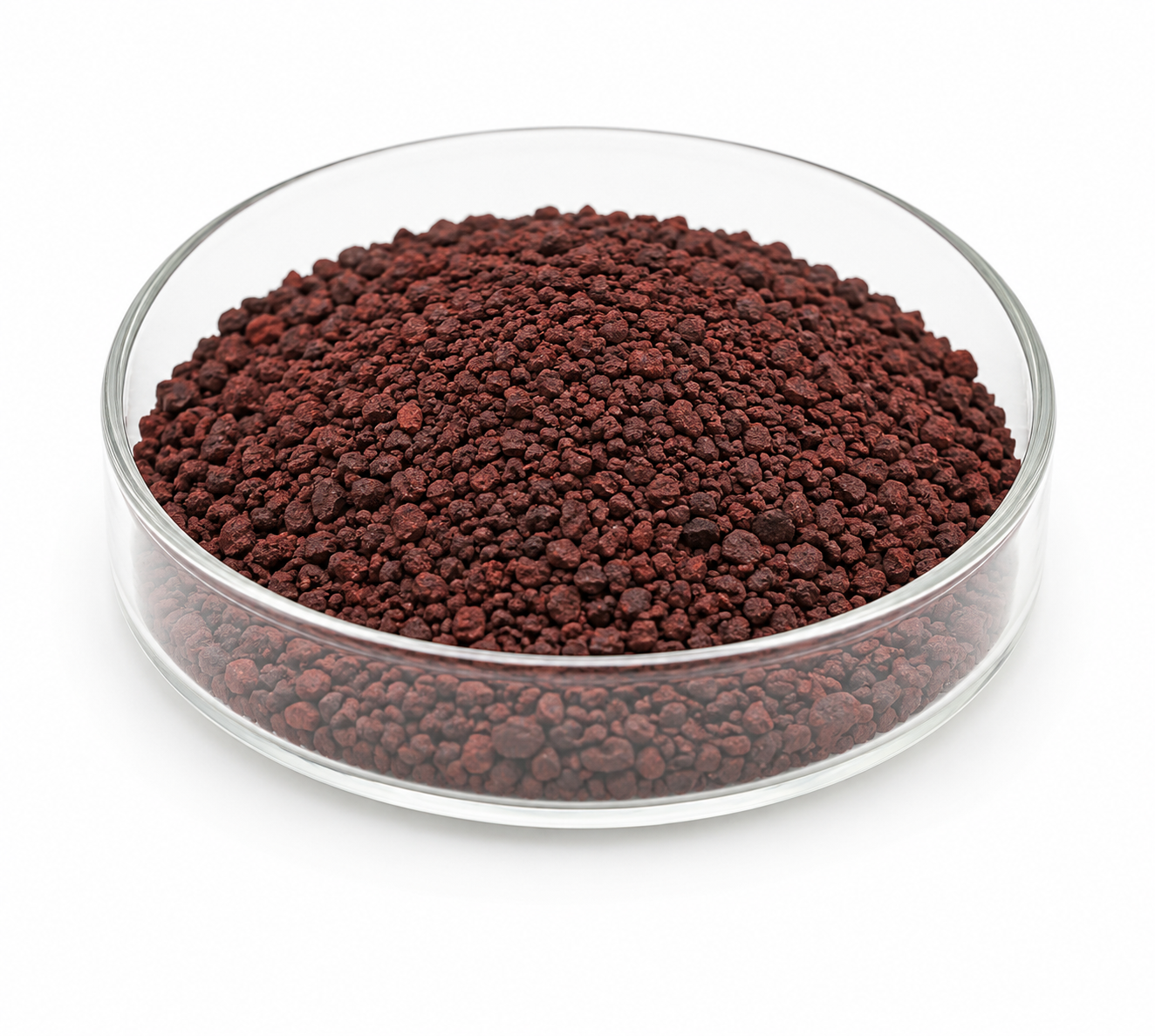

Iron(III) Oxide (Fe₂O₃) Evaporation Pellets, 99.95% Purity
Price range: £154.99 through £238.99
Dispatch normally within 1 business day; carrier transit normally 6–8 business days (7–9 business days in total). See Shipping Policy and Returns Policy.
For research and laboratory use only. Not for medical, diagnostic or household use.
Iron(III) Oxide (Fe₂O₃) Evaporation Pellets, 99.95% Purity
Nanostore Iron(III) Oxide (Fe₂O₃) evaporation pellets are compound source materials supplied for evaporation coating, thin-film deposition research, optical and functional films, and laboratory PVD process development. The pellet format is convenient for weighing, source loading, and small-batch experimental workflows where clean handling and controlled material identity are important.
Key Features
Compound Evaporation Material
Available purity options include 99.95% (3N5) for research workflows that require controlled compound composition.
Pellet Format for Source Loading
Available particle-size options include 0.0394 in-0.118 in (1-3 mm) pieces. Package options include 1 kg, 100 g, 500 g depending on selected purity and configuration.
Compound Material Selection
This material is a transition-metal oxide supplied as evaporation pellets for thin-film deposition and coating research.
Technical Specifications
Material: Iron(III) Oxide (Fe₂O₃)
Form: Evaporation Pellets
Purity Options: 99.95% (3N5)
Available Size Options: 0.0394 in-0.118 in (1-3 mm) pieces
Package Options: 1 kg, 100 g, 500 g
Category: Evaporation Materials
Typical Use: Evaporation source material, PVD research, optical coating, and laboratory materials science
Material Handling and Quality Notes
– Packaging and storage: keep sealed, dry, and protected from contamination; handle with clean gloves or tools before loading.
Quality-Control and Handling Indicators
– Analytical checks: ICP-MS trace-element analysis; ICP impurity/composition analysis; GDMS trace-metal analysis; carbon/sulfur impurity analysis; nitrogen/oxygen impurity analysis; chemical composition analysis.
– Inspection focus: particle-size screening; appearance inspection; dimensional verification.
– Handling and storage: sealed dry storage and protective packaging; clean-glove handling to avoid oil, dust, moisture, and surface contamination; careful handling to avoid compression, impact, or chipping.
– Deposition-use context: magnetron sputtering systems; ion sputtering systems; micro/nano fabrication research; semiconductor thin-film development; photovoltaic materials research; flat-panel display coating research.
Common Applications
– iron oxide evaporation source loading
– magnetic oxide and catalyst film research
– sensor, pigment, and functional coating studies
– laboratory oxide deposition development
– Academic, industrial, and pilot-scale thin-film materials research
Specifications
| Material | Iron(III) Oxide (Fe₂O₃) |
|---|---|
| Chemical formula | Fe₂O₃ |
| Purity | 99.95% |
Typical properties of the bulk material (literature values)
| CAS number | 1309-37-1 |
|---|---|
| Molar mass | 159.69 g/mol |
| Density | 5.25 g/cm³ |
| Melting point | 1565 °C |
Source: PubChem (U.S. National Library of Medicine). Reference values for the bulk substance, not test results of a specific lot.
| Option 1 | 99.95% (3N5) |
|---|---|
| Option 2 | 0.0394 in-0.118 in (1-3 mm) pieces |
| Option 3 | 1 kg, 100 g, 500 g |
