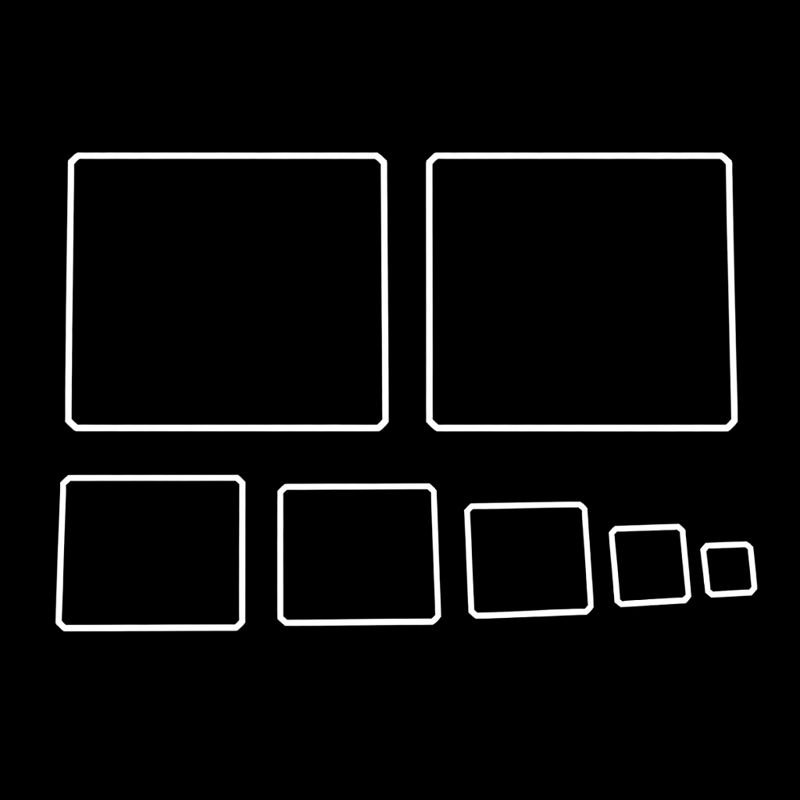

Square Sapphire (Al₂O₃) Single Crystal Substrates, C-plane (0001)

Price range: £22.99 through £72.99

Select an option to request a quote

Flat rate shipping £15

    Square Sapphire (Al₂O₃) Single Crystal Substrates, C-Plane (0001)

    Overview: High-purity single-crystal sapphire (Al₂O₃) substrates in square format, C-plane (0001) orientation. Available from 5 × 5 mm up to 50 × 50 mm, in 0.5, 1.0, 2.0, and 3.0 mm thickness, with single-side (SSP) or double-side (DSP) polishing. Square format is convenient for mask alignment, corner-referenced deposition, and lateral thin-film patterning.

    Key Specifications:
    – Format: Square (no flats/notches)
    – Orientation: C-plane (0001)
    – Sizes: 5×5, 10×10, 15×15, 20×20, 25×25, 30×30, 50×50 mm (larger on request)
    – Thickness: 0.5, 1.0, 2.0, or 3.0 mm
    – Polish: SSP (single-side polished) or DSP (double-side polished)
    – Purity: 99.999%+ single-crystal Al₂O₃
    – Surface Roughness: <0.5 nm Ra (polished face)

    Material Properties:
    – Hardness: 9 Mohs
    – Melting Point: 2,040°C
    – Optical Transmission: 0.15 – 5.5 μm (UV to mid-IR)
    – Thermal Conductivity: ~46 W/(m·K) at RT

    Applications:
    – Thin-film oxide deposition (ZnO, NiO, TiO₂, Fe₂O₃)
    – Optical window for UV and IR spectroscopy
    – MEMS and microsensor substrate fabrication
    – High-temperature substrate for CVD research
    – Semiconductor research requiring square substrate geometry
    – Photolithography mask alignment with square format

    Notes:
    – For circular wafers (standard diameters), see our round sapphire (Al₂O₃) substrate listings
    – Custom sizes above 50×50 mm available on request

    Option 1

    10 × 10 × 0.5 mm, 10 × 10 × 1 mm, 10 × 10 × 2 mm, 10 × 10 × 3 mm, 15 × 15 × 0.5 mm, 15 × 15 × 1 mm, 15 × 15 × 2 mm, 15 × 15 × 3 mm, 20 × 20 × 0.5 mm, 20 × 20 × 1 mm, 20 × 20 × 2 mm, 20 × 20 × 3 mm, 25 × 25 × 0.5 mm, 25 × 25 × 1 mm, 25 × 25 × 2 mm, 25 × 25 × 3 mm, 30 × 30 × 0.5 mm, 30 × 30 × 1 mm, 30 × 30 × 2 mm, 5 × 5 × 1 mm, 50 × 50 × 1 mm, 50 × 50 × 2 mm
    Option 2

    Double-side Polished (DSP), Single-side Polished (SSP)
