SnS₂ Crystals

SnS₂ Crystals

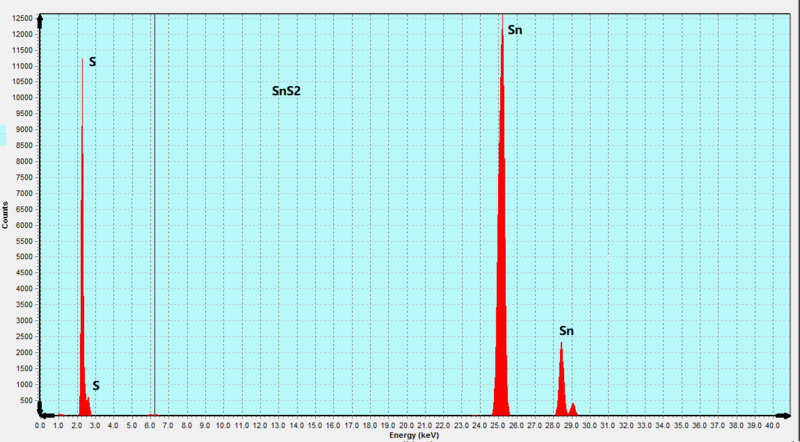

SnS₂ (Tin Disulfide) is a layered van der Waals semiconductor with a hexagonal 2H phase structure, exhibiting excellent optical and electronic properties. It is widely studied for its applications in optoelectronics, photodetectors, transistors, photocatalysis, and energy storage due to its moderate bandgap, high photoconductivity, and environmental stability. Our SnS₂ crystals are synthesized using the Chemical Vapor Transport (CVT) method, ensuring high purity, well-controlled stoichiometry, and good crystallinity.

Sample Size Options:
Crystals larger than 10 mm²
Crystals larger than 25 mm²
Crystals larger than 100 mm²

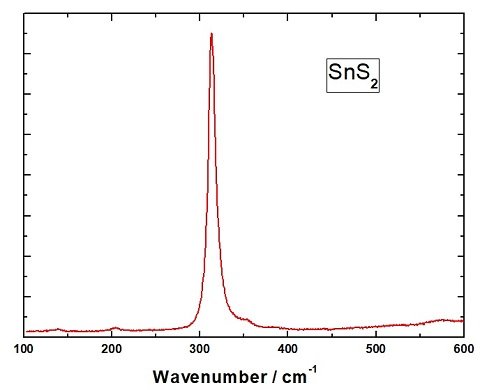

Material Properties:

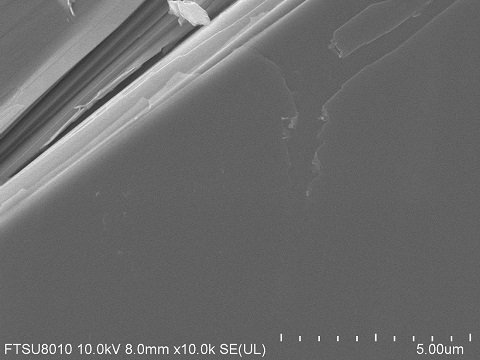

Layered van der Waals Structure: Enables easy mechanical exfoliation into monolayers or few-layer nanosheets for 2D material research.

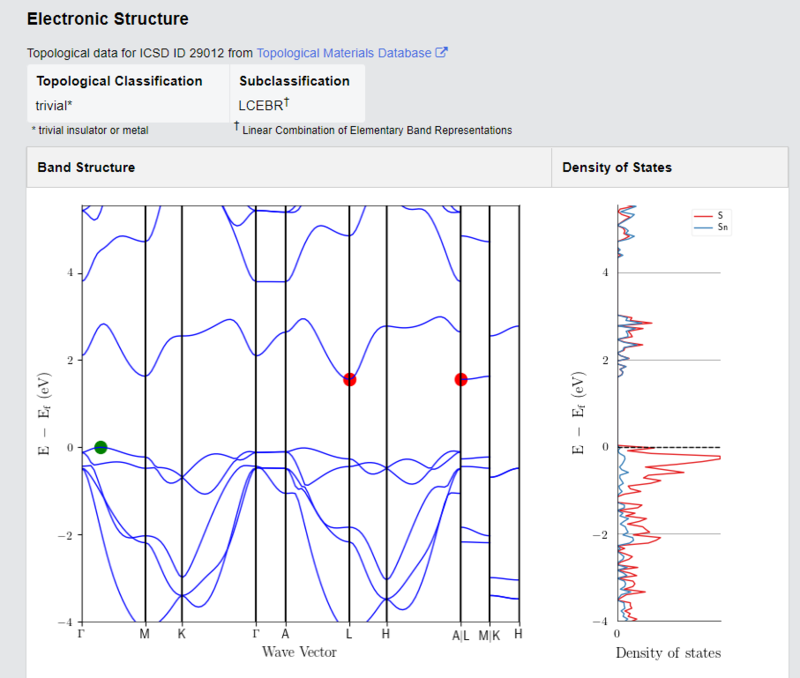

Semiconducting Properties: Exhibits an indirect bandgap of ~2.18 eV in bulk, shifting towards a direct bandgap in monolayer form (~2.5 eV), making it ideal for optoelectronic applications.
High Photocatalytic Activity: Efficient for photocatalytic water splitting and CO₂ reduction reactions.
Excellent Environmental Stability: More stable than transition metal dichalcogenides (TMDs) such as MoS₂ and WS₂ under ambient conditions.
Anisotropic Electrical Transport: Exhibits unique charge transport behavior, making it suitable for advanced electronic devices.

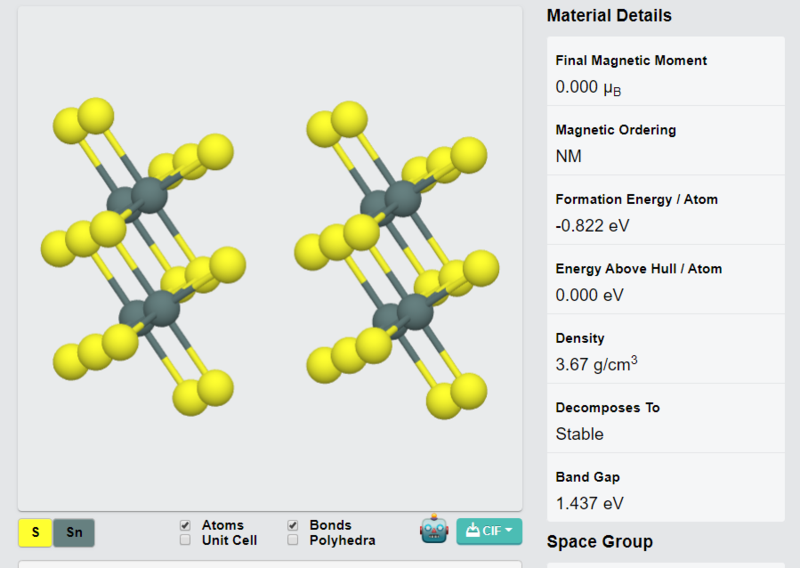

Crystal Structure:
Type: Hexagonal (2H phase) layered structure
Features: High crystallinity with uniform, defect-free layers, suitable for thin-film fabrication and device integration.

Degree of Exfoliation:
Ease of Use: Easily exfoliated into monolayers or few-layer nanosheets for fundamental studies and heterostructure integration.

Other Characteristics:
High Optical Absorption: Efficient in the visible spectrum, making it a strong candidate for photodetectors and solar cells. Potential for Field-Effect Transistors (FETs): Demonstrates promising electronic transport characteristics for next-generation electronics. Low-Toxicity & Earth-Abundant Composition: A cost-effective alternative to rare and expensive semiconductor materials.

Applications:
Optoelectronics & Photodetectors:
Ideal for UV-visible photodetectors, flexible optoelectronic devices, and light sensors. Nanoelectronics:
High-performance material for thin-film transistors and memory devices. Photocatalysis & Water Splitting:
Efficient catalytic material for hydrogen production and CO₂ reduction reactions.
2D Material Studies:
Suitable for exfoliation into monolayers and integration into van der Waals heterostructures. Energy Storage & Batteries:
Investigated as an anode material for lithium-ion and sodium-ion batteries. Synthesis Method:
Chemical Vapor Transport (CVT): Ensures high-quality crystals with excellent purity, uniform thickness, and high structural integrity.
