ZrTe₃ Crystals

SKU: 2D-Bulk-ZrTe3-1-1

Price range: £499.99 through £599.99

Dispatch normally within 1 business day; carrier transit normally 6–8 business days (7–9 business days in total). See Shipping Policy and Returns Policy.

Select an option to request a quote

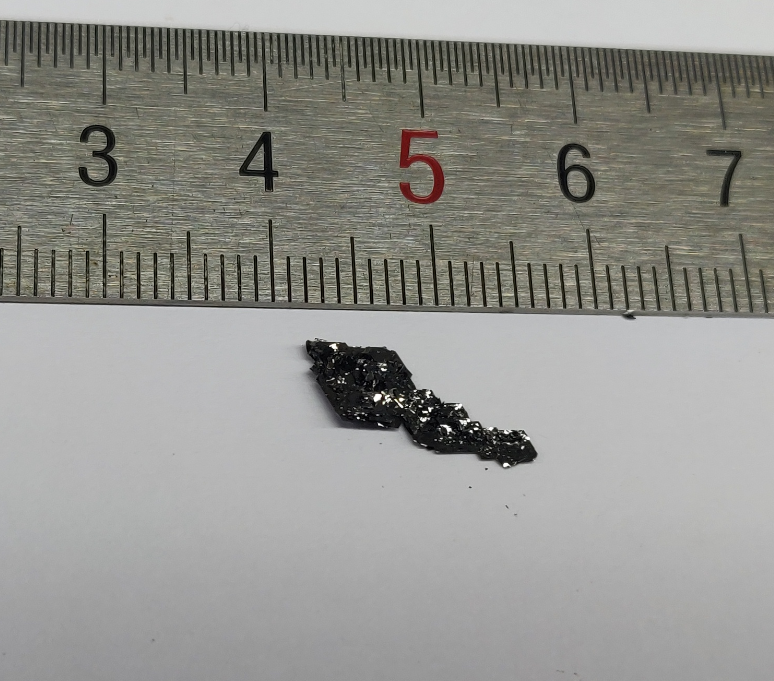

ZrTe₃ Crystals

ZrTe₃ is a layered transition metal chalcogenide (TMC) with a quasi-one-dimensional (1D) structure, exhibiting charge density wave (CDW) behavior and electronic properties. Its crystal structure and transport characteristics support studies of low-dimensional physics and applications in electronic devices and 2D materials. ZrTe₃ crystals are synthesized using high-temperature chemical vapor transport (CVT) methods for research.

Sample Size Options:
Crystals larger than 10 mm²
Crystals larger than 25 mm²

Material Properties:
Quasi-1D Layered Structure: Facilitates exfoliation into thin sheets for 2D research. Charge Density Waves (CDW): Exhibits CDW behavior at ~63 K, applicable to quantum material studies.
Conductivity: Displays metallic-like conductivity along certain crystallographic directions.
Thermal behavior: Retains structural and electronic properties under controlled conditions.

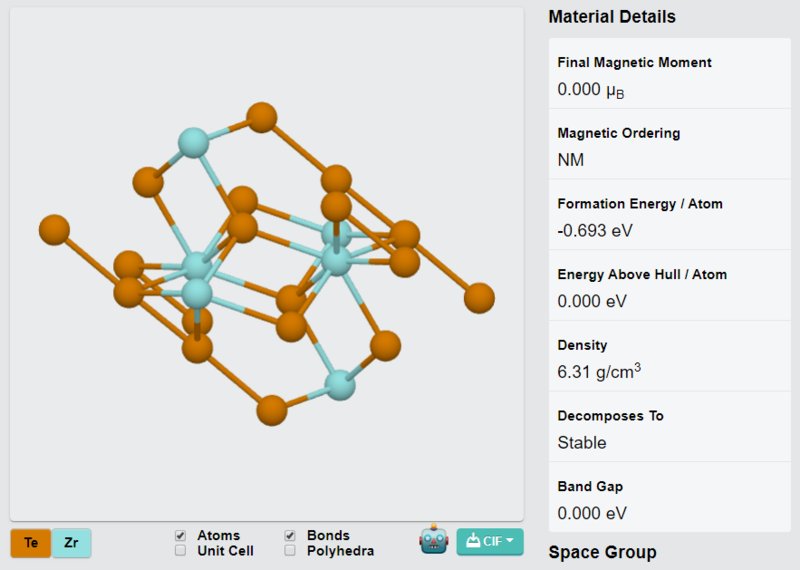

Crystal Structure:
Type: Monoclinic layered structure
Features: Chain-like arrangement of zirconium and tellurium atoms is associated with anisotropic properties.

Degree of Exfoliation:
Ease of Use: Exfoliated into monolayers or few-layer sheets for 2D studies.

Other Characteristics:

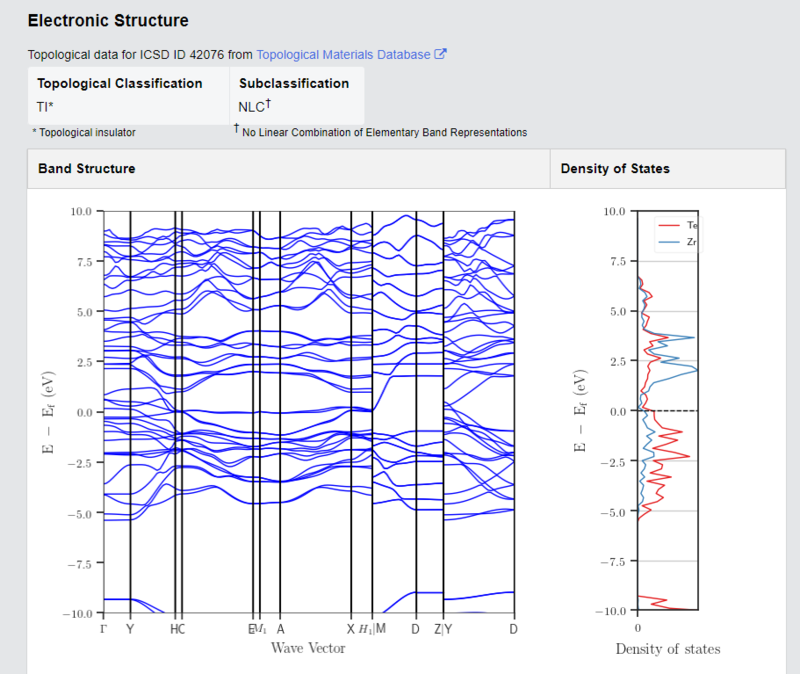

Electronic Transport Properties: Exhibits anisotropic electronic behavior.
Quantum Behavior: Charge density wave transitions support studies of low-dimensional electronic interactions.
Environmental behavior: Store and handle under inert conditions.

Applications:
Quantum Materials Research:
Applicable for studying CDW phenomena and correlated electron systems.
2D Material Studies:
Applicable to exfoliation and assembly into van der Waals heterostructures. Electronic Devices:
Used in conductive and optoelectronic devices. Fundamental Physics Research:
Permits investigations into low-dimensional quantum phenomena and electronic transitions.

Specifications

MaterialZrTe₃ Crystals
Chemical formulaZrTe₃
Crystal structureMonoclinic layered structure
Available sizesCrystals larger than 10 mm²; Crystals larger than 25 mm²

Typical properties of the bulk material (literature values)

Space groupP2₁/m (No. 11), COD 1559502

Source: Crystallography Open Database (COD); the entry ID is given with each value. Reference values for the bulk substance, not test results of a specific lot.

Option 1

> 10 mm², > 25 mm²
