Pb₂Bi₂Te₅ Crystals

Price range: £499.99 through £569.99

Select an option to request a quote

Flat rate shipping £15

    Pb₂Bi₂Te₅ Crystals

    Pb₂Bi₂Te₅ is a layered topological insulator with strong electronic, thermoelectric, and optical properties. Its robust surface states, strong spin-orbit coupling, and high thermoelectric efficiency make it a promising material for quantum materials research, energy conversion, and advanced spintronic applications. Our Pb₂Bi₂Te₅ crystals are synthesized using the Chemical Vapor Transport (CVT) method, ensuring high purity, precise stoichiometry, and high crystallinity.

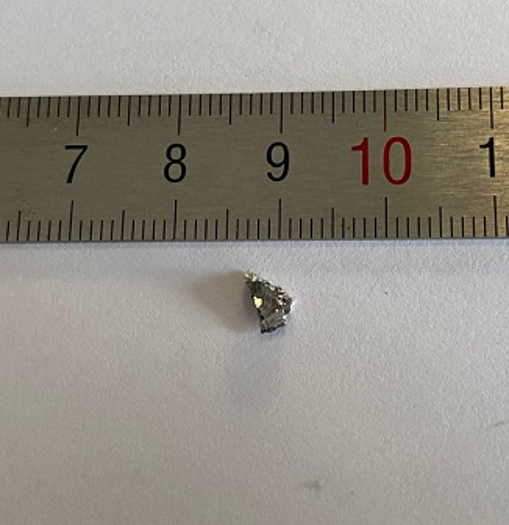

    Sample Size Options:
    Crystals larger than 10 mm²
    Crystals larger than 25 mm²

    Material Properties:
    Layered van der Waals Structure: Facilitates exfoliation into thin layers for 2D material studies.
    Topological Insulator Behavior: Exhibits robust surface states with spin-momentum locking.
    Thermoelectric Efficiency: High Seebeck coefficient and low thermal conductivity for energy harvesting applications.
    Optical Absorption: Strong absorption in the visible-to-infrared range, suitable for photonic devices.

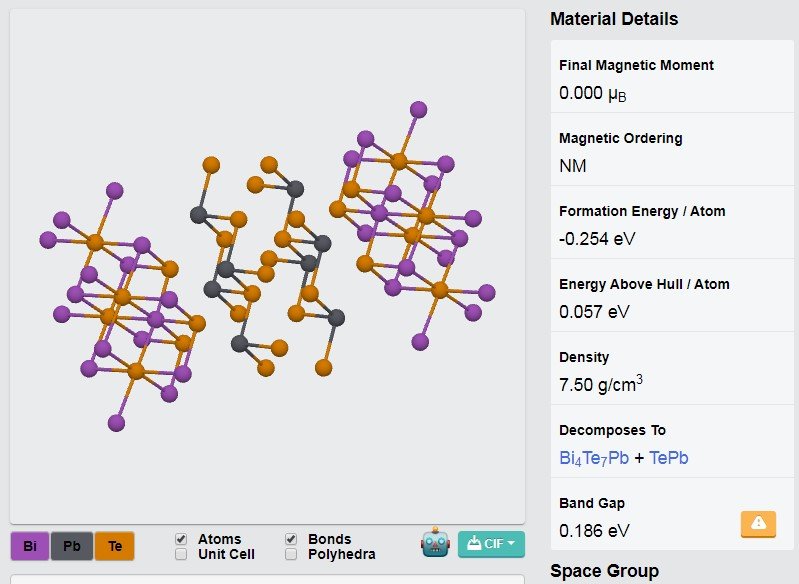

    Crystal Structure:
    Type: Rhombohedral layered structure
    Features: Cleavable layers ideal for thin-film fabrication and nanoscale device integration.

    Degree of Exfoliation:
    Ease of Use: Readily exfoliates into monolayers or few-layer sheets for advanced research applications.

    Other Characteristics:
    Quantum Properties: Promising for studying topological surface states and quantum transport phenomena. Thermoelectric

    Applications: Suitable for energy conversion and thermal management systems. Spintronics

    Applications: Ideal for exploring spin-based devices and spin-orbit coupling.

    Applications:
    Quantum Materials Research:
    Enables studies of topological insulators and associated quantum phenomena. Thermoelectric Devices:
    Suitable for power generation and cooling technologies. Spintronics:
    Promising for spin-based devices and investigating spin-orbit phenomena.
    2D Material Studies:
    Perfect for exfoliation into thin layers and integration with van der Waals heterostructures. Optoelectronics:
    Suitable for photodetectors, sensors, and other optoelectronic devices.

    Option 1

    > 10 mm², > 25 mm²
