Nickel and Nickel-Plated Copper Anode Tabs
Battery Consumables

Nickel and Nickel-Plated Copper Anode Tabs

£179.99

Select an option to request a quote

Flat rate shipping £15

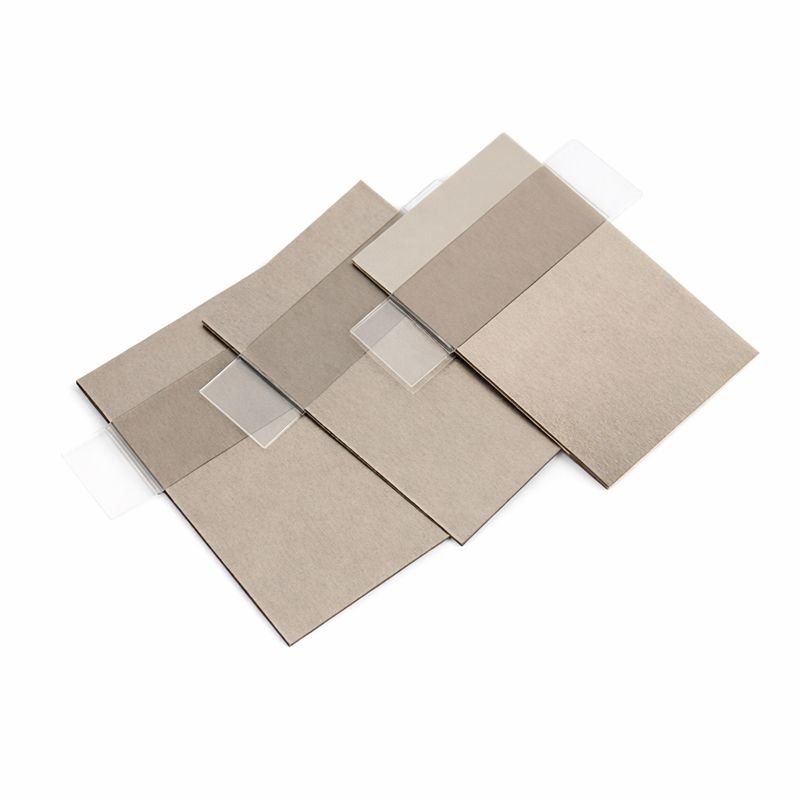

    Product: Nickel and Nickel-Plated Copper Anode Tabs for Power Batteries
    Application: Negative Terminal (Anode) for High-Power Pouch Lithium-ion Batteries
    Product Overview: These anode tabs are designed for high-power applications, featuring high purity and robust mechanical properties. Available in pure Nickel or Nickel-Plated Copper configurations with specific adhesive sealants (DNP Black or White) to ensure reliable sealing and corrosion resistance.

    Key Specifications (General):
    Material Purity: >= 99.60%
    Bending Performance: Withstands >= 7 cycles of 180deg bending.
    Adhesion Performance: No shedding or corrosion after 4 hours immersion in 85°C adhesion test solution.

    Storage Requirements:
    – Shelf Life: 12 months.
    – Conditions: Long-term storage at room temperature (5°C – 25°C) and relative humidity <= 70%.

    Option 1

    15 mm W * 0.1 mm T * 60 mm L / DNP Black Adhesive / 50 Pcs, 15 mm W * 0.15 mm T * 60 mm L / DNP Black Adhesive / 50 Pcs, 15 mm W * 0.2 mm T * 60 mm L / DNP Black Adhesive / 50 Pcs, 20 mm W * 0.2 mm T * 30 mm L / White Adhesive / 50 Pcs, 20 mm W * 0.2 mm T * 60 mm L / DNP Black Adhesive / 50 Pcs
