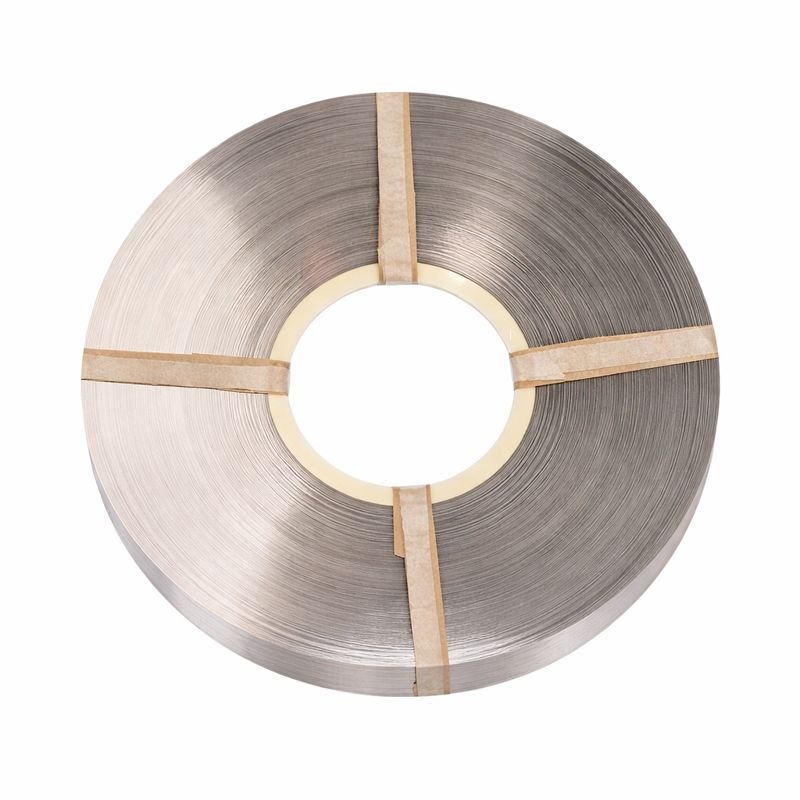

High-Purity Nickel Strip for Lithium Battery Tabs
Battery Consumables

High-Purity Nickel Strip for Lithium Battery Tabs

Price range: £203.99 through £335.99

Select an option to request a quote

Flat rate shipping £15

    Product: High-Purity Nickel Strip for Lithium Battery Tabs
    Application: Electrode Connection Tabs for Lithium-ion Batteries
    Product Overview: This high-purity nickel strip is engineered for lithium battery applications, featuring excellent electrical conductivity, high corrosion resistance, and specific mechanical properties tailored for reliable tab welding and assembly.

    Key Specifications:
    Physical Properties:
    – Density: 8.93 g/cm³
    – Melting Point: 1445°C
    – Electrical Resistivity: 7.2 x 10⁻⁸ Ohm-m (0.072 uOhm-m)
    – Appearance: Silver-white

    Chemical Composition:
    – Nickel + Cobalt (Ni+Co): >= 99.5%
    – Copper (Cu): <= 0.06%
    – Iron (Fe): <= 0.01%
    – Manganese (Mn): <= 0.05%
    – Carbon (C): <= 0.1%
    – Silicon (Si): <= 0.1%
    – Sulfur (S): <= 0.005% Mechanical Properties: – Tensile Strength (M – Soft/Annealed): >= 392 N/mm² (MPa)
    – Tensile Strength (Y – Hard): >= 539 N/mm² (MPa)
    – Elongation (M – Soft/Annealed): >= 30%
    – Elongation (Y – Hard): >= 2%
    – Hardness (M – Soft/Annealed, Hv): <= 95 – Hardness (Y2 – Half Hard, Hv): 130 – 170 – Hardness (Y – Hard, Hv): >= 200

    Packaging Unit: Roll
    Note: The specific mechanical state (M, Y2, or Y) depends on the selected product grade.

    Option 1

    3 mm W x 0.1 mm T, 350 g/roll, 3 mm W x 0.1 mm T, 390 g/roll, 3 mm W x 0.1 mm T, 660 g/roll, 3 mm W x 0.1 mm T, 700 g/roll, 3 mm W x 0.1 mm T, Ni201/N4 Grade, 200 g/roll, 3 mm W x 0.1 mm T, Ni201/N4 Grade, 380 g/roll, 3 mm W x 0.1 mm T, Ni201/N4 Grade, 800 g/roll, 6 mm W x 0.1 mm T, 350 g/roll
