Micro-Perforated Aluminum Foil
Current Collector

Micro-Perforated Aluminum Foil

Price range: £143.99 through £634.99

Select an option to request a quote

Flat rate shipping £15

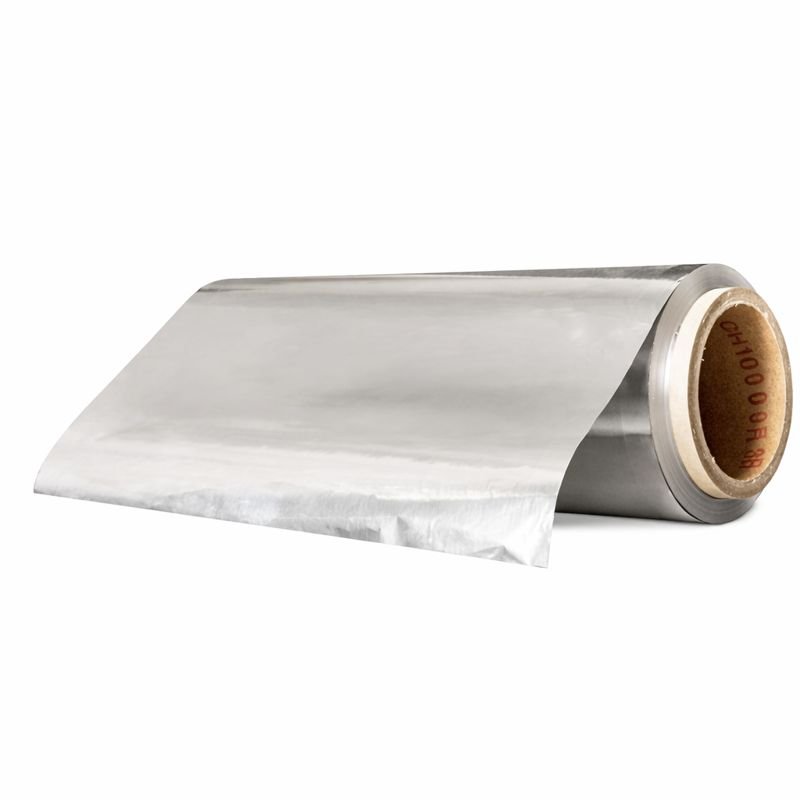

    Micro-Perforated Aluminum Foil
    Application: Cathode Current Collector for Lithium Batteries
    Product Overview: This innovative current collector is produced via secondary mechanical perforation of standard aluminum foil, preserving the material’s original physical and chemical properties. Key benefits include improved specific energy, enhanced rate capability, reduced internal resistance, superior electrolyte wettability, and increased coating adhesion. Its enhanced flexibility makes it particularly suitable for flexible battery applications.
    Thickness: 15 µm
    Purity: 99.35%
    Total Substrate Width: 290 mm
    Perforated Area Width: 260 mm
    Pore Diameter: 0.25 mm
    Pore Spacing: 0.8 mm
    Packaging Unit: Roll

    Option 1

    Substrate 15 um x 290 mm (Perf. Width 260 mm, Φ 0.25 mm), 5 m, 0.045 kg/roll, Substrate 15 um x 290 mm, 2 kg/roll
