Perforated Aluminum Foil
Current Collector

Perforated Aluminum Foil

Price range: £179.99 through £251.99

Select an option to request a quote

Flat rate shipping £15

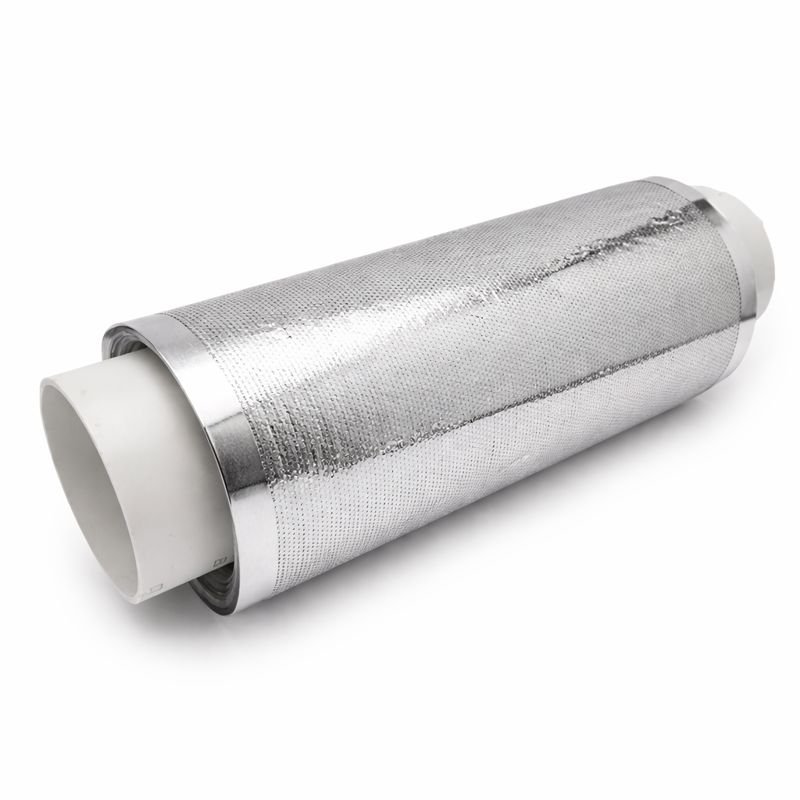

    Perforated Aluminum Foil
    Application: Current Collector Material for Lithium-ion Batteries
    Product Overview: This Perforated Aluminum Foil serves as an innovative current collector designed for advanced lithium-ion battery architectures. The material is produced through a precise secondary mechanical processing step (perforation) applied to standard lithium battery-grade aluminum foil. This controlled mechanical patterning minimizes alteration to the intrinsic physical and chemical properties of the base aluminum foil, thereby optimizing its electrochemical performance.
    Foil Thickness: 20 µm
    Total Foil Width: 265 ± 1 mm
    Perforated Area Width: 237.18 mm
    Perforation Diameter (Dia. ): 1.5 mm
    Packaging Unit: Roll
    Approximate Weight: 1-2 kg per roll

    Option 1

    0.7 kg/roll, 0.8 kg/roll, 0.9 kg/roll, 1.0 kg/roll, 1.1 kg/roll, 1.6 kg/roll, 1.7 kg/roll
