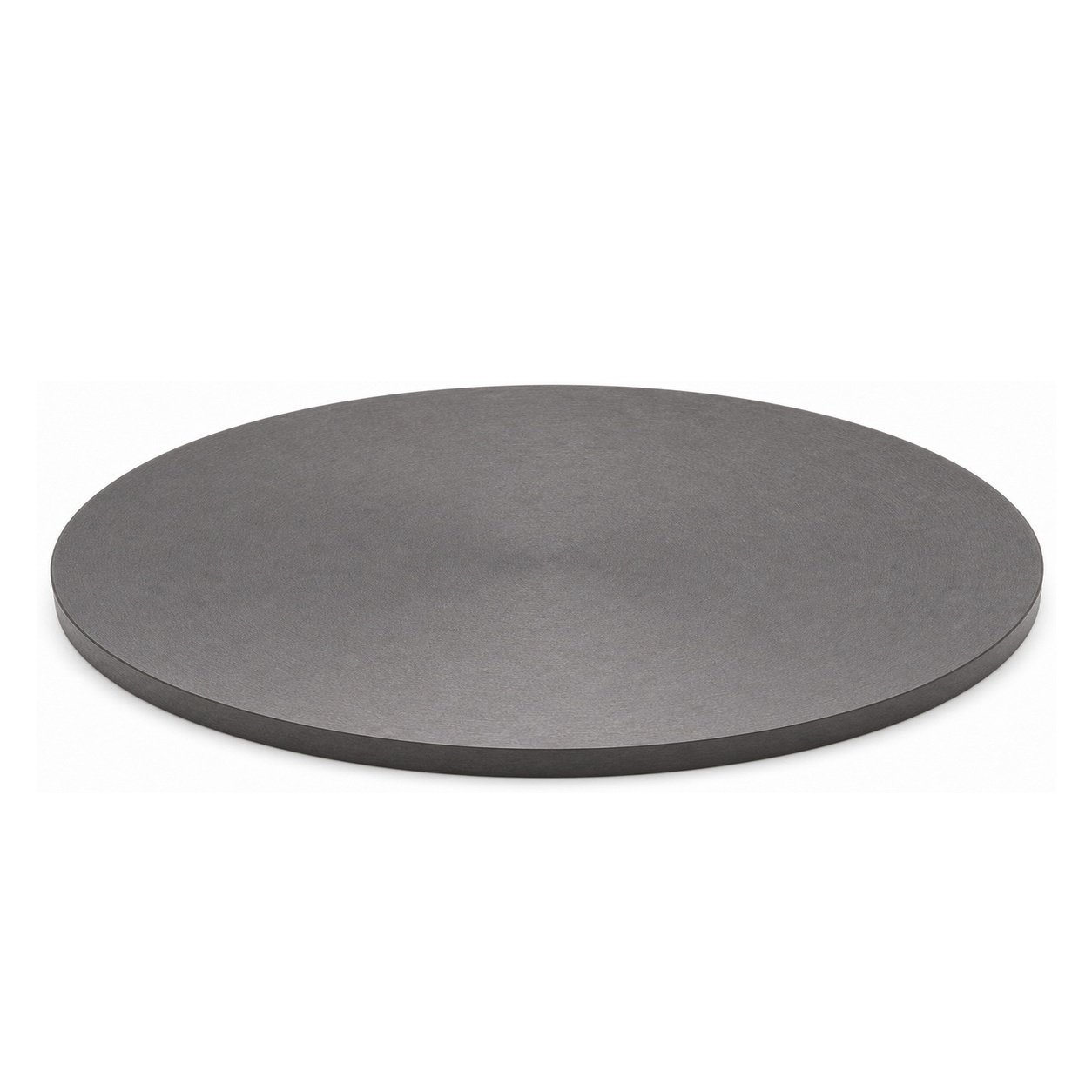

Gallium Telluride (Ga₂Te₃) Sputtering Target, 99.99% Purity, Circular
Price range: £873.99 through £1,259.99
Dispatch normally within 1 business day; carrier transit normally 6–8 business days (7–9 business days in total). See Shipping Policy and Returns Policy.
Gallium Telluride (Ga₂Te₃) Sputtering Target, 99.99% Purity, Circular
Nanostore’s Gallium Telluride (Ga₂Te₃) sputtering target is a 99.99% purity compound semiconductor PVD source material for magnetron sputtering, ion sputtering, and laboratory thin-film deposition. It is supplied in circular target formats for research, development, and small-batch process work.
Key Features
Source Material
Supplied as 99.99% Purity for thin-film workflows.
Circular Target Formats
Available in circular diameters including 1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm). Thickness and mounting options include 3 mm thick, 3 mm + 2 mm Cu backing, 3 mm + 3 mm Cu backing, 3 mm + 2 mm Cu backing + magnetic shim, 3 mm + 3 mm Cu backing + magnetic shim, depending on selected configuration.
Controlled Processing and Inspection
Target preparation may include material selection, forming, heat treatment, machining, dimensional inspection, surface finishing, cleaning, and final quality review. Composition and impurity control may be supported by analytical methods such as ICP, GDMS, carbon/sulfur analysis, oxygen/nitrogen analysis, and metallographic inspection where appropriate.
Clean Handling and Packaging
Targets are prepared for deposition use with clean surface handling and protective packaging. Store sealed in a dry environment, handle with clean gloves, and avoid direct contact with oil, dust, moisture, or other surface contamination before installation.
Mounting Configuration Note
Selected configurations for this product include mounting options such as 3 mm + 2 mm Cu backing; 3 mm + 2 mm Cu backing + magnetic shim; 3 mm + 3 mm Cu backing; 3 mm + 3 mm Cu backing + magnetic shim. Choose the plain target, Cu-backed target, and/or magnetic-shim configuration according to the sputtering source geometry and cathode requirements.
Technical Specifications
Material: Gallium Telluride (Ga₂Te₃)
Purity / Composition: 99.99% Purity
Form: Circular sputtering target
Available Diameters: 1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm)
Available Thickness / Backing Options: 3 mm thick, 3 mm + 2 mm Cu backing, 3 mm + 3 mm Cu backing, 3 mm + 2 mm Cu backing + magnetic shim, 3 mm + 3 mm Cu backing + magnetic shim
Equipment: Single-target sputtering systems, multi-target sputtering systems, ion sputtering systems, and magnetron sputtering equipment
Packaging: Protective target packaging for laboratory shipment and storage
Common Applications
– chalcogenide semiconductor thin-film research; optoelectronic material development; phase-change and telluride film studies; compound semiconductor PVD workflows
– Academic, industrial, and pilot-scale thin-film process development
Specifications
| Material | Gallium Telluride (Ga₂Te₃) |
|---|---|
| Chemical formula | Ga₂Te₃ |
| Purity | 99.99% |
| Available diameters | 1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm) |
| Available thickness / backing | 3 mm thick, 3 mm + 2 mm Cu backing, 3 mm + 3 mm Cu backing, 3 mm + 2 mm Cu backing + magnetic shim, 3 mm + 3 mm Cu backing + magnetic shim |
Typical properties of the bulk material (literature values)
| CAS number | 12024-27-0 |
|---|---|
| Molar mass | 522.25 g/mol |
| Density | 5.57 g/cm³ |
Sources: PubChem (U.S. National Library of Medicine), NIST (National Institute of Standards and Technology) and published reference data (handbooks and supplier data sheets). Reference values for the bulk substance, not test results of a specific lot. Molar mass is calculated from the chemical formula using standard atomic weights (CIAAW).
| Option 1 | 99.99% (4N) |
|---|---|
| Option 2 | 1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm) |
| Option 3 | 3 mm + 2 mm Cu backing, 3 mm + 2 mm Cu backing + magnetic shim, 3 mm + 3 mm Cu backing, 3 mm + 3 mm Cu backing + magnetic shim, 3 mm thick |
