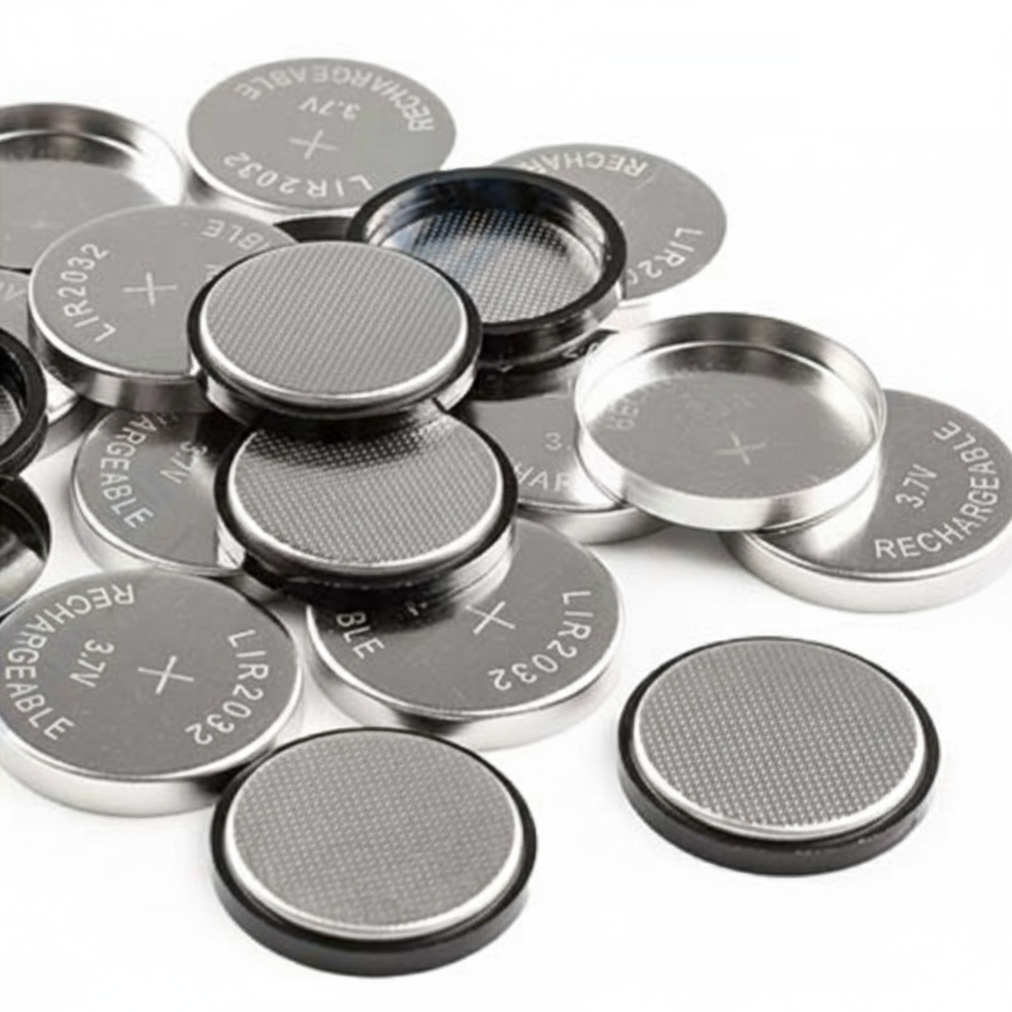

CR/LIR2032 Coin Cell Case with Black Sealing Ring, SS304 (100 Sets/Pack)

CR/LIR2032 Stainless Steel Coin Cell Case with Black Sealing Ring

Application:
Designed for battery material research and coin cell assembly. The black sealing ring (gasket) aids in visual identification and sealing performance for specific experimental setups.

Key Features:
* Distinctive Sealing Ring: Features a black sealing gasket (O-ring) distinguishing it from standard white-gasket cases, useful for color-coding experiments or specific sealing requirements.
* Material Purity: Manufactured from high-quality 304 Stainless Steel, conforming to ASTM A276/A276M-2017 standards for chemical stability and corrosion resistance.
* Precision Dimensions: Finished product dimensions are strictly controlled to standard 2032 specifications, compatible with standard crimping machines.

Key Specifications:
Model: CR/LIR2032 (Black Ring)
Case Material: 304 Stainless Steel
Sealing Ring Material: Polypropylene (PP)
Sealing Ring Color: Black
Packaging Unit: 100 Sets/Pack

Detailed Dimensions (Positive Case / Can):
* Outer Diameter: 19.95 (+0.05/-0.03) mm
* Inner Diameter: 19.9 (+0.04/-0.02) mm
* Height: 2.86 ± 0.04 mm
* Material Thickness: 0.25 mm

Detailed Dimensions (Negative Case / Cap):
* Outer Diameter: 19.32 ± 0.04 mm
* Inner Diameter: 16.45 ± 0.05 mm
* Total Height: 2.8 ± 0.04 mm
* Effective Height (Wall): 2.1 ± 0.04 mm
* Material Thickness: 0.25 mm

Material Chemical Composition (ASTM A276/A276M-2017 304 Standard):
* Carbon (C): 0.0415% (Req: <=0.08)
* Sulfur (S): 0.0035% (Req: <=0.030)
* Silicon (Si): 0.430% (Req: <=1.00)
* Manganese (Mn): 1.04% (Req: <=2.00)
* Phosphorus (P): <0.0400% (Req: <=0.045)
* Chromium (Cr): 18.02% (Req: 18.0-20.0)
* Nickel (Ni): 8.01% (Req: 8.0-11.0)
