Electrochemical Cell with Water Bath, Sealed/Unsealed

Price range: £133.00 through £600.00

Select an option to request a quote

Flat rate shipping £15

    A water-jacketed electrochemical cell in borosilicate glass with a PTFE closure, for three-electrode measurements under circulated-fluid temperature control. Offered in sealed and unsealed configurations across a wide volume range.

    Key Features

    • Integral water bath for temperature regulation via an external circulator

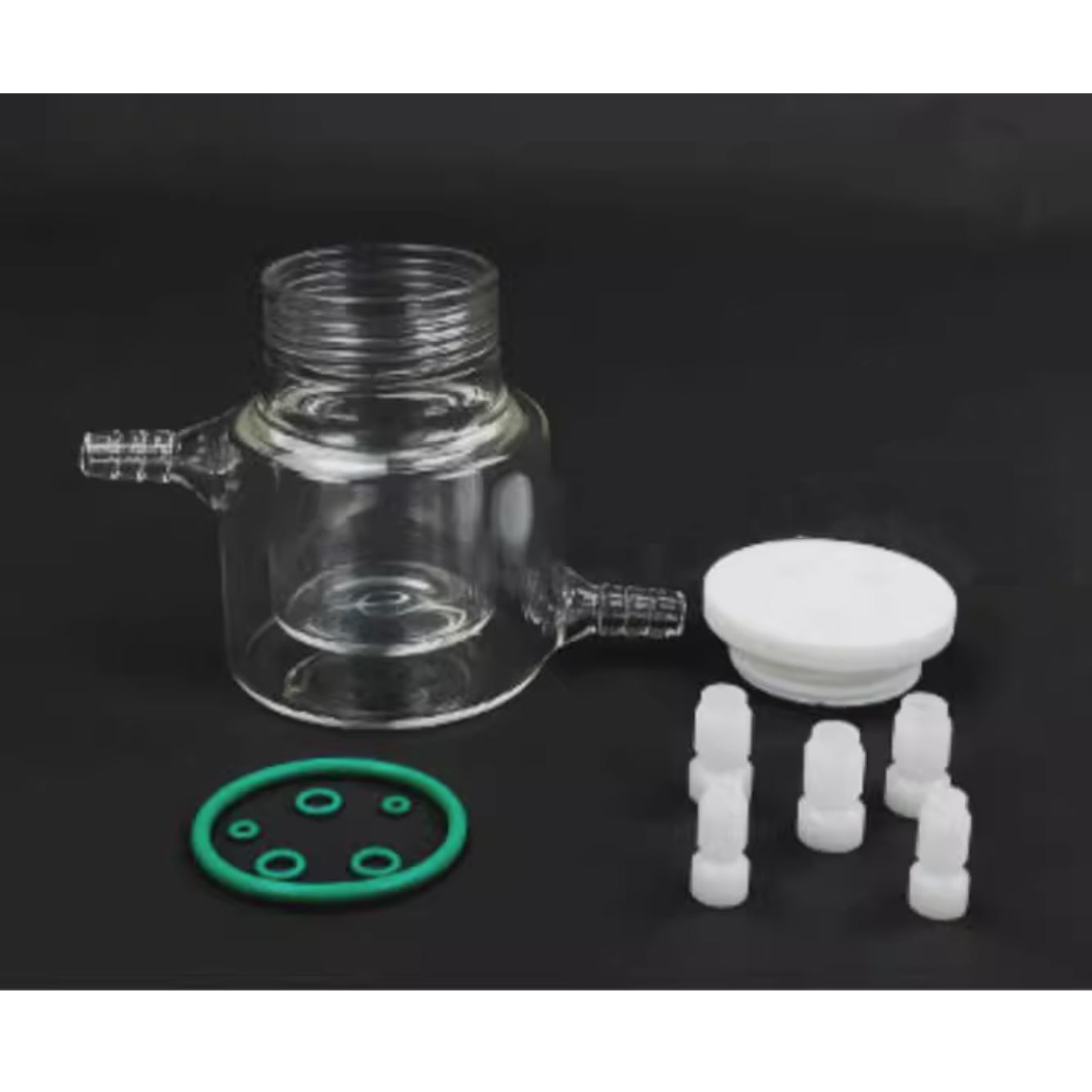

    • Sealed build adds two smaller ports for controlled-atmosphere work
    • Rated from room temperature to 60°C

    Specifications

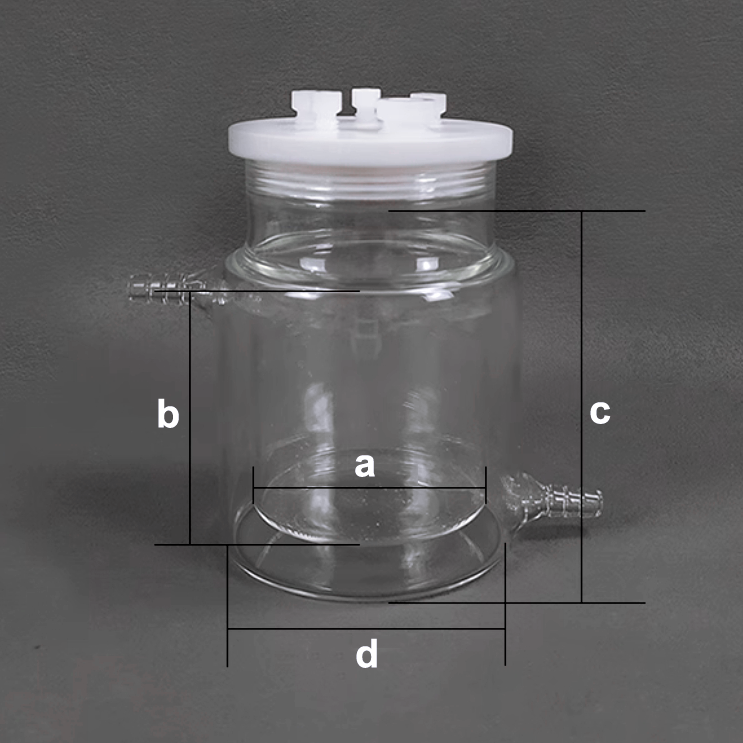

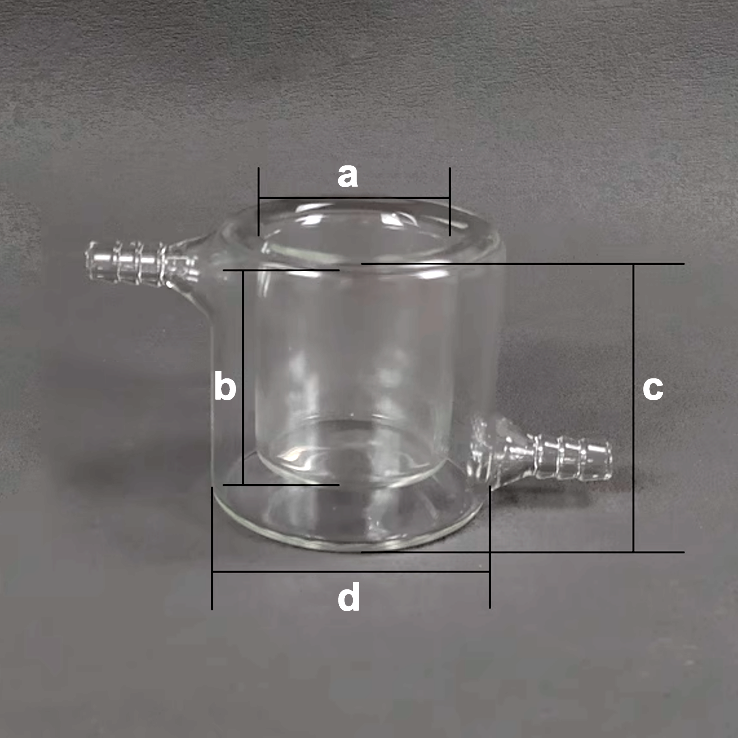

    Volume a(mm) b(mm) c(mm) d(mm)
    Unsealed 30mL Ф40 32 37 Ф45
    Unsealed 50mL Ф40 42 47 Ф45
    Unsealed 100mL Ф50 57 62 Ф55
    Unsealed 150mL Ф60 57 62 Ф65
    Unsealed 200mL Ф60 75 80 Ф65
    Unsealed 250mL Ф70 72 77 Ф75
    Unsealed 300mL Ф70 85 90 Ф75
    Unsealed 500mL Ф90 90 95 Ф96
    Unsealed 1000mL Ф110 120 125 Ф116
    Sealed 30mL Ф40 32 47 Ф45
    Sealed 50mL Ф40 42 57 Ф45
    Sealed 100mL Ф50 57 72 Ф55
    Sealed 150mL Ф60 57 72 Ф65
    Sealed 200mL Ф60 75 90 Ф65
    Sealed 250mL Ф70 72 87 Ф75
    Sealed 300mL Ф70 85 100 Ф75
    Sealed 500mL Ф90 90 135 Ф116
    Sealed 1000mL Ф110 120 135 Ф116

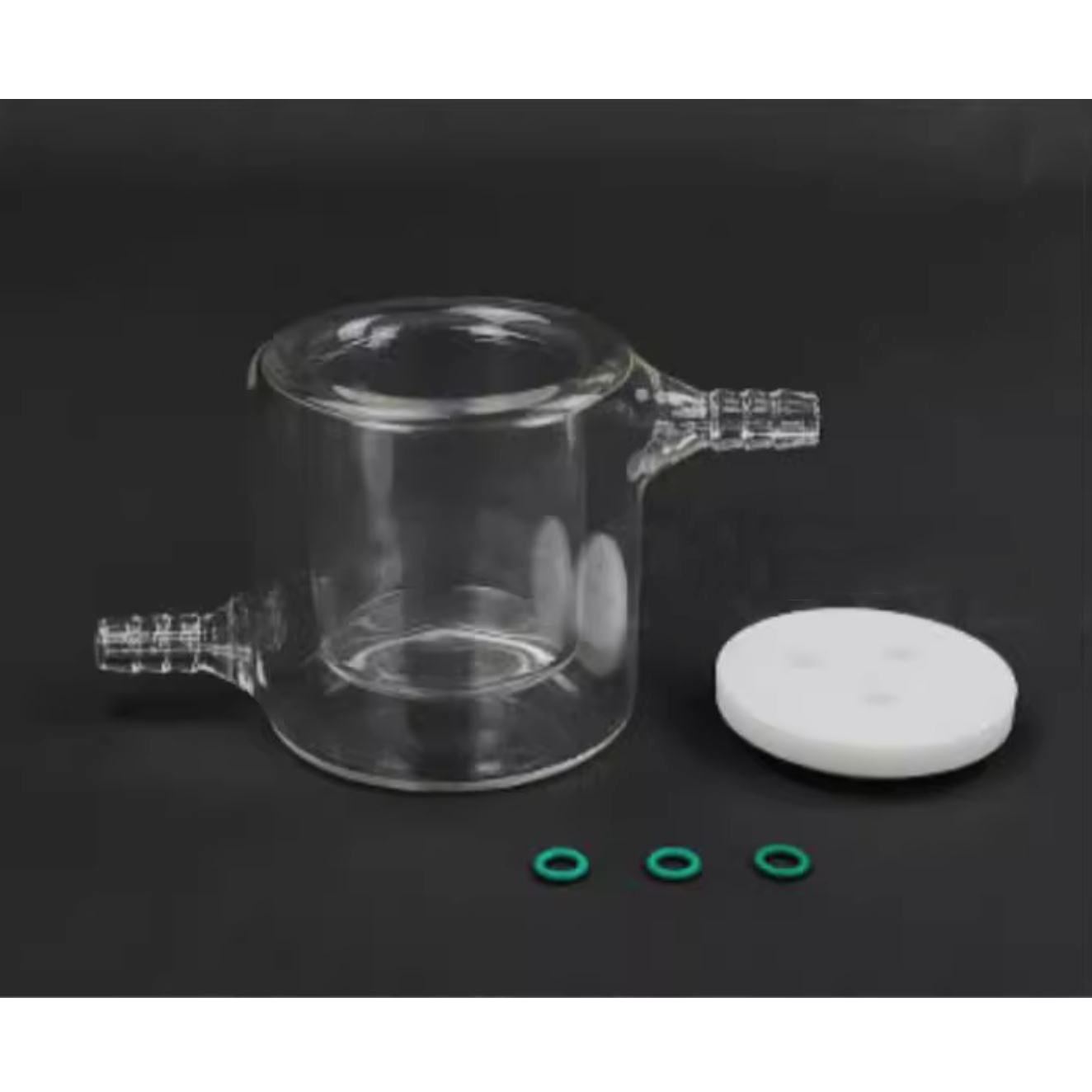

    Materials are borosilicate glass and PTFE, with Ф6.2mm hole x3 on the unsealed build and Ф6.2mm hole x3 plus Ф3.1mm hole x 2 on the sealed build. Used for temperature-held three-electrode voltammetry and bulk electrolysis.
