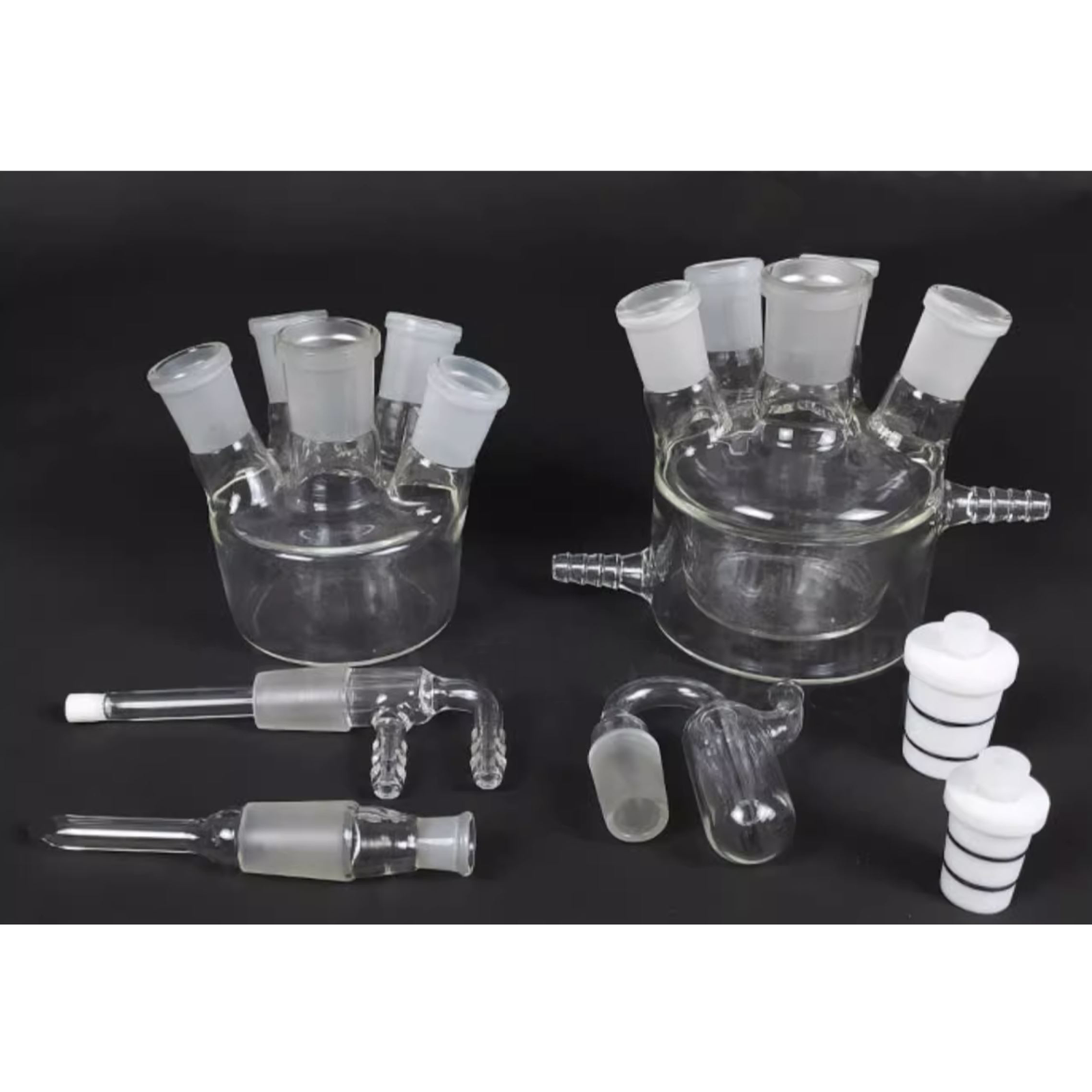

Five-port Electrochemical Cell, With/Without Water Bath

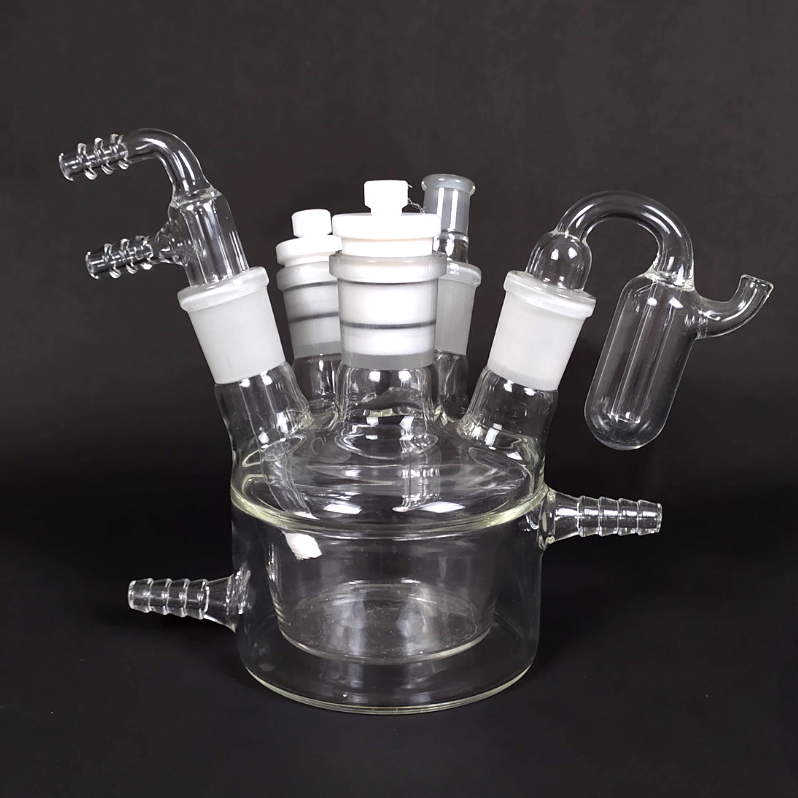

Five-port Electrochemical Cell, With/Without Water Bath – view 2
Electrochemical Cell

Five-port Electrochemical Cell, With/Without Water Bath

Price range: £306.00 through £675.00

Select an option to request a quote

Flat rate shipping £15

    A five-port electrochemical cell in borosilicate glass with a PTFE closure, giving additional access for gas lines, sensors or auxiliary electrodes alongside the standard three-electrode set. Offered with or without a water bath.

    Key Features

    • Five-port lid for added instrumentation access
    • Optional integral water bath for temperature regulation
    • Rated from room temperature to 60°C

    Specifications

    Materials Borosilicate glass and PTFE
    Temperature Room temperature to 60°C
    Ports Ф6.2mm hole x3; Ф3.1mm hole x 2
    With Water Bath volumes 50mL, 100mL, 150mL, 200mL, 250mL, 300mL, 500mL
    Without Water Bath volumes 50mL, 100mL, 150mL, 200mL, 250mL, 300mL, 500mL

    Suited to experiments needing purge lines or extra probes together with the working, counter and reference electrodes.
