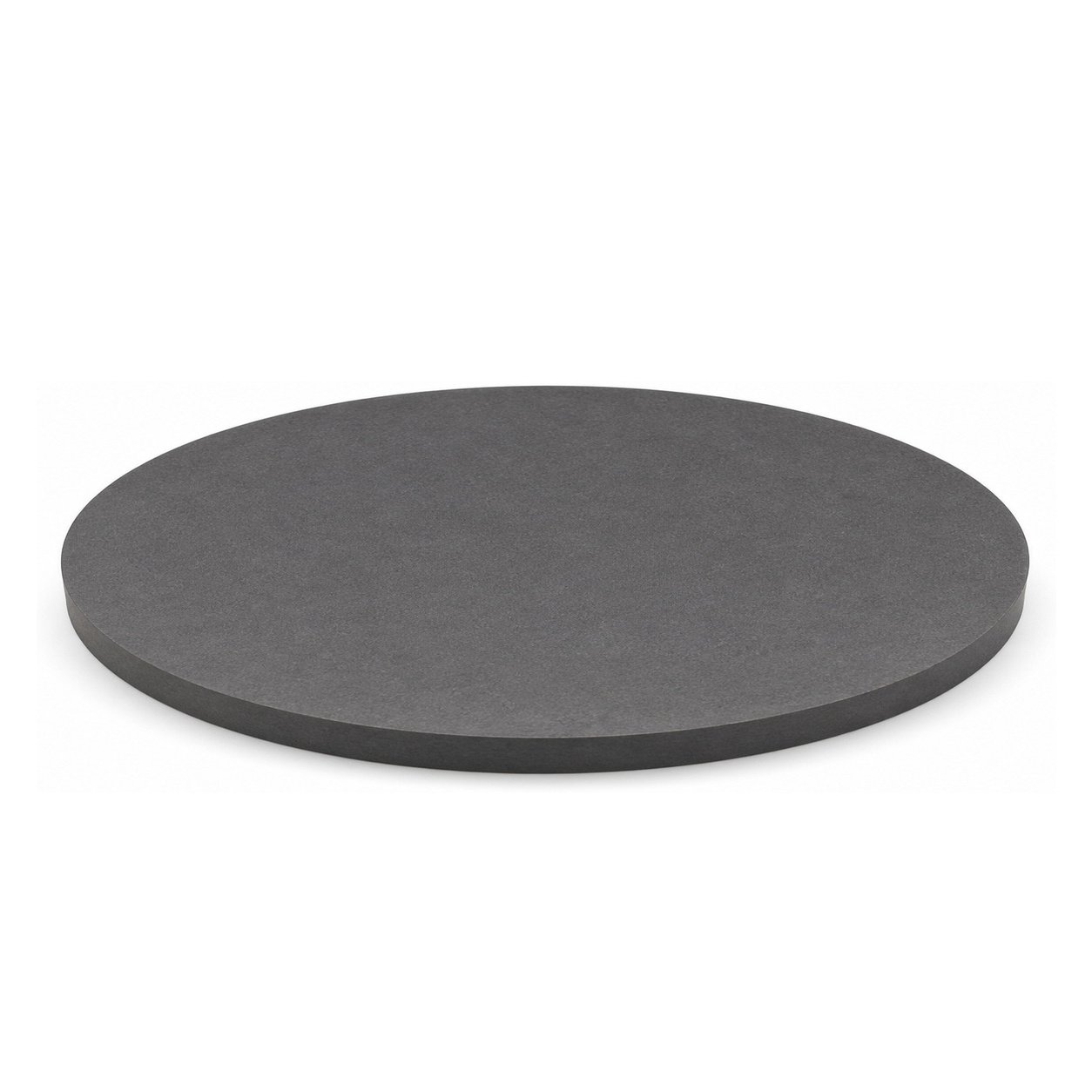

Zinc Antimonide (ZnSb) Sputtering Target, 99.99% Purity, Circular (Price Upon Request)

SKU: ZNSB-TAR-4N-CIRC

Price upon request

For research and laboratory use only. Not for medical, diagnostic or household use.

Select an option to request a quote

Zinc Antimonide (ZnSb) Sputtering Target, 99.99% Purity, Circular (Price Upon Request)

The Zinc Antimonide (ZnSb) sputtering target is a 99.99% purity semiconductor compound PVD source material for magnetron sputtering, ion sputtering, and laboratory thin-film deposition. It is supplied in circular target formats for research, development, and small-batch process work where clean handling, dimensional consistency, and specified material identity are important. Pricing is provided upon request because final cost depends on selected dimensions and current material market conditions.

Key Features

Research-Grade Source Material
Supplied as 99.99% Purity for thin-film workflows that require controlled source composition and dependable deposition behavior.

Circular Target Formats
Available in circular diameters including 1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm). Thickness and mounting options include 3 mm thick, depending on selected configuration.

Controlled Processing and Inspection
Target preparation may include material selection, forming, heat treatment, precision machining, dimensional inspection, surface finishing, cleaning, and final quality review. Composition and impurity control may be supported by analytical methods such as ICP, GDMS, carbon/sulfur analysis, oxygen/nitrogen analysis, and metallographic inspection where appropriate.

Clean Handling and Packaging
Targets are prepared for deposition use with clean surface handling and protective packaging. Store sealed in a dry environment, handle with clean gloves, and avoid direct contact with oil, dust, moisture, or other surface contamination before installation.

Technical Specifications

Material: Zinc Antimonide (ZnSb)
Purity / Composition: 99.99% Purity
Form: Circular sputtering target
Available Diameters: 1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm)
Available Thickness / Backing Options: 3 mm thick
Compatible Equipment: Single-target sputtering systems, multi-target sputtering systems, ion sputtering systems, and magnetron sputtering equipment
Packaging: Protective target packaging for laboratory shipment and storage

Common Applications

– zinc antimonide thin-film deposition; thermoelectric material research; compound semiconductor film studies; ZnSb PVD process development
– Academic, industrial, and pilot-scale thin-film process development

Specifications

MaterialZinc Antimonide (ZnSb)
Chemical formulaZnSb
Purity99.99%
FormCircular sputtering target
Available diameters1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm)
Available thickness / backing3 mm thick

Typical properties of the bulk material (literature values)

CAS number12039-35-9
Molar mass187.1 g/mol

Source: PubChem (U.S. National Library of Medicine). Reference values for the bulk substance, not test results of a specific lot.

Option 1

99.99% (4N)

Option 2

1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm)

Option 3

3 mm thick
