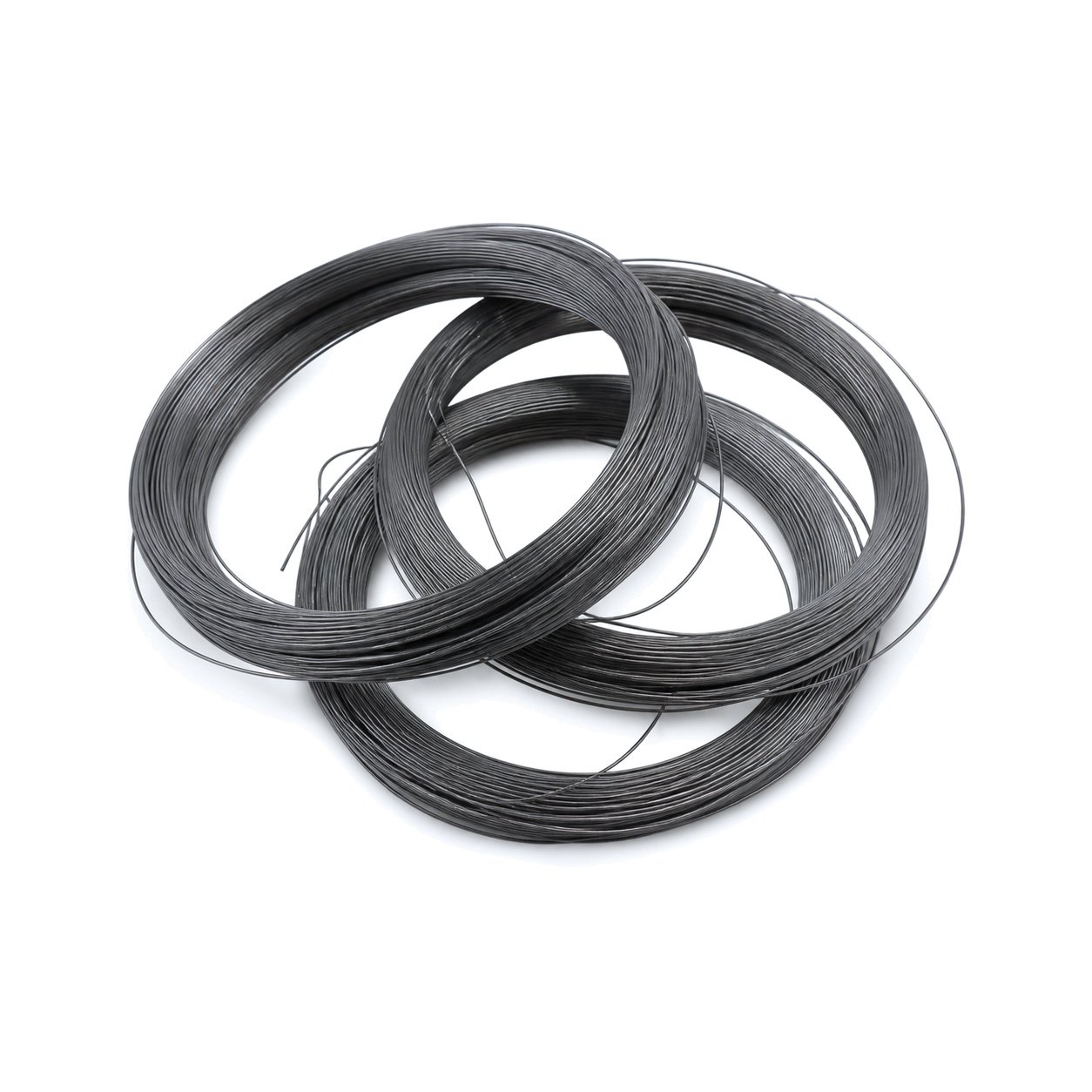

Vanadium (V) Wire, 99.95% Purity (Request Current Price)
Price upon request
For research and laboratory use only. Not for medical, diagnostic or household use.
Vanadium (V) Wire, 99.95% Purity (Request Current Price)
Vanadium (V) wire is a thin-film and materials-research source format supplied for PVD source loading, evaporation-related workflows, filament or wire studies, alloy preparation, and laboratory materials development. The wire and rod formats support cutting and weighing, fixture loading, and small-batch experimental work where material identity, purity, and clean handling are specified. Pricing requires a current quote because wire and rod costs vary with purity, diameter, package size, and material market conditions.
Features
Source Material
Available purity options include 99.95% (3N5) for research workflows that require controlled source composition.
Wire and Rod Form Factor
Available diameter and rod-size options include 0.118 in dia (3 mm) wire. Package options include 1 kg depending on selected purity and size.
Clean Handling and Storage
Store sealed in a dry environment. Handle with clean gloves or tweezers and avoid contact with oils, dust, moisture, or other contaminants before use.
Technical Specifications
Material: Vanadium (V)
Form: Wire
Purity Options: 99.95% (3N5)
Available Size Options: 0.118 in dia (3 mm) wire
Package Options: 1 kg
Category: Wires & Filaments
Typical Use: PVD source loading, wire evaporation research, filament-related studies, alloy preparation, and laboratory materials science
Quality-Control and Handling Indicators
– Analytical checks: ICP impurity/composition analysis; XRD phase verification.
– Inspection focus: non-destructive inspection; density/compactness evaluation; surface cleanliness measurement; micrometer dimensional inspection; precision caliper dimensional inspection; appearance inspection; dimensional verification.
– Handling and storage: sealed dry storage and protective packaging; clean-glove handling to avoid oil, dust, moisture, and surface contamination; careful handling to prevent compression, impact, or chipping.
– Deposition-use context: magnetron sputtering systems; ion sputtering systems; micro/nano fabrication research; semiconductor thin-film development; photovoltaic materials research.
Common Applications
– vanadium source wire for materials research
– transition-metal alloy preparation
– functional coating and thin-film studies
– laboratory-scale PVD process development
– Academic, industrial, and pilot-scale materials research
Specifications
| Material | Vanadium (V) |
|---|---|
| Purity options | 99.95% (3N5) |
| Form | Wire |
| Available sizes | 0.118 in dia (3 mm) wire |
Typical properties of the bulk material (literature values)
| Chemical formula | V |
|---|---|
| CAS number | 7440-62-2 |
| Molar mass | 50.9415 g/mol |
| Density | 6.0 g/cm³ |
| Melting point | 2183 K |
| Boiling point | 3680 K |
Source: PubChem (U.S. National Library of Medicine). Reference values for the bulk substance, not test results of a specific lot.
| Option 1 | 99.95% (3N5) |
|---|---|
| Option 2 | 0.118 in dia (3 mm) wire |
| Option 3 | 1 kg |
