Tungsten (W) Wire Basket, High-Purity (Request Current Price)

Tungsten (W) Wire Basket, High-Purity (Request Current Price)

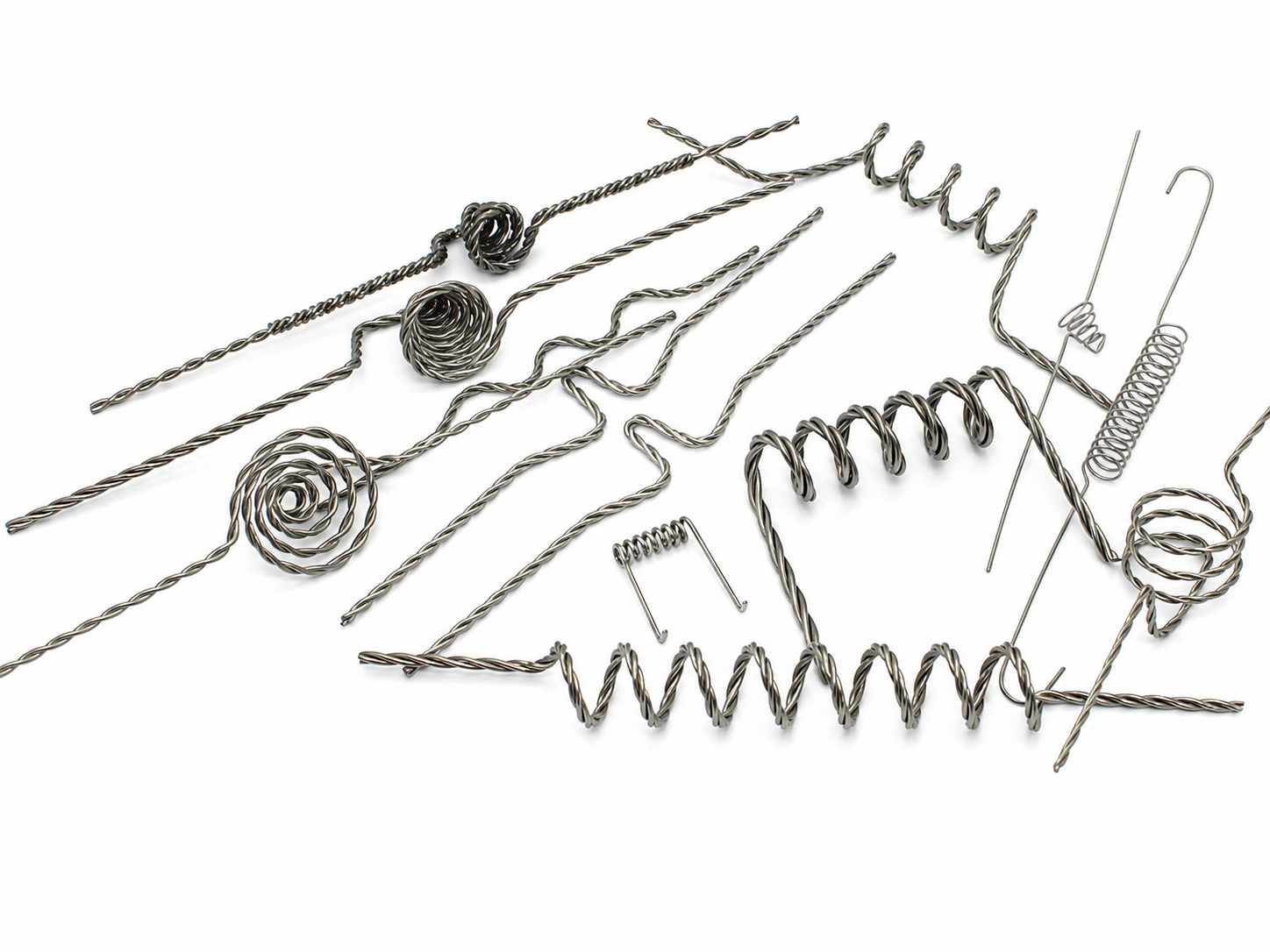

Nanostore Tungsten (W) wire basket is a deposition accessory supplied for thin-film laboratories, vacuum coating systems, thermal evaporation setups, and PVD research workflows. It is intended for clean source loading, fixture replacement, and controlled materials handling where compatibility with high-purity deposition work matters. Pricing requires a current quote because accessory cost depends on configuration, package size, and current material availability.

Key Features

Deposition Accessory for Lab Vacuum Systems
Designed for use as a wire basket in evaporation, PVD, and research coating workflows.

Material and Configuration Options
Available material or purity options include Material: Tungsten (W). Configuration options include Two 0.0295 in (0.75 mm) wires; end leads 3.94 in (10 cm); center basket 1.18 in (3 cm); depth 0.591 in (1.5 cm); 3-4 center turns, Three 0.0315 in (0.8 mm) wires; center section 1.97 in (5 cm); overall length 3.74 in (9.5 cm); 8 center turns, Straight cylindrical basket; three 0.0197 in (0.5 mm) wires; end leads 3.94 in (10 cm); depth 0.591 in (1.5 cm); diameter 0.591 in (1.5 cm); 3-4 turns.

Clean Handling and Storage
Store sealed in a dry environment. Handle with clean gloves or tweezers and avoid oils, dust, moisture, or surface contamination before installation.

Technical Specifications

Material: Tungsten (W)
Accessory Type: Wire Basket
Purity / Material Options: Material: Tungsten (W)
Available Capacity or Dimension Options: Two 0.0295 in (0.75 mm) wires; end leads 3.94 in (10 cm); center basket 1.18 in (3 cm); depth 0.591 in (1.5 cm); 3-4 center turns, Three 0.0315 in (0.8 mm) wires; center section 1.97 in (5 cm); overall length 3.74 in (9.5 cm); 8 center turns, Straight cylindrical basket; three 0.0197 in (0.5 mm) wires; end leads 3.94 in (10 cm); depth 0.591 in (1.5 cm); diameter 0.591 in (1.5 cm); 3-4 turns
Package Options: each
Category: Deposition Accessories
Typical Use: Thermal evaporation, PVD setup, vacuum coating, source containment, and laboratory deposition support

Quality-Control and Handling Indicators

Additional technical indicators reflected from the source product page:

– Analytical checks: ICP impurity/composition analysis.
– Inspection focus: dimensional verification.

Common Applications

– thermal evaporation source support
– small source charge holding in vacuum coating systems
– lab-scale metal evaporation setup
– custom PVD fixture and consumable replacement
– Academic, industrial, and pilot-scale thin-film research
