Tungsten (W) Evaporation Boat, High-Purity
Deposition Accessories

Tungsten (W) Evaporation Boat, High-Purity (Request Current Price)

Price upon request

Select an option to request a quote

Flat rate shipping £15

    Tungsten (W) Evaporation Boat, High-Purity (Request Current Price)

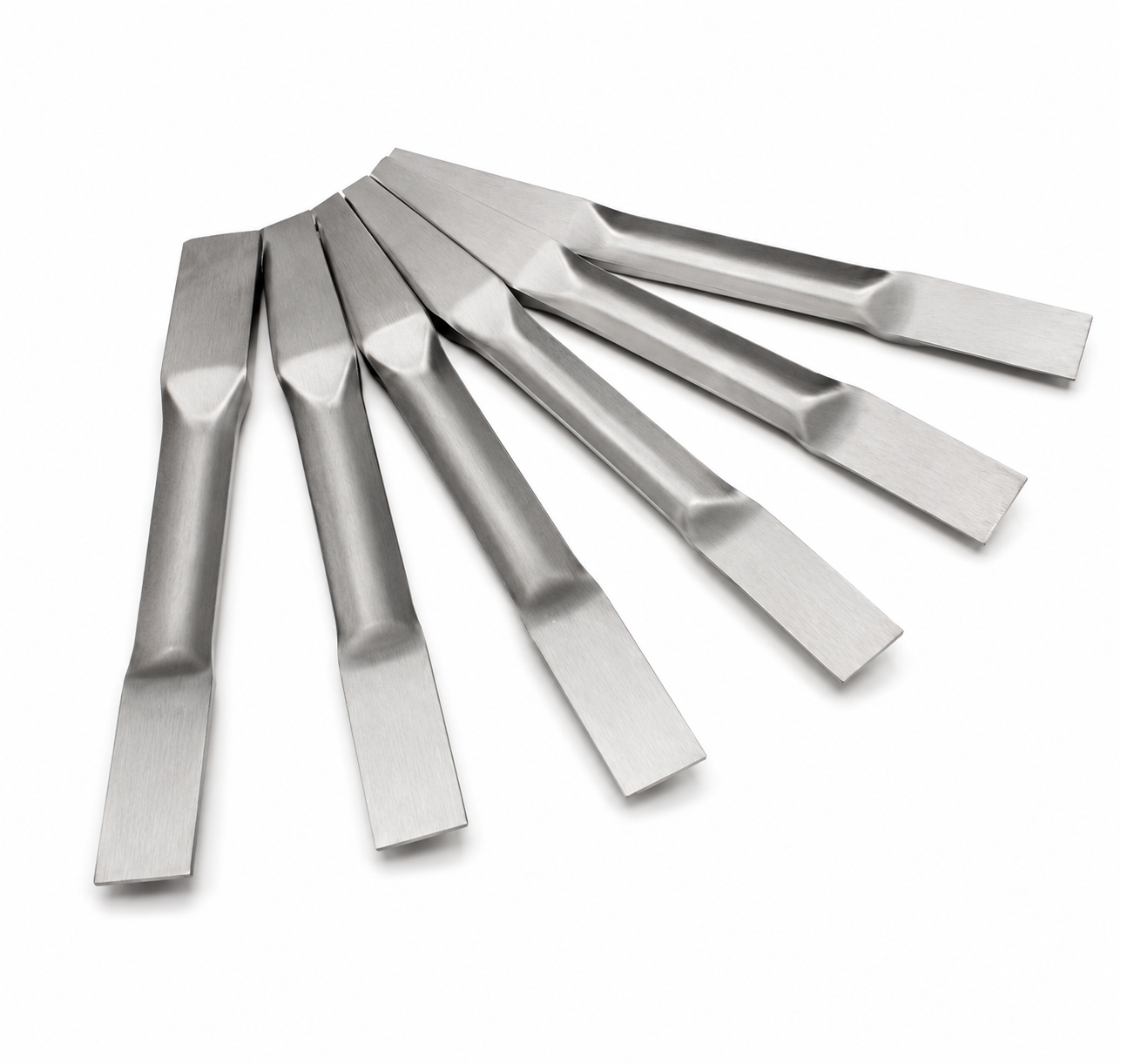

    Nanostore Tungsten (W) evaporation boat is a deposition accessory supplied for thin-film laboratories, vacuum coating systems, thermal evaporation setups, and PVD research workflows. It is intended for clean source loading, fixture replacement, and controlled materials handling where compatibility with high-purity deposition work matters. Pricing requires a current quote because accessory cost depends on configuration, package size, and current material availability.

    Key Features

    Deposition Accessory for Lab Vacuum Systems
    Designed for use as a evaporation boat in evaporation, PVD, and research coating workflows.

    Material and Configuration Options
    Available material or purity options include Material: Tungsten (W). Configuration options include 3.94 in (100 mm) x 0.394 in (10 mm) x 0.00787 in (0.2 mm); round-bottom channel; channel length 1.97 in (50 mm); channel depth 0.0787 in (2 mm), 3.94 in (100 mm) x 0.394 in (10 mm) x 0.0118 in (0.3 mm); round-bottom channel; channel length 1.97 in (50 mm); channel depth 0.0787 in (2 mm).

    Clean Handling and Storage
    Store sealed in a dry environment. Handle with clean gloves or tweezers and avoid oils, dust, moisture, or surface contamination before installation.

    Technical Specifications

    Material: Tungsten (W)
    Accessory Type: Evaporation Boat
    Purity / Material Options: Material: Tungsten (W)
    Available Capacity or Dimension Options: 3.94 in (100 mm) x 0.394 in (10 mm) x 0.00787 in (0.2 mm); round-bottom channel; channel length 1.97 in (50 mm); channel depth 0.0787 in (2 mm), 3.94 in (100 mm) x 0.394 in (10 mm) x 0.0118 in (0.3 mm); round-bottom channel; channel length 1.97 in (50 mm); channel depth 0.0787 in (2 mm)
    Package Options: each
    Category: Deposition Accessories
    Typical Use: Thermal evaporation, PVD setup, vacuum coating, source containment, and laboratory deposition support

    Quality-Control and Handling Indicators

    Additional technical indicators reflected from the source product page:

    – Analytical checks: ICP impurity/composition analysis.
    – Inspection focus: dimensional verification.

    Common Applications

    – thermal evaporation source loading
    – high-temperature refractory-metal boat use
    – vacuum coating process development
    – PVD lab consumable replacement
    – Academic, industrial, and pilot-scale thin-film research

    Option 1

    Material: Tungsten (W)
    Option 2

    3.94 in (100 mm) x 0.394 in (10 mm) x 0.00787 in (0.2 mm); round-bottom channel; channel length 1.97 in (50 mm); channel depth 0.0787 in (2 mm), 3.94 in (100 mm) x 0.394 in (10 mm) x 0.0118 in (0.3 mm); round-bottom channel; channel length 1.97 in (50 mm); channel depth 0.0787 in (2 mm)
    Option 3

    each
