SiTe₂ Crystals

Price range: £499.99 through £1,099.99

Select an option to request a quote

Flat rate shipping £15

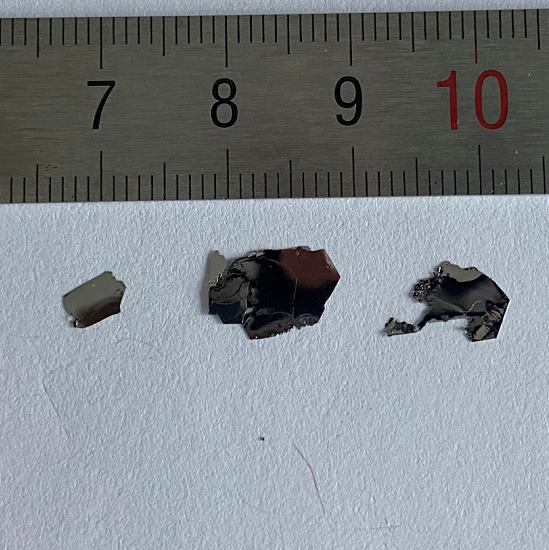

    SiTe₂ Crystals

    SiTe₂ is a layered van der Waals material with unique electronic, optical, and thermoelectric properties. Its semiconducting behavior, strong anisotropy, and excellent light absorption make it a promising material for optoelectronics, energy storage, and 2D material research. Our SiTe₂ crystals are synthesized using the Chemical Vapor Transport (CVT) method, ensuring high purity, high crystallinity, and reliable performance for advanced research applications.

    Sample Size Options:
    Crystals larger than 10 mm²
    Crystals larger than 25 mm²
    Crystals larger than 100 mm²

    Material Properties:
    Layered van der Waals Structure: Enables exfoliation into thin layers for 2D studies.
    Semiconducting Behavior: Features a tunable bandgap suitable for optoelectronic applications.
    High Optical Absorption: Strong light absorption in the visible-to-infrared range.
    Thermoelectric Performance: High Seebeck coefficient and low thermal conductivity.

    Crystal Structure:
    Type: Monoclinic layered structure
    Features: Cleavable into thin sheets for nanoscale research and device fabrication.

    Degree of Exfoliation:
    Ease of Use: Readily exfoliates into monolayers or few-layer sheets for advanced research and device applications.

    Other Characteristics:
    Optoelectronic Potential: High photoluminescence and strong absorption for photonic devices. Energy

    Applications: Promising for thermoelectric devices and energy conversion technologies.
    Environmental Stability: Stable under controlled conditions, with moderate sensitivity to air and moisture.

    Applications:
    Optoelectronics:
    Ideal for photodetectors, light-emitting devices, and solar cells.
    2D Material Research:
    Perfect for exfoliation into thin layers and integration with van der Waals heterostructures. Energy

    Applications:
    Suitable for thermoelectric devices and photocatalysis. Quantum Materials Research:
    Enables studies of low-dimensional semiconducting and optoelectronic properties. Sensors:
    High sensitivity to environmental stimuli, making it suitable for gas and chemical sensing.

    Option 1

    > 10 mm², > 100 mm², > 25 mm²
