Single/Double-Sided Shiny Copper Foil
Current Collector

Single/Double-Sided Shiny Copper Foil

Price range: £203.99 through £334.99

Select an option to request a quote

Flat rate shipping £15

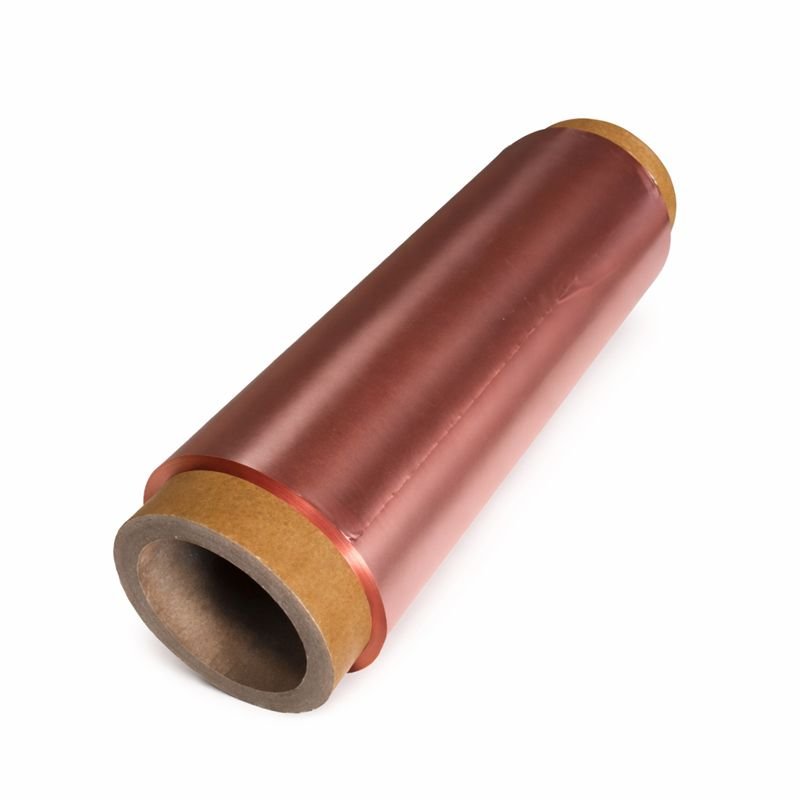

    Single or Double-Sided Shiny Copper Foil (Lithium Battery Grade)
    Application: Anode Carrier and Current Collector for Lithium-ion Batteries
    Product Overview: Specialized electrolytic copper foil designed for lithium-ion batteries, featuring high purity (99.98%) and a surface passivation layer.
    Purity: > 99.8% (Typical: > 99.98%)
    Areal Density: 85-90 g/m² (Typical: 88 g/m²)
    Mass Resistivity: < 0.17 Ohm-g/m² (Typical: 0.168 Ohm-g/m²) Thickness Tolerance: 0-2 µm (Typical: 0-1 µm) Tensile Strength: > 30 kg/mm² (Typical: 41 kg/mm²)
    Elongation at Room Temperature: > 3.5% (Typical: 4.2%)
    Elongation at High Temperature: > 4.0% (Typical: 5.5%)
    Surface Roughness (Ra): < 0.4 µm (Typical: 0.22-0.35 µm)
    Surface Roughness (Rz): < 3.0 µm (Typical: 1.6 µm)
    Oxidation Resistance (130°C, 10 min): Pass
    Approximate Length per kg:
    – 180 mm Width: ~63 m/kg
    – 280 mm Width: ~41 m/kg

    Option 1

    9 um x 180 mm, Double-Sided Shiny, 5 kg/roll, 9 um x 180 mm, Single-Sided Shiny, 2 kg/roll
