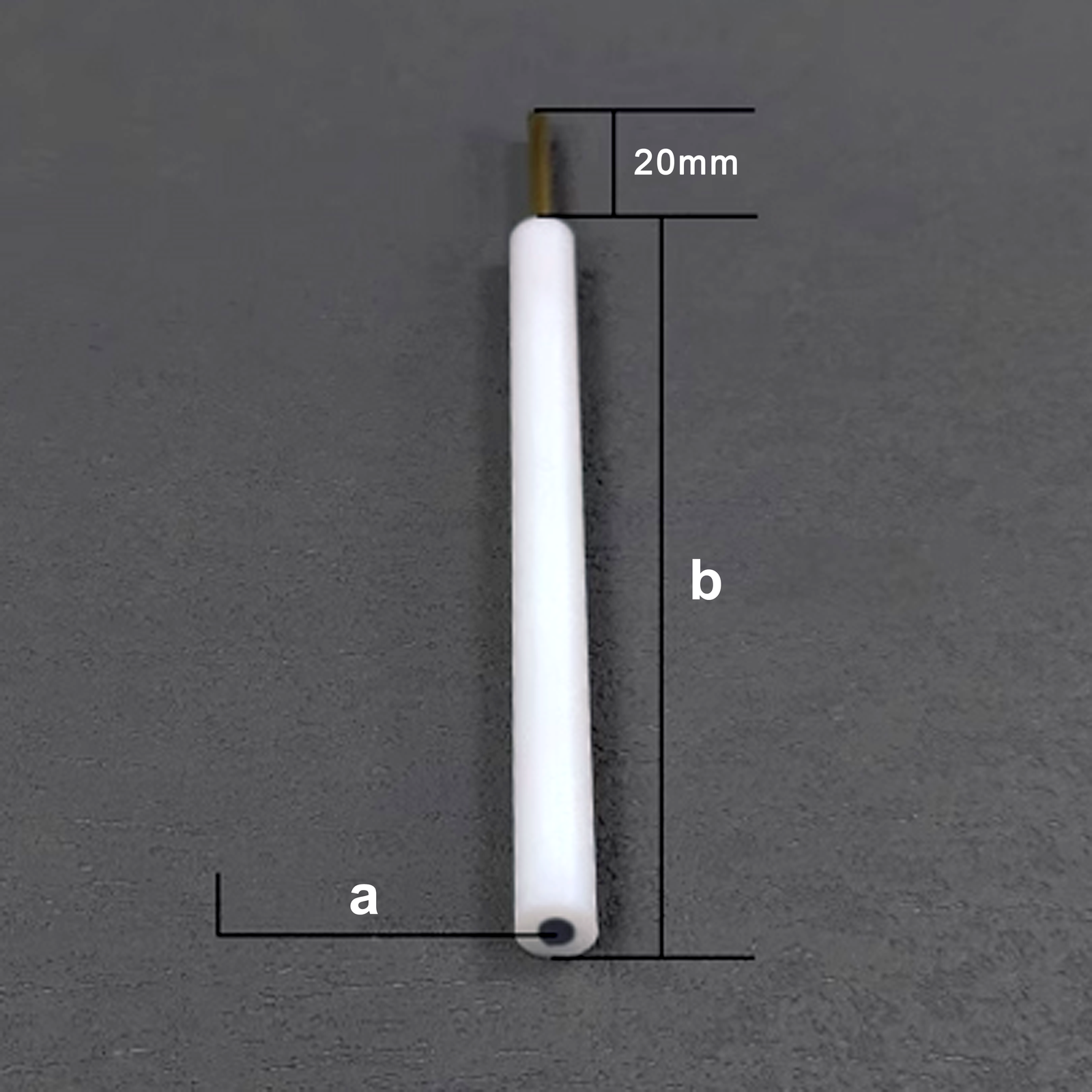

The Pt Disc Electrode is a platinum disc working electrode set in a PTFE insulating rod with a gold-plated binding post. The recessed, polishable platinum face gives a defined electrode area for reproducible voltammetry, and several disc and rod combinations are available.
Key Features
- Platinum disc working surface
- Insulation material: Polytetrafluoroethylene (PTFE)
- Gold-plated binding post
Specifications
| Insulation | Polytetrafluoroethylene (PTFE) |
| PTFE rod diameter and length | Φ6 * 80mm; Φ8 * 80mm; Φ10* 80mm |
| Binding post length | 20mm |
| Disc / rod options | Ф3, Ф6*80; Ф2, Ф6*80; Ф1, Ф6*80; Ф0.5, Ф6*80; Ф6, Ф10*80; Ф5, Ф8*80; Ф4, Ф8*80 |
Platinum disc electrodes are used for cyclic voltammetry, electrocatalysis, and quantitative kinetic studies where an inert, well-defined disc surface that can be polished between runs is required.
