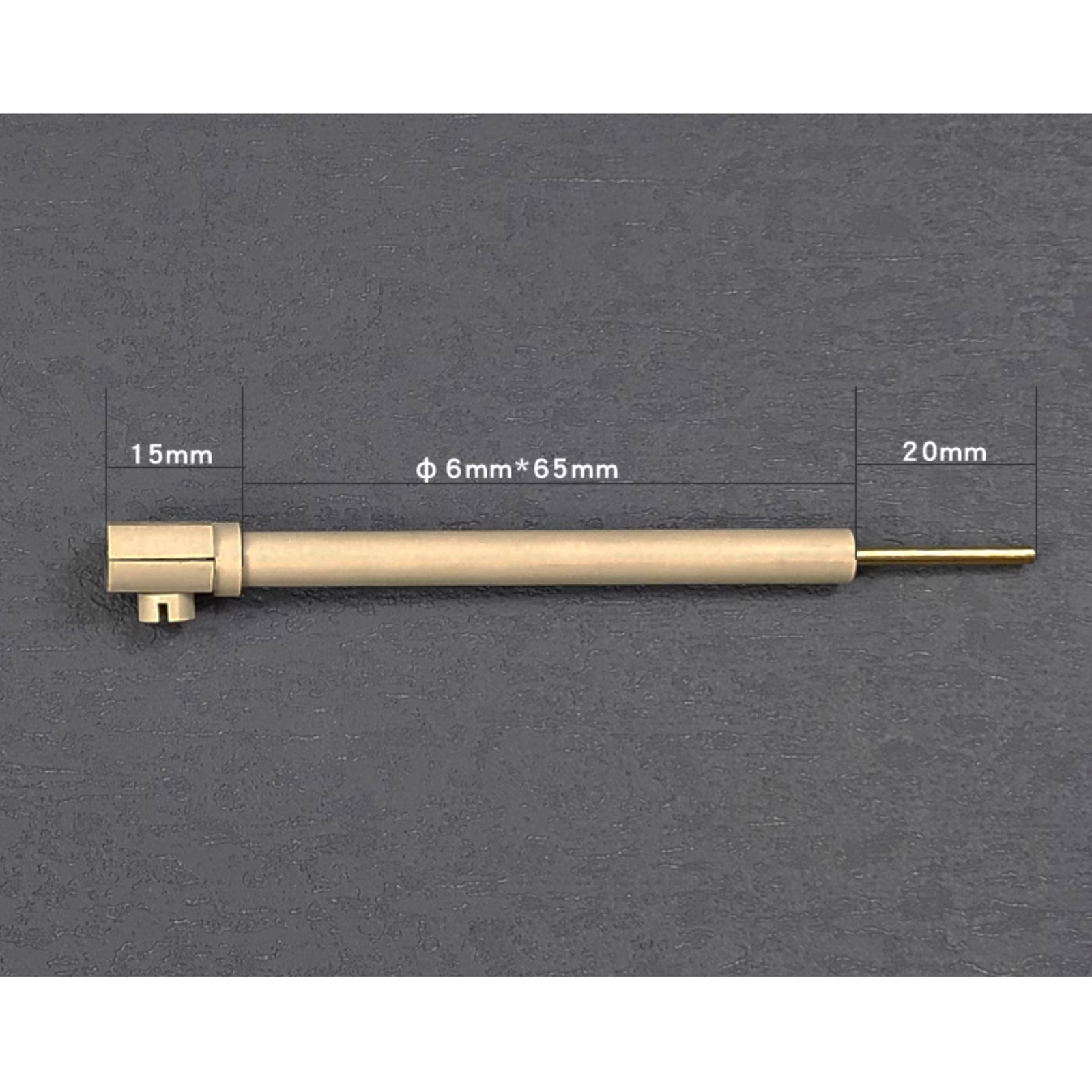

An electrode holder with a platinum contact and PEEK insulation, rated to a higher operating temperature, for clamping thin sheet or foil working electrodes. Platinum forms the current path and PEEK isolates it from the electrolyte.
Key Features
- Platinum contact part for a clean electrical connection
- PEEK insulation for chemical resistance and elevated-temperature service
- Clamp geometry for thin planar samples
Specifications
| Contact part | Platinum |
| Insulation materials | PEEK |
| Operating Temperature Range | Room Temperature ~ 80°C |
| Clamping Thickness | 0.1-3mm |
Used to hold flat metal, semiconductor, or coated substrates as working electrodes in voltammetry and electrolysis, including warmer electrolyte systems.
