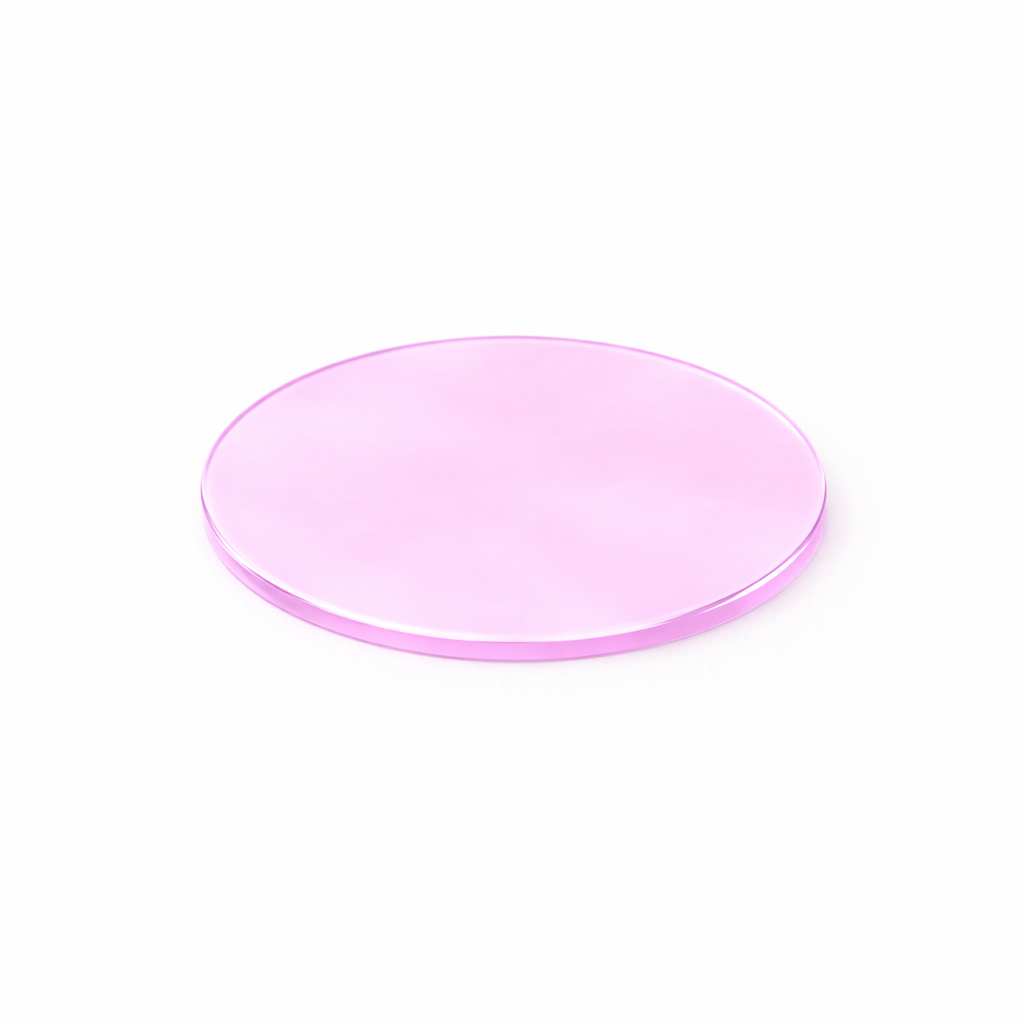

Nd:YAG (1.0 at.%) Single Crystal Wafers
Price range: £202.99 through £214.99
Flat rate shipping £15
Nd:YAG (1.0 at.%) Single Crystal Wafers
Main Specifications
Dimensional tolerance: Dia: < +/-0.05 mm
Flatness: λ/8 @633nm
Surface fineness: 10/5
Flatness 30 arc sec.
Verticality 5 arc min
Coating film AR coating, HR Coating
Reflect R<0.2%@1064, HR:R>99.5%@1064, R<5%@808nm Clear aperture >95% central area
| Option 1 | Dia. 10 mm × 2 mm, Double-Side Polished, Dia. 10 mm × 2 mm, Single-Side Polished |
|---|
