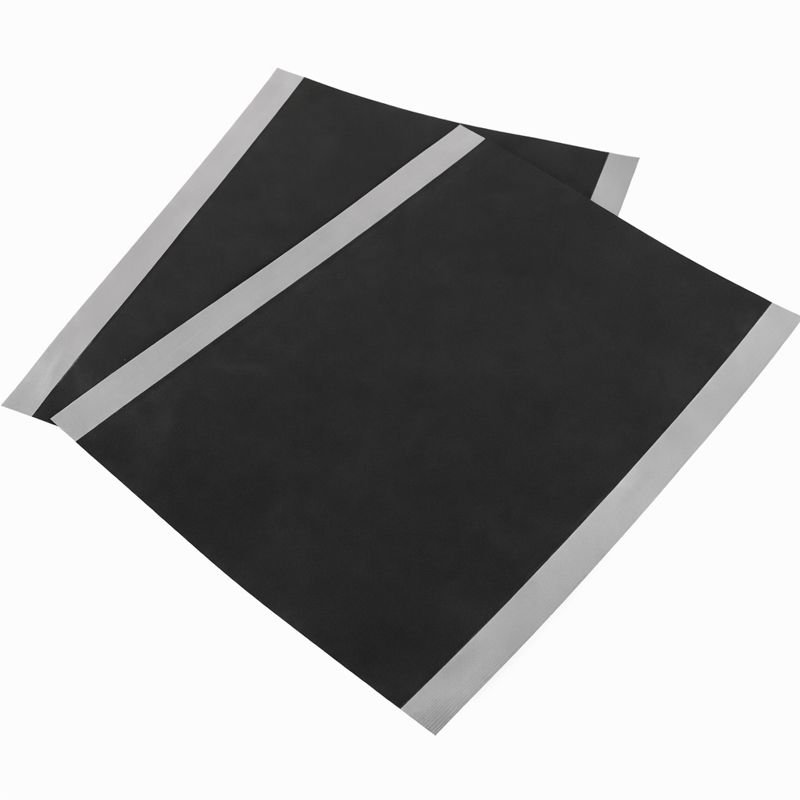

NCM 9-Series (Nickel Cobalt Manganese) Cathode Sheet
NCM 9-Series (Nickel Cobalt Manganese) Cathode Sheet – view 2
Lithium-ion Battery Cathode Materials

NCM 9-Series (Nickel Cobalt Manganese) Cathode Sheet

Price range: £167.99 through £178.99

Select an option to request a quote

Flat rate shipping £15

    NCM 9-Series (Nickel Cobalt Manganese) Cathode Sheet (Single/Double-Sided Coated Aluminum Foil)
    Application: Cathode Material for Lithium-ion Batteries
    Product Overview: This product features a Nickel Cobalt Manganese (NCM 9-Series) coating on an aluminum current collector. It is designed for high-performance lithium-ion battery research.

    Key Specifications (Double-Sided Reference):
    Sheet Dimensions: 241 mm L x 200 mm W
    Coated Area Dimensions: 241 mm L x 175 mm W (12.5 mm uncoated margin on each side)
    Coating Type: Double-Sided
    Current Collector Thickness: 16 µm
    Coating Areal Density: 21.0 ± 0.4 mg/cm² (Total Loading)
    Current Collector Areal Density: 4.22 mg/cm²
    Active Material Mass Percentage: 95.5% (Subject to actual product label)
    Compaction Density: 3.4 ± 0.1 g/cm³
    Specific Capacity: 202 mAh/g (Reference)
    Working Voltage Range: 3.0 V – 4.3 V
    Packaging Unit: 5 sheets/pack

    Storage & Handling:
    – Storage: Store in a strictly sealed container (e.g., glove box or 60°C drying oven).
    – Preparation: Refer to standard active material calculation protocols.

    Option 1

    Double-Sided Electrode Sheet, 5 sheets/pack, Single-Sided Electrode Sheet, 5 sheets/pack
