Proton Exchange Membrane (PEM) sheet
Fuel Cell Materials

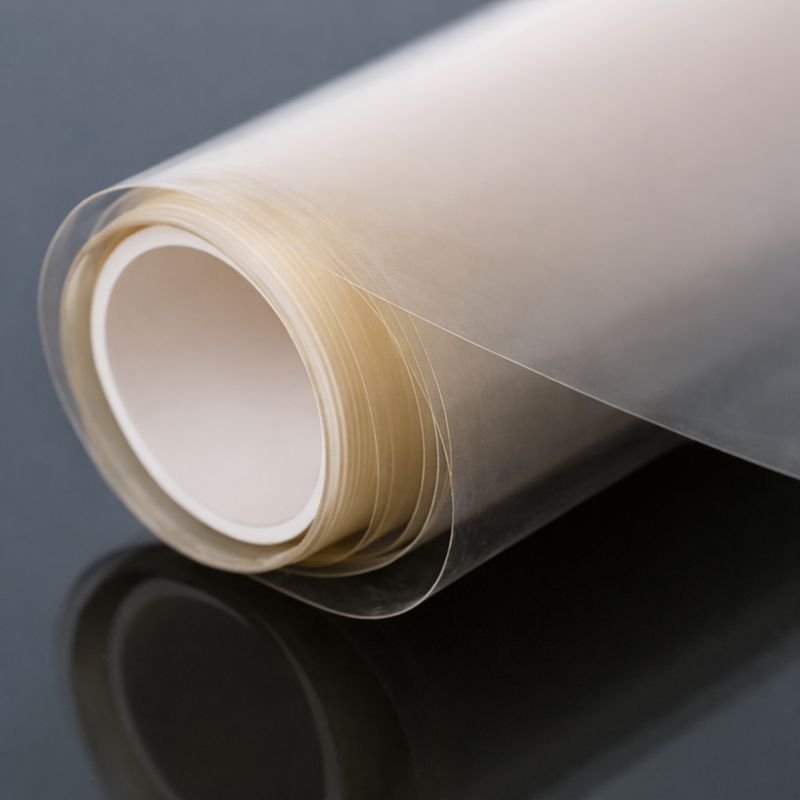

N-117 Proton Exchange Membrane (PEM)

£143.99

Flat rate shipping £15

    N-117 Proton Exchange Membrane (PEM)
    Application: Proton Exchange Membrane for Hydrogen Production via Water Electrolysis
    Product Overview: This high-quality, domestically manufactured PEM is optimized for use in water electrolysis cells. It is characterized by high ionic conductivity, excellent mechanical stability, and a high acid capacity.

    Key Specifications:
    Model: N-117
    Thickness: 175 µm
    Basis Weight: 345 g/m²
    Tensile Strength: >= 28 MPa
    Elastic Modulus: >= 400 MPa
    Elongation at Break: >= 120%
    Specific Gravity: 1.97
    Ionic Conductivity: >= 0.100 S/cm
    Acid Capacity: 1.00 ± 0.05 meq/g
    Water Content: 5.0 ± 3.0%
    Water Uptake: 50.0 ± 5.0%
    Packaging Unit: 100 mm x 100 mm

    Storage Conditions:
    – Prior to use, the sealed membrane roll must be placed in the operating environment for 24 hours to acclimatize.

    Option 1

    100 mm x 100 mm
