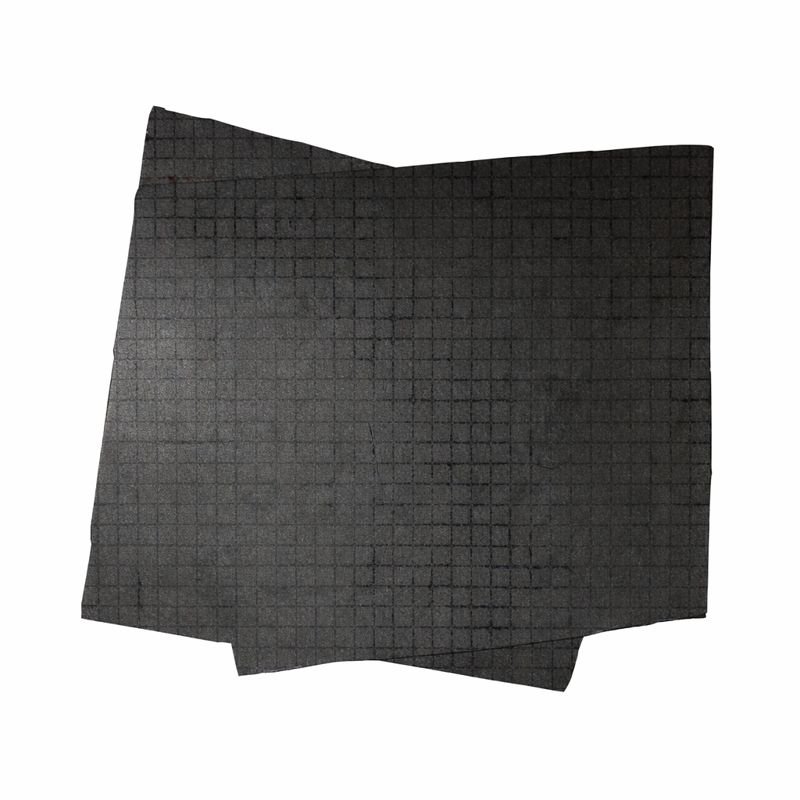

HCP020 Carbon Paper (Fuel Cell GDL Material)
Fuel Cell Materials

HCP020 Carbon Paper (Fuel Cell GDL Material)

£83.99

Select an option to request a quote

Flat rate shipping £15

    HCP020 Carbon Paper (Fuel Cell GDL Material)
    Application: Gas Diffusion Layer (GDL) for Fuel Cells and Electrolyzers
    Product Overview: This carbon paper is a high-performance Gas Diffusion Layer material, available in distinct hydrophilic (N) and hydrophobic (P) surface treatments to optimize water and gas transport within electrochemical cells.

    Specifications by Model:
    – HCP020N (Hydrophilic)
    – Dimensions (L x W): 21 cm x 20 cm
    – Thickness: 0.2 mm
    – Porosity: 80%
    – Areal Resistance: <= 11 mOhm-cm²
    – Air Permeability (Pressure Drop): < 11 mmH₂O – Minimum Bending Radius: > 10 cm

    – HCP020P (Hydrophobic)
    – Dimensions (L x W): 21 cm x 20 cm
    – Thickness: 0.2 mm
    – Porosity: 75%
    – Areal Resistance: <= 16 mOhm-cm²
    – Air Permeability (Pressure Drop): < 12 mmH₂O – Minimum Bending Radius: > 10 cm

    Option 1

    HCP020N (Hydrophilic), 21 cm x 20 cm x 0.2 mm T / 1 Sheet, HCP020P (Hydrophobic), 21 cm x 20 cm x 0.2 mm T / 1 Sheet
