Lithium Manganese Oxide (LMO) Cathode Sheet
Lithium-ion Battery Cathode Materials

Lithium Manganese Oxide (LMO) Cathode Sheet

£119.99

Select an option to request a quote

Flat rate shipping £15

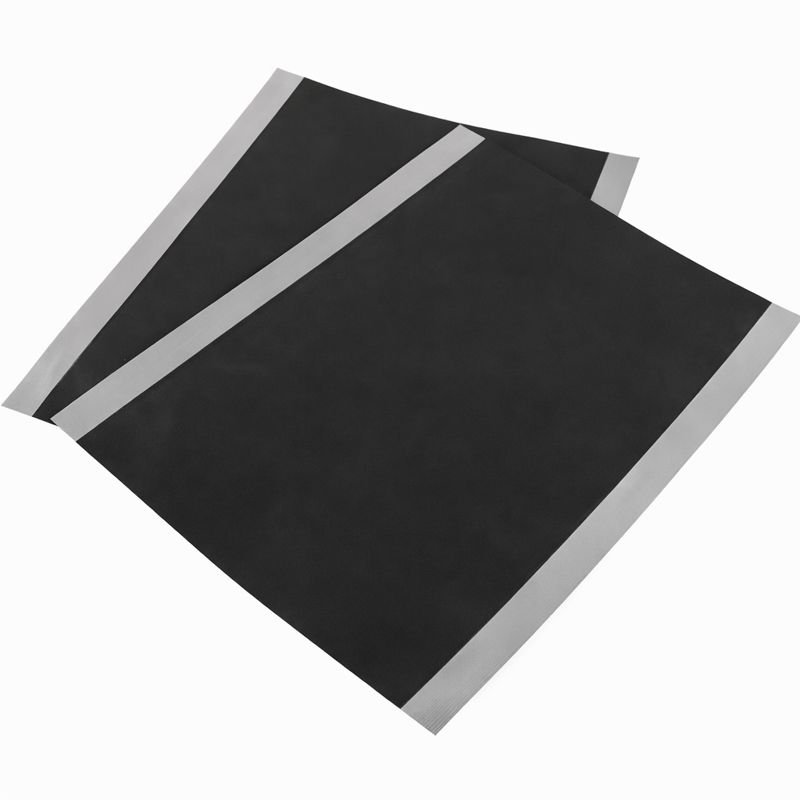

    Lithium Manganese Oxide (LMO) Cathode Sheet (Single/Double-Sided Coated Aluminum Foil)
    Application: Cathode Material for Lithium-ion Batteries
    Product Overview: This LMO-coated electrode sheet is processed with calendering and is designed for high-performance lithium-ion battery research. The sheet exhibits excellent stability across its working voltage range.

    Key Specifications (Single-Sided Reference):
    Sheet Dimensions: 241 mm L x 200 mm W
    Coated Area Dimensions: 241 mm L x 175 mm W (12.5 mm uncoated margin on each side)
    Coating Type: Single-Sided (Calendered)
    Current Collector Thickness: 16 µm
    Coating Areal Density: 17.0 ± 0.20 mg/cm²
    Current Collector Areal Density: 4.22 mg/cm²
    Compaction Density: 2.3 ± 0.1 g/cm³
    Active Material Mass Percentage: 94% (Subject to actual product label)
    Specific Capacity: 110 mAh/g (0.1C Reference)
    Working Voltage Range: 3.0 V – 4.3 V

    Storage & Handling:
    – Storage: Store in a strictly sealed container within a glove box or a drying oven at 60°C.
    – Preparation: Refer to standard active material calculation protocols.
    Packaging Unit: 5 sheets/pack

    Option 1

    Double-Sided Coated, 241 mm L x 200 mm W x 144 um T, 5 sheets/pack, Single-Sided Coated, 241 mm L x 200 mm W x 80 um T, 5 sheets/pack
