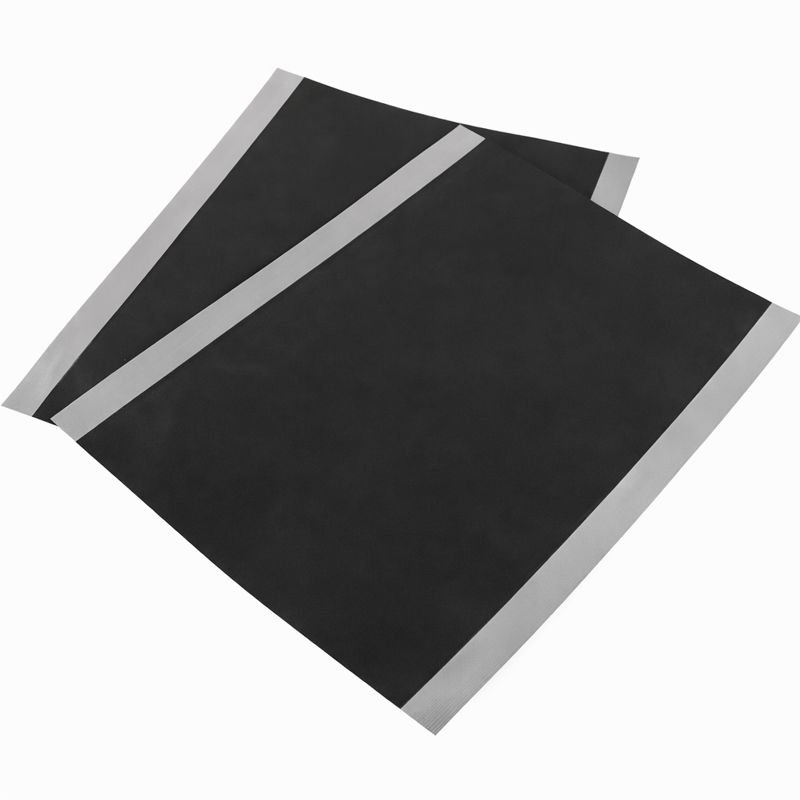

Lithium Cobalt Oxide (LCO) Cathode Sheet
Lithium-ion Battery Cathode Materials

Lithium Cobalt Oxide (LCO) Cathode Sheet

Price range: £124.99 through £134.99

Select an option to request a quote

Flat rate shipping £15

    Product: Single/Double-Sided Lithium Cobalt Oxide (LCO) Cathode Sheet
    Application: Cathode Material for Lithium-ion Batteries
    Product Overview: This product features a Lithium Cobalt Oxide (LCO) coating on an aluminum current collector, processed with high-precision calendering. Available in both single-sided and double-sided coating configurations to suit various lithium-ion battery research requirements.

    Key Specifications (Single-Sided Reference):
    Sheet Dimensions: 241 mm L x 200 mm W
    Coated Area Dimensions: 241 mm L x 175 mm W (12.5 mm uncoated margin on each side)
    Coating Type: Single-Sided (Calendered)
    Current Collector Thickness: 16 µm
    Coating Areal Density: 11.5 ± 0.2 mg/cm² (Per Side)
    Current Collector Areal Density: 4.22 mg/cm²
    Active Material Mass Percentage: 96% (Subject to actual product label)
    Compaction Density: 3.5 ± 0.1 g/cm³
    Specific Capacity: 180 mAh/g (0.1C)
    Working Voltage Range: 3.0 V – 4.5 V
    Packaging Unit: 5 sheets/pack
    Storage & Handling:
    – Storage: Store in a strictly sealed container within a glove box or a drying oven at 60°C.
    – Preparation: Refer to standard active material calculation protocols.
    Note: Thickness specifications provided (50-70 µm) typically refer to the single-sided version; double-sided versions will vary in total thickness.

    Option 1

    Double-Sided Coated, 5 sheets/pack, Single-Sided Coated, 5 sheets/pack
