Etched Aluminum Electrode Foil 20CB
Current Collector

Etched Aluminum Electrode Foil 20CB

£513.99

Flat rate shipping £15

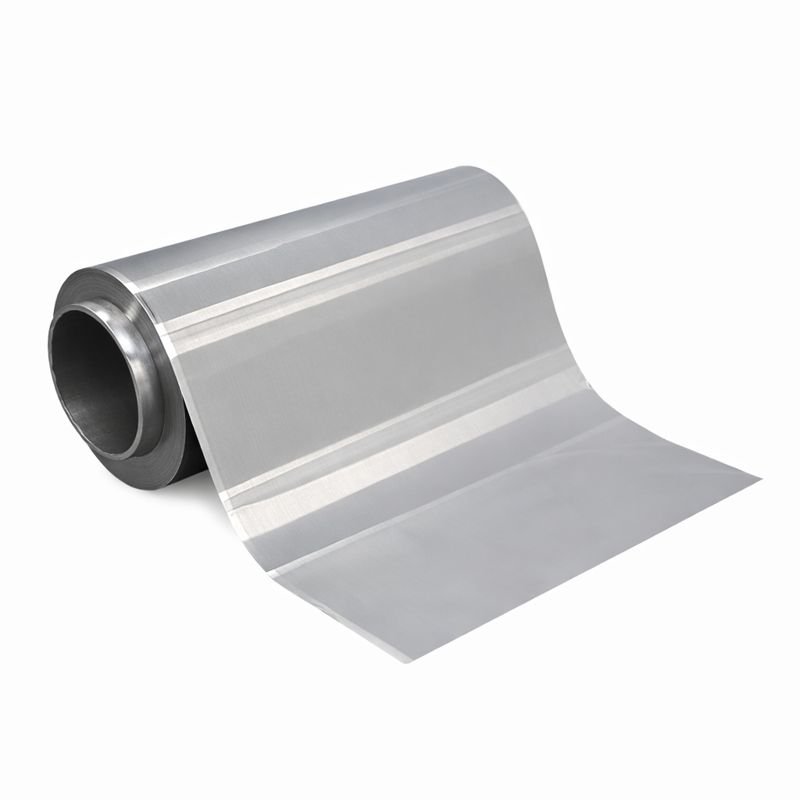

    Product Name: Etched Aluminum Electrode Foil
    Application: Electrode Material for Capacitors and Batteries
    Product Overview: This product is a high-performance etched aluminum foil. It features a specific capacitance of 8.9 uF/cm² and high purity aluminum substrate. The foil is processed to ensure minimal residual chlorine and excellent mechanical stability.
    Nominal Thickness: 20.3 µm (Specification Tolerance: 20 ± 3 µm)
    Width: 500 mm
    Base Aluminum Purity: >= 99.7%
    Specific Capacitance: 8.9 uF/cm²
    Tensile Strength: >= 15.6 N/cm (>= 1.60 kgf/cm)
    Bending Strength: >= 70 cycles
    Residual Chlorine Concentration: <= 1.0 mg/m²
    Packaging Unit: Roll
    Standard Weights: Approx. 1.9 kg per roll

    Option 1

    1.9 kg/roll
