Cu₃Se₂ is a layered semiconductor material with unique electronic and optical properties. Known for its strong optical absorption and excellent thermoelectric performance, Cu₃Se₂ is a promising material for energy conversion, optoelectronics, and advanced 2D material research.

Sample Size Options:

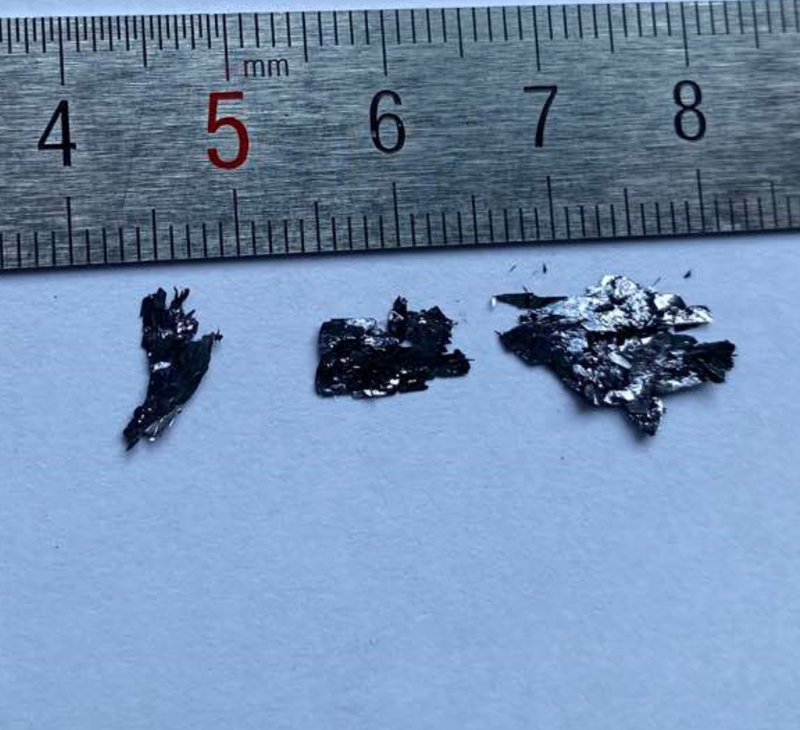

Crystals larger than 10 mm²
Crystals larger than 25 mm²
Crystals larger than 100 mm²

Material Properties:
Layered Structure: Facilitates exfoliation into thin layers for 2D material research.
Semiconducting Behavior: Exhibits a tunable bandgap for optoelectronic applications.
Thermoelectric Performance: Features excellent thermoelectric efficiency for energy applications.
High Optical Absorption: Efficient light absorption in the visible and infrared range.

Crystal Structure:
Type: Monoclinic or tetragonal layered structure (depending on synthesis conditions).
Features: Cleavable into thin sheets, ideal for nanoscale studies and device fabrication.

Degree of Exfoliation:
Ease of Use: Readily exfoliated into monolayers or few-layer sheets for advanced applications.

Other Characteristics:
Energy Conversion Potential: High efficiency in thermoelectric and photovoltaic applications.
Optoelectronic Properties: Strong light absorption for photodetectors and solar cells.
Environmental Stability: Stable under controlled conditions, with moderate sensitivity to oxidation.

Applications:
Optoelectronics:
Ideal for photodetectors, light-emitting devices, and solar cells. Energy

Applications:
Suitable for thermoelectric devices and solar energy conversion.
2D Material Research:
Excellent for exploring exfoliated layers and integrating into van der Waals heterostructures. Quantum Materials Research:
Enables studies of low-dimensional semiconducting and thermoelectric properties. Sensors:
High sensitivity to environmental changes, making it suitable for chemical and thermal sensing applications.
