Celgard 2400 Polypropylene (PP) Battery Separator
Battery Separator

Celgard 2400 Polypropylene (PP) Battery Separator

£143.99

Flat rate shipping £15

    Celgard 2400 Polypropylene (PP) Battery Separator
    Application: Separator for Lithium-ion Batteries
    Product Overview: Celgard 2400 is a monolayer polypropylene (PP) separator designed for lithium-ion batteries. It offers excellent resistance to acids, bases, and most chemicals. The separator features a uniform pore structure, high chemical and thermal stability, and superior oxidation resistance, ensuring excellent cycling and trickle charge performance. Its Zero TD shrinkage minimizes internal short circuits and enhances high-temperature dimensional stability.
    Material: Polypropylene (PP)
    Thickness: 25 µm
    Width: 60 mm
    Length: 100 m
    Porosity: 41%
    Air Permeability (Gurley): 620 seconds
    Tensile Strength (MD – Machine Direction): 1420 kg/cm²
    Tensile Strength (TD – Transverse Direction): 140 kg/cm²
    Thermal Shrinkage (105°C, 1 hour):
    – MD: 2.3%
    – TD: 0%
    Puncture Strength: 450 gf

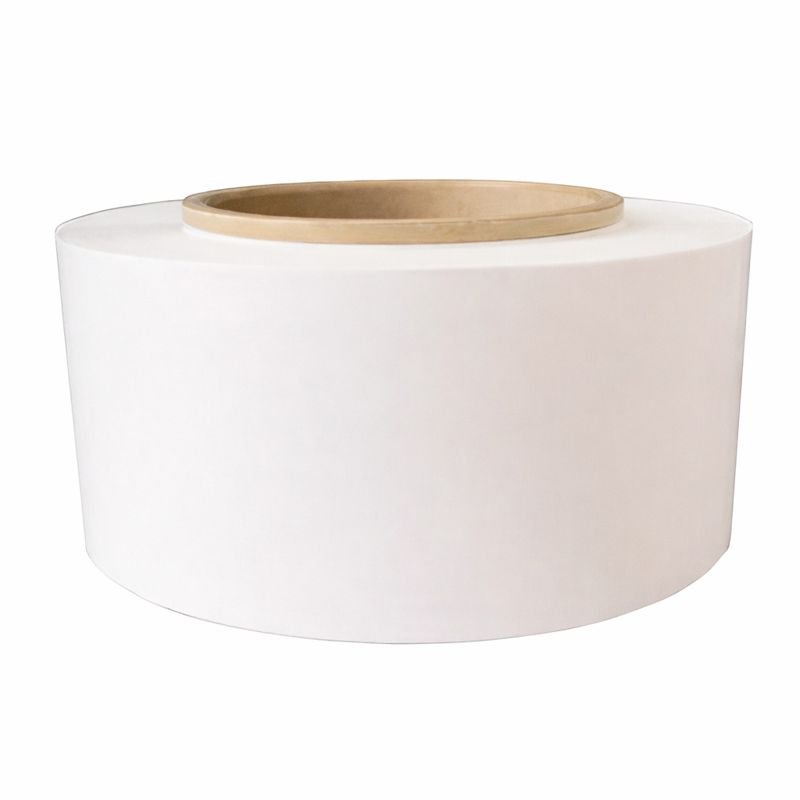

    Packaging Unit: Roll (6 m²/roll)

    Option 1

    25 um T x 60 mm W x 100 m L, 6 m^2/roll
