Battery Separator Discs (PE/PP)
Battery Separator

Battery Separator Discs (PE/PP)

£107.99

Select an option to request a quote

Flat rate shipping £15

    Battery Separator Discs (PE / PP)
    Application: Separator for Lithium-ion and Sodium-ion Batteries

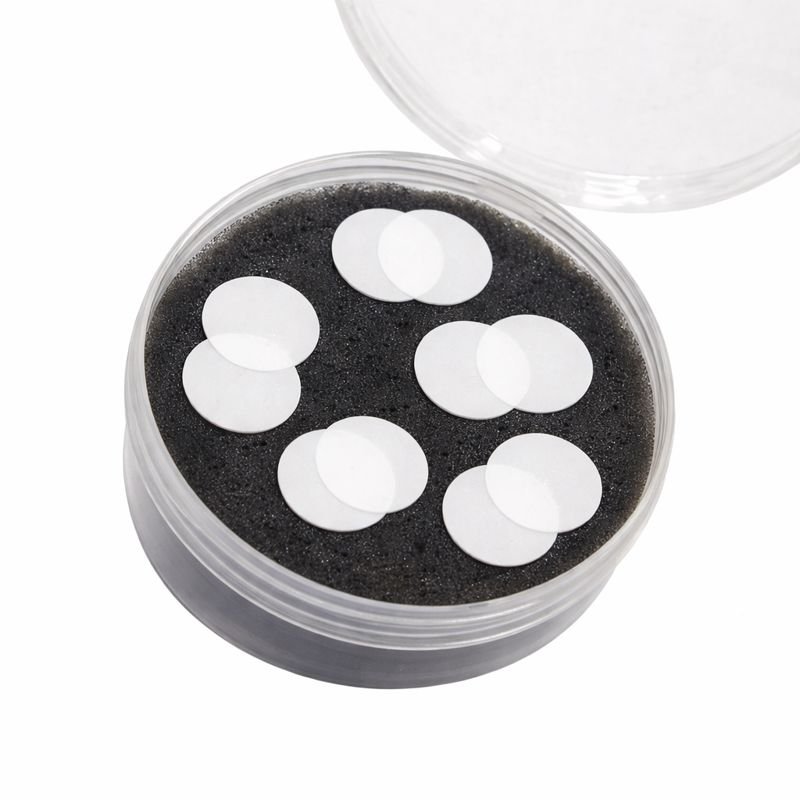

    Product Description: Overview: These membrane discs are designed for use in coin cell batteries to physically separate the positive and negative electrodes, preventing short circuits while facilitating ion migration.
    Key Specifications (PP Separator):
    – Material: Polypropylene (PP) Film – Thickness: 16 ± 2 µm
    – Air Permeability: 200 ± 100 s/100ml
    – Porosity: 40 ± 5% – Puncture Strength: >= 200 g
    – Thermal Shrinkage (90°C / 2 H):
    – MD: <= 3.0%
    – TD: <= 1.0% – Tensile Strength: – MD: >= 1000 Kgf/cm² – TD: >= 100 Kgf/cm²

    Option 1

    Dia. 16.2 mm x 16 um T, PP, 100 discs/box, Dia. 19 mm x 16 um T, PP, 100 discs/box, Dia. 19 mm x 20 um T, PE, 100 discs/box
