The Au Plate Electrode is a gold plate working electrode mounted on a PTFE insulating rod with a gold-plated binding post, offered across a wide range of plate dimensions. The large, inert gold surface suits surface electrochemistry and applications that benefit from a high working area.
Key Features
- Gold plate working surface
- Insulation material: Polytetrafluoroethylene (PTFE)
- Gold-plated binding post
Specifications
| Insulation | Polytetrafluoroethylene (PTFE) |

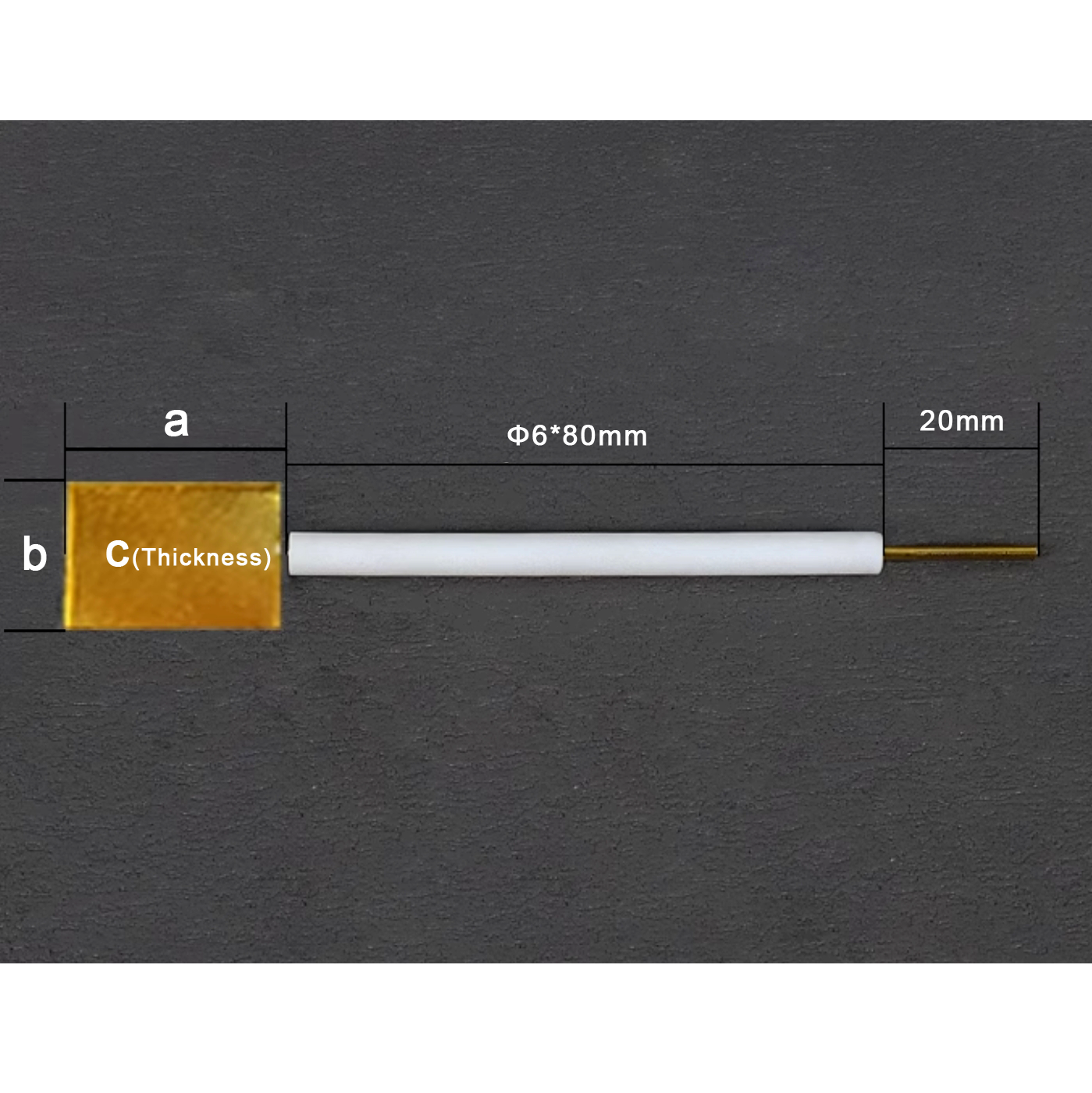

| PTFE rod diameter and length | Ф6*80mm |
| Binding post length | 20mm |
| Plate sizes | 5x10x0.2, 5x10x0.1, 5x5x0.2, 5x5x0.1, 10x30x0.1, 10x20x0.2, 10x20x0.1, 10x15x0.2, 10x15x0.1, 10x10x0.3, 10x10x0.2, 10x10x0.1, 25x25x0.1, 20x30x0.2, 20x30x0.1, 20x20x0.2, 20x20x0.1, 15x20x0.1, 15x15x0.2, 15x15x0.1, 10x30x0.2, 30x30x0.1, 25x25x0.2 |
Gold plate electrodes are used for self-assembled monolayer studies, spectroelectrochemistry, electrodeposition, and general surface electrochemistry where a large, inert gold surface is required.
