Ag/AgCl Reference Electrode (PTFE Covered)
£147.00
Dispatch normally within 1 business day; carrier transit normally 6–8 business days (7–9 business days in total). See Shipping Policy and Returns Policy.
For research and laboratory use only. Not for medical, diagnostic or household use.
This Ag/AgCl reference electrode is PTFE covered, and it is used in acidic and alkaline solutions.
Features
- Ag/AgCl reference system
- PTFE covered body
- For acidic/alkaline solution
Specifications

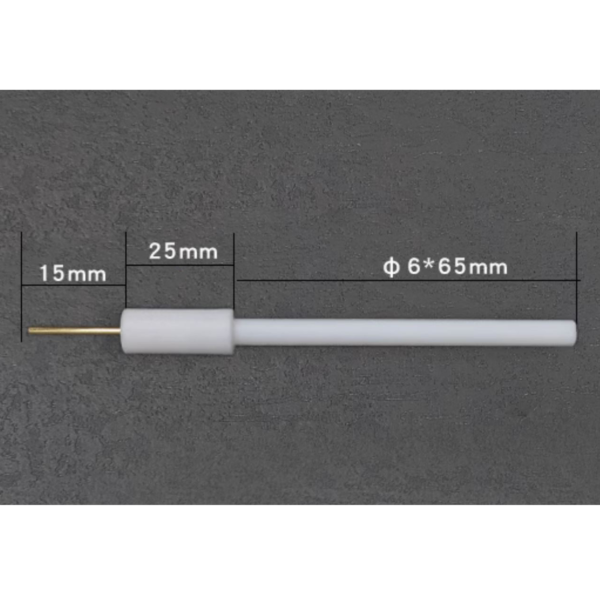

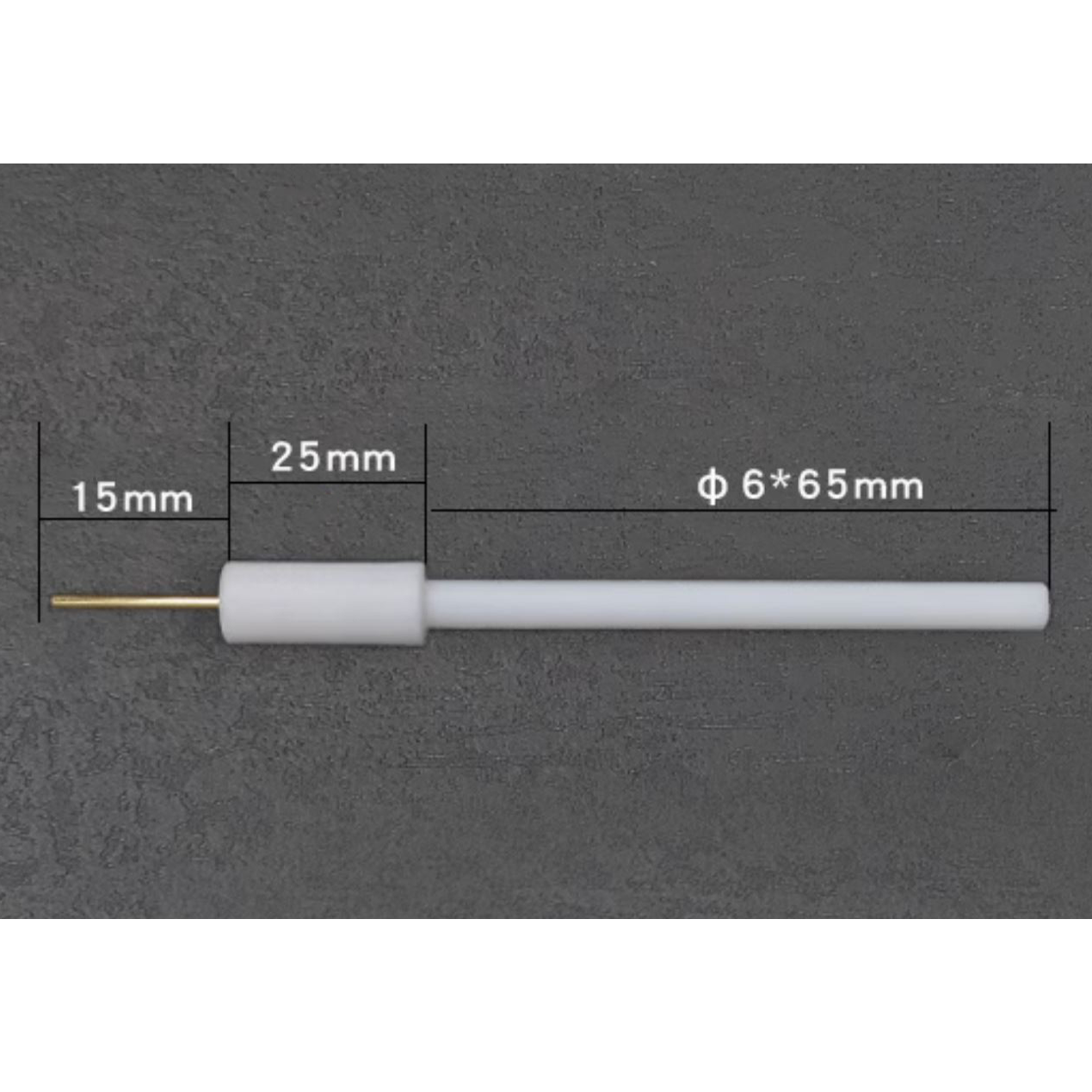

| Size | Ф6*65mm, 25mm, 25mm |
The PTFE covering provides chemical resistance for measurements in acidic or alkaline electrolytes, where an unprotected body would be attacked, supporting reference measurements across a range of aqueous conditions.
The Ag/AgCl reference system relies on equilibrium between silver, silver chloride and chloride ions to establish a reference potential. This provides the comparison point for measuring another electrode’s potential. The reference potential depends on the chloride environment, which is part of the chemistry underlying this type of reference system.
Ag/AgCl reference electrodes are commonly used in potentiometry and voltammetry. In three-electrode measurements, the reference electrode provides the potential comparison, while the working and counter electrodes form the current-carrying path.
