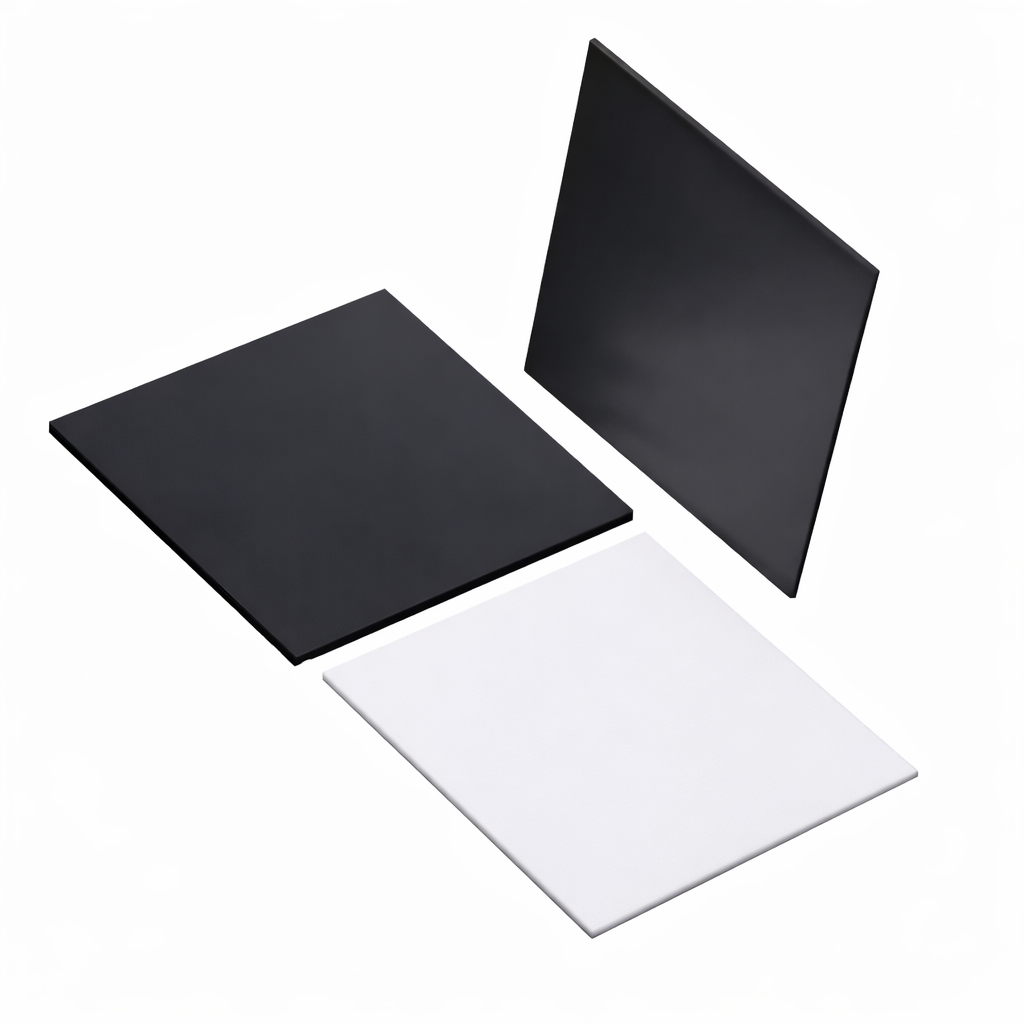

Zirconia (ZrO2) Ceramic Substrates, 100 × 100 mm
ZrO₂

Zirconia (ZrO₂) Ceramic Substrates, 100 × 100 mm

Price range: £70.99 through £210.99

Select an option to request a quote

Flat rate shipping £15

    Zirconia (ZrO₂) Ceramic Substrates – High Temperature Resistant, Insulating & Wear-Resistant

    Customization: Supports laser cutting and non-standard sizes

    Product Description:
    Key Specifications (Single-Sided Reference):
    Overview: This high-performance zirconia (ZrO₂) ceramic plate is designed for extreme environments. It offers exceptional thermal stability, maintaining its shape without softening at high temperatures. It is chemically inert with no metallic ion precipitation, making it a superior alternative to traditional silicon carbide materials.

    Technical Specifications:
    – Operating Temperature: 500-1000°C
    – Density: 6 g/cm³
    – Hardness (HV): 2200 kgf/mm²
    – Flexural Strength: 1100 MPa
    – Indentation Strength: 2500 MPa
    – Fracture Toughness: 11 MPa·m^(1/2)
    – Modulus of Elasticity: 200 GPa
    – Thermal Expansion: 10.5×10⁻⁶/°C
    – Heat Impact Resistance: Δ300°C
    – Resistivity: >10¹² Ω·cm

    Key Features:
    – Excellent Electrical Insulation
    – High Wear and Abrasion Resistance
    – Exceptional Chemical Stability
    – Laser Cuttable for Precise Custom Shapes

    Applications:
    – Laboratory equipment and experimental substrates
    – High-temperature kiln and furnace components
    – Precision insulating spacers
    – Industrial wear-resistant linings

    Option 1

    100 × 100 × 0.2 mm, White, 100 × 100 × 0.3 mm, White, 100 × 100 × 0.5 mm, Black, 100 × 100 × 0.5 mm, White, 100 × 100 × 1 mm, Black, 100 × 100 × 1 mm, White, 100 × 100 × 1.5 mm, Black, 100 × 100 × 1.5 mm, White, 100 × 100 × 10 mm, White, 100 × 100 × 2 mm, Black, 100 × 100 × 2 mm, White, 100 × 100 × 2.5 mm, White, 100 × 100 × 3 mm, Black, 100 × 100 × 3 mm, White, 100 × 100 × 4 mm, White, 100 × 100 × 5 mm, White, 100 × 100 × 6 mm, White, 100 × 100 × 7 mm, White, 100 × 100 × 8 mm, White, 100 × 100 × 9 mm, White
