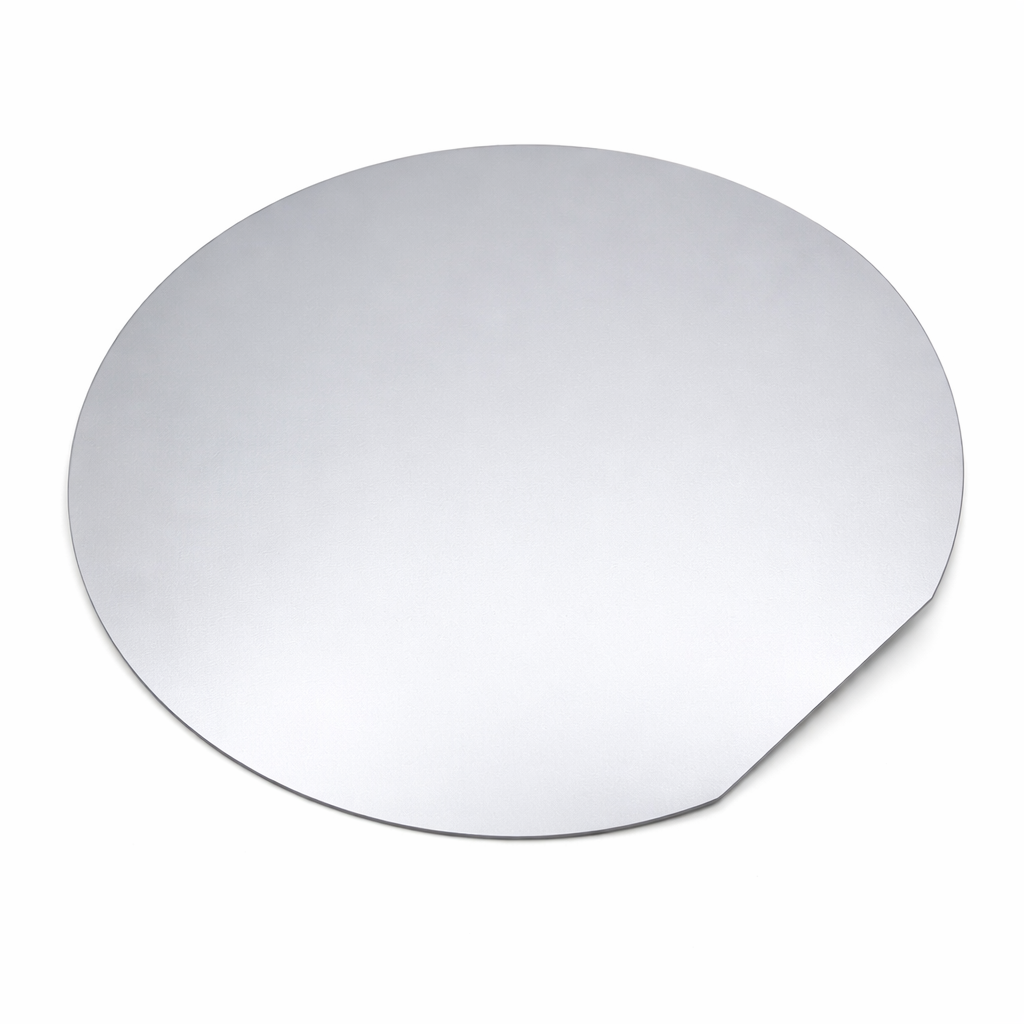

Silver-Coated Silicon Wafers (Ag/Cr on Si (100))
Ag-Coated Si

Silver-Coated Silicon Wafers (Ag/Cr on Si (100))

Price range: £190.99 through £706.99

Select an option to request a quote

Flat rate shipping £15

    Silver-Coated Silicon Wafers (Ag/Cr on Si (100))
    Overview
    Our silver-coated silicon wafers are fabricated using high-vacuum magnetron sputtering to ensure excellent film uniformity, high reflectivity, and clean surface morphology.

    A thin chromium (Cr) adhesion layer (5 nm) is deposited between the silicon wafer and the silver film to provide strong interfacial bonding while maintaining optimal optical performance.

    These wafers are ideal for optical research, plasmonic studies, SERS applications, and high-reflectivity device fabrication.

    Layer Structure
    Standard structure:
    Ag (Silver layer)
    Cr (5 nm adhesion layer)
    Si (100) wafer

    Silver Thickness Options
    Standard Ag thickness:
    100 nm Recommended
    200 nm Recommended
    500 nm
    Custom thickness available upon request.

    Adhesion Layer
    Standard adhesion layer: Cr (5 nm)
    This thickness provides sufficient adhesion while minimizing optical absorption, making it suitable for reflective and plasmonic applications.
    Cr (10 nm) available upon request for enhanced adhesion requirements.

    Wafer Specifications
    Standard configuration:
    Orientation: Si (100)
    Doping: N-type, 1–10 Ω·cm resistivity
    Surface finish: Single-side polished (SSP)
    Custom substrate specifications available upon request.

    Deposition Process
    High-vacuum magnetron sputtering
    Controlled thickness uniformity
    Clean-room compatible handling
    Each wafer is processed to maintain high surface quality and minimal contamination.

    Applications
    Optical reflectivity studies
    Surface-enhanced Raman spectroscopy (SERS)
    Plasmonics research
    Photonic device fabrication
    Mirror and reflective coating research
    Micro/nano-structured silver platforms

    Quality & Packaging
    Uniform film thickness control
    High surface cleanliness
    Protective packaging to reduce oxidation exposure
    Research-grade material quality

    Why Choose Our Ag/Cr on Si Wafers?
    High optical reflectivity
    Optimized 5 nm Cr adhesion layer
    Suitable for plasmonic and photonic research
    Competitive direct-manufacturer pricing

    Custom Orders
    We support:
    Custom wafer diameter
    Custom silver thickness
    Patterned silver wafers
    Alternative adhesion layers
    Contact us for academic pricing and technical consultation.

    Option 1

    12″ Si | 100 nm Ag, 2″ Si | 100 nm Ag, 2″ Si | 200 nm Ag, 2″ Si | 500 nm Ag, 4″ Si | 100 nm Ag, 4″ Si | 200 nm Ag, 4″ Si | 500 nm Ag, 6″ Si | 100 nm Ag, 6″ Si | 200 nm Ag, 6″ Si | 500 nm Ag, 8″ Si | 100 nm Ag, 8″ Si | 200 nm Ag, 8″ Si | 500 nm Ag
