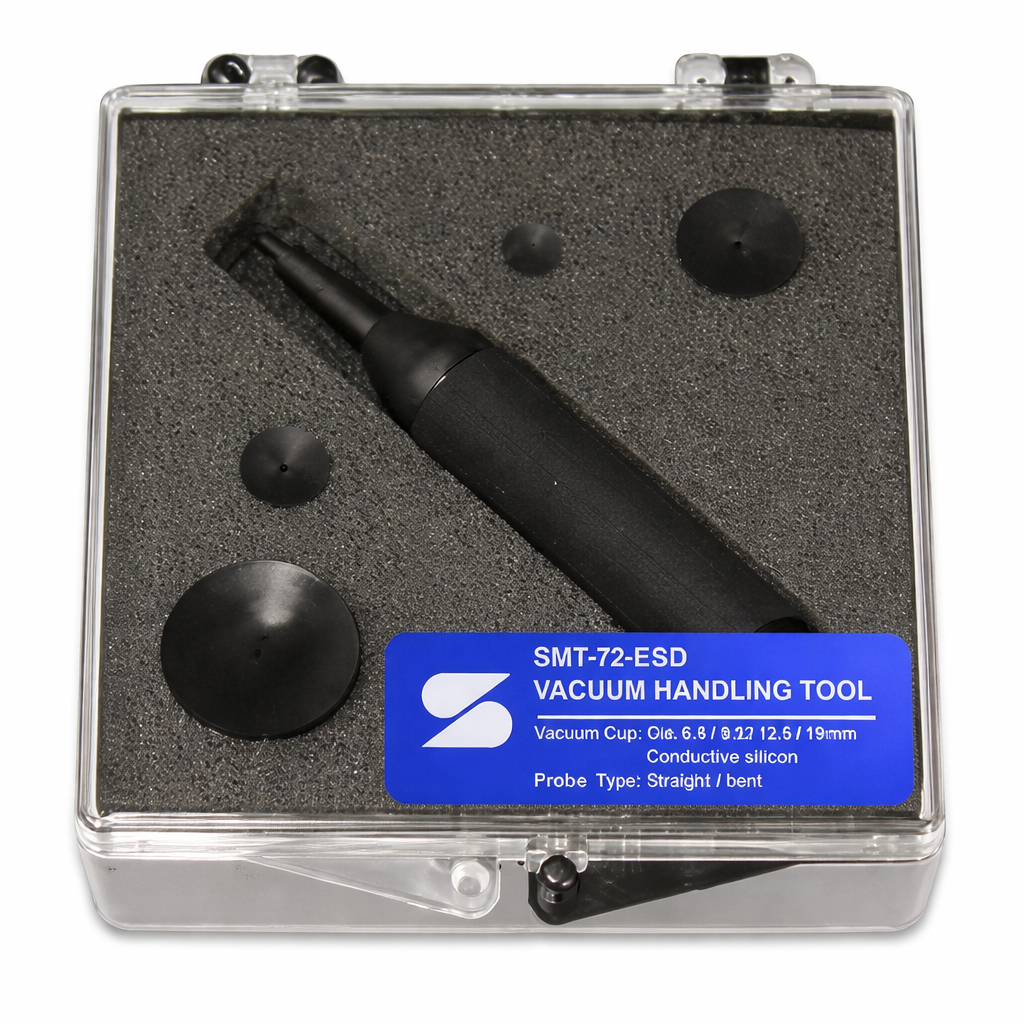

Manual Vacuum Suction Pen (SMT72-ESD)

Manual Vacuum Suction Pen (SMT72-ESD)

Application:
Designed for precision handling in laboratories and SMT assembly. Ideal for picking up electronic components, lenses, and chips without direct contact, preventing contamination and damage.

Key Features:
* Advanced Technology: Utilizes technology referencing US MTI standards with a unique suction cup structure for reliable handling.
* ESD Safe Material (Type B): The body is crafted from Black ESD High-Temperature Conductive Material (Silicon Rubber), offering superior anti-static protection compared to standard materials.
* Compact & Portable: Precision-machined pen structure (13mm x 72mm) is lightweight, safe, and easy to carry.
* Versatile Operation: Comes with both Straight and Bent probe types to access various working angles.
* Cost-Effective: Offers improved material quality and performance comparable to imported alternatives at a more accessible price point.

Key Specifications (Single-Sided Reference):
Model: SMT72-ESD
Body Material: ESD Silicone Rubber
Dimensions: Diameter 13mm x Length 72mm
Probe Types: Straight / Bent

Suction Cup Sizes & Reference Lifting Capacity:
* 6.4mm Cup: ~15g
* 9.5mm Cup: ~30g
* 12.5mm Cup: ~80g
* 19mm Cup: ~150g
