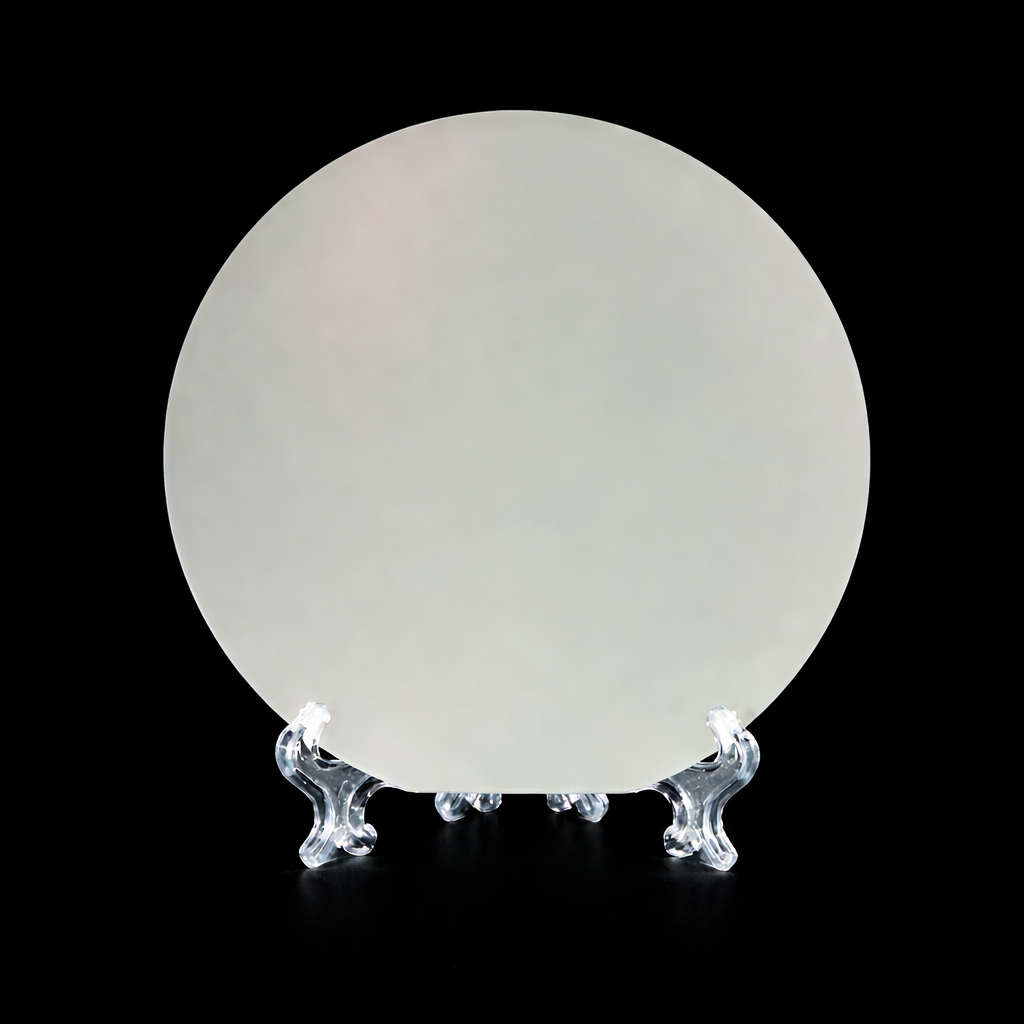

Lithium Niobate (LiNbO3) Single Crystal Wafer, 3″ × 0.5 mm
LiNbO₃

Lithium Niobate (LiNbO₃) Single Crystal Wafer, 3″ × 0.5 mm

Price range: £174.99 through £182.99

Select an option to request a quote

Flat rate shipping £15

    Standard Format: 3″ diameter (76.2 mm) × 0.5 mm circular wafer, X-cut, SSP. Industry-standard wafer format for SAW foundry and photonics fabrication.

    Lithium Niobate (LiNbO₃) Single Crystal Wafer

    Product Overview:
    Lithium Niobate (LiNbO₃) is a ferroelectric material that exhibits excellent electro-optic, nonlinear optical, and piezoelectric properties. It is widely used in surface acoustic wave (SAW) filters, optical modulators, phase modulators, and optical frequency doublers.

    Physical Properties:
    – Crystal Structure: Trigonal System
    – Lattice Constant: a = 5.148 Angstrom, c = 13.868 Angstrom
    – Density: 4.64 g/cm³
    – Melting Point: 1250 °C
    – Mohs Hardness: 5
    – Curie Temperature: 1142 °C
    – Growth Method: Czochralski (CZ)

    Standard Specifications:
    – Orientation Accuracy: miscut < 0.3°
    – Surface Roughness: Ra < 0.5 nm
    – Edge Orientation: Available upon request
    – Surface Polish: Single-Side or Double-Side Polished

    Option 1

    128° Y-cut, Double-Side Polished, 128° Y-cut, Single-Side Polished, 36° Y-cut, Double-Side Polished, 36° Y-cut, Single-Side Polished, 41° Y-cut, Double-Side Polished, 41° Y-cut, Single-Side Polished, 64° Y-cut, Double-Side Polished, 64° Y-cut, Single-Side Polished, X-cut, Double-Side Polished, X-cut, Single-Side Polished, Y-cut, Double-Side Polished, Y-cut, Single-Side Polished, Z-cut, Double-Side Polished, Z-cut, Single-Side Polished
