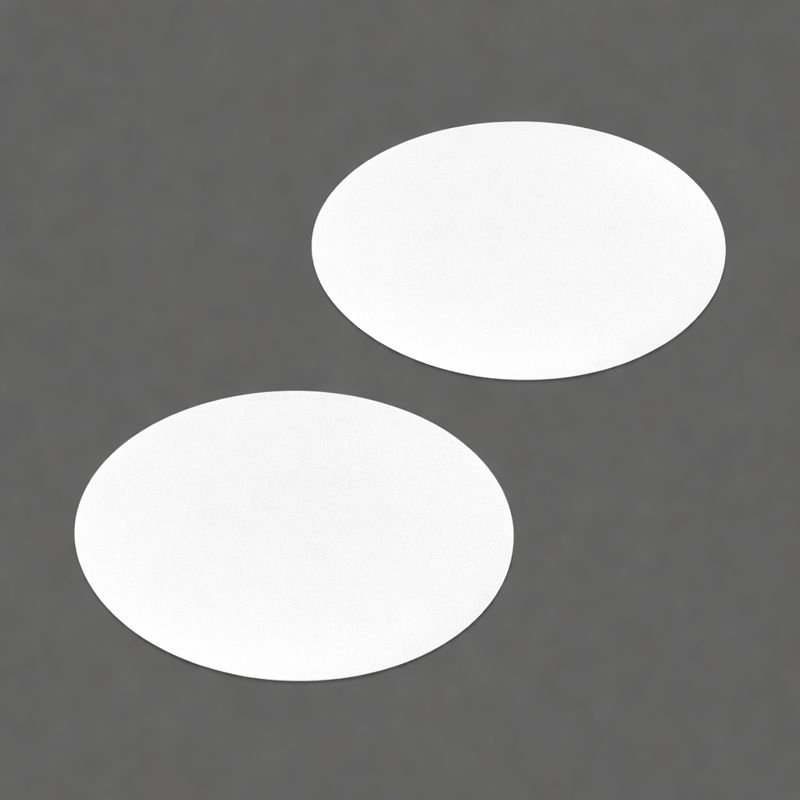

Lithium Aluminum Germanium Phosphate Solid Electrolyte Ceramic Pellet

Product: Lithium Aluminum Germanium Phosphate (LAGP) Solid Electrolyte Ceramic Pellet
Application: Solid Electrolyte Material for All-Solid-State or Hybrid Lithium Batteries
Product Overview: This LAGP solid electrolyte is synthesized for superior lithium-ion conductivity and structural integrity. Circular or square pellet forms can be customized upon request.

Key Specifications:
Chemical Formula: Li₁.₅Al₀.₅Ge₁.₅(PO₄)₃
Theoretical Density: 3.43 g/cm³
Shelf Life: 1 Year

Performance Metrics:
– Ionic Conductivity (25°C): >= 0.3 mS/cm (Tested via AC Impedance)
– Flexural Strength (Three-Point Bending): >= 100 MPa
– Measured Density: >= 3.258 g/cm³ (Tested via Displacement Method)
– Relative Density (Sintered Density / Theoretical Density): >= 95%

Dimensions & Appearance:
– Form: Circular or Square (upon request) Pellet, 300 µm Thickness (standard)
– Nominal Diameter/Side Length: 12 ± 0.1 mm
– Nominal Thickness: 300 ± 10 µm
– Appearance: White, uniform color (Visual Inspection)
– Main Phase: Matches PDF# 80-1924 characteristic peaks (Tested via XRD)
– Microscopic Features: No more than 3 pores at 20000x magnification (Tested via SEM)

Packaging Unit: Pellet/Sheet
